Honeywell Commercial MP953C1018 Pneumatic Coil Valve Actuator

The Pneumatic Coil Valve Actuator is built for dependable performance in commercial HVAC and industrial valve systems. The Honeywell MP953C1018 Pneumatic Coil Valve Actuator delivers precise, direct-acting control with a spring-return design for safe, fail-secure operation.

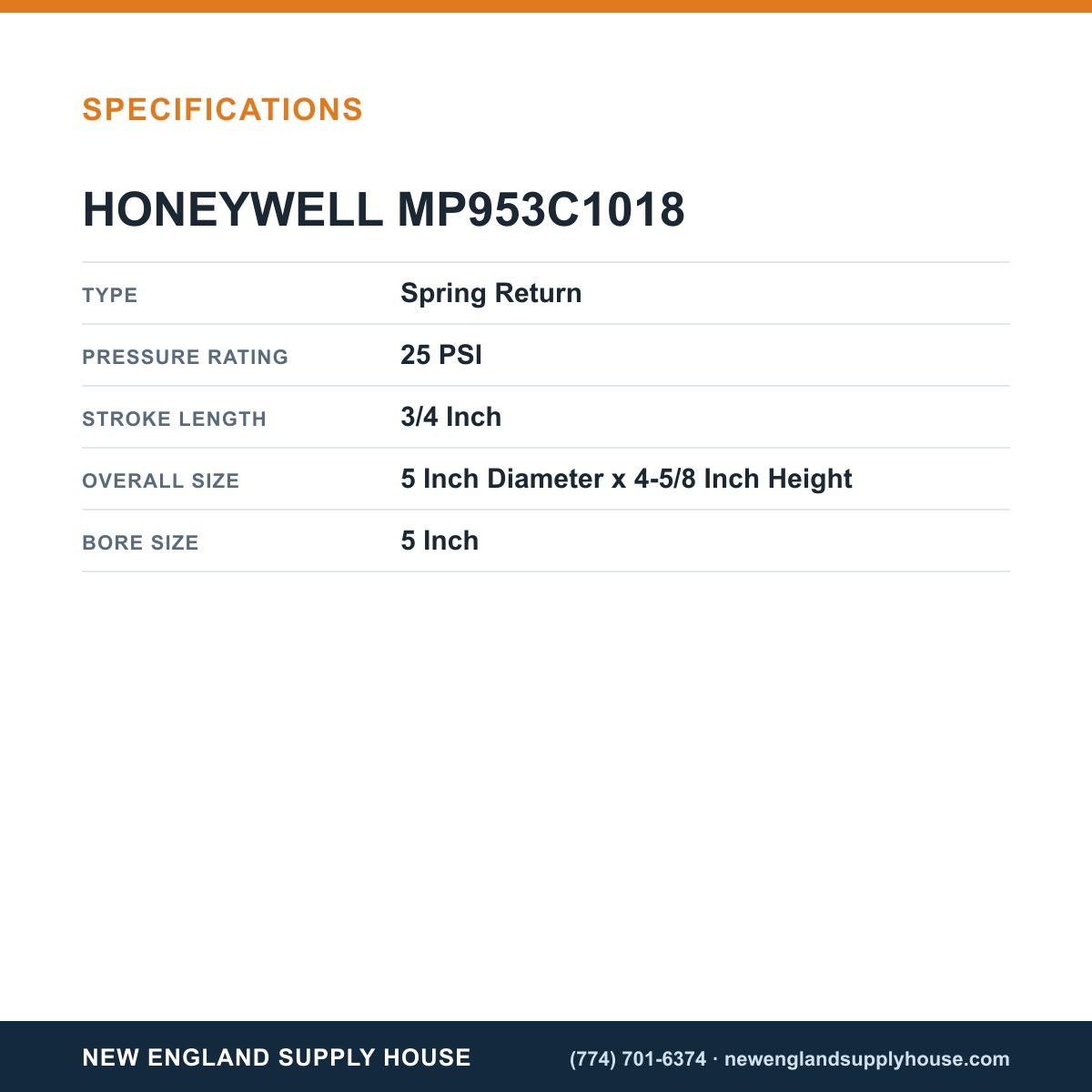

Key specifications include a 5 inch bore and a compact 5 inch diameter x 4-5/8 inch height, with a 3/4 inch stroke. This actuator handles up to 25 PSI, features a spring range of 8 to 12 PSI, and operates across -18 to 60 Deg C and 5 to 95% RH. Air connections are provided via 5/32 Inch OD dual-barbed fittings or 1/4 Inch OD tubing, and it is compatible with valves that use a bonnet size 1-3/8 Inch.

• Spring-return design for safe, fail-secure operation
• Direct-acting valve actuator for fast, precise actuation
• Bore size 5 Inch; overall size 5 Inch diameter x 4-5/8 Inch height
• Stroke length 3/4 Inch with consistent travel
• Pressure rating 25 PSI; compatible with 8–12 PSI spring range
• Wide operating range: -18 to 60 Deg C and 5–95% RH
• Flexible air connections: 5/32 Inch OD dual-barbed or 1/4 Inch OD tubing
• Bonnet compatibility: fits valves with bonnet size 1-3/8 Inch
