Honeywell Commercial MP953C1026 Pneumatic Coil Valve Actuator

The Honeywell MP953C1026 Pneumatic Coil Valve Actuator is a Spring Return, direct-acting device engineered for precise valve control in industrial systems. With a 5 inch bore and an overall height of 4-5/8 inches, this actuator delivers reliable 3/4 inch stroke for dependable valve operation. It supports up to 25 PSI operating pressure and a flexible spring range from 4 to 11 PSI, making it suitable for HVAC, process, and plant automation applications.

Designed for robustness in challenging environments, the actuator operates from -18 to 60°C and 5 to 95% RH. It accepts different air connections: 5/32 inch OD dual barbed fittings and 1/4 inch OD plastic tubing, enabling quick setup on valves with bonnet size 1-3/8 inch. The MP953C1026 is a direct-acting coil actuator ideal for valves where rapid response and solid reliability are required.

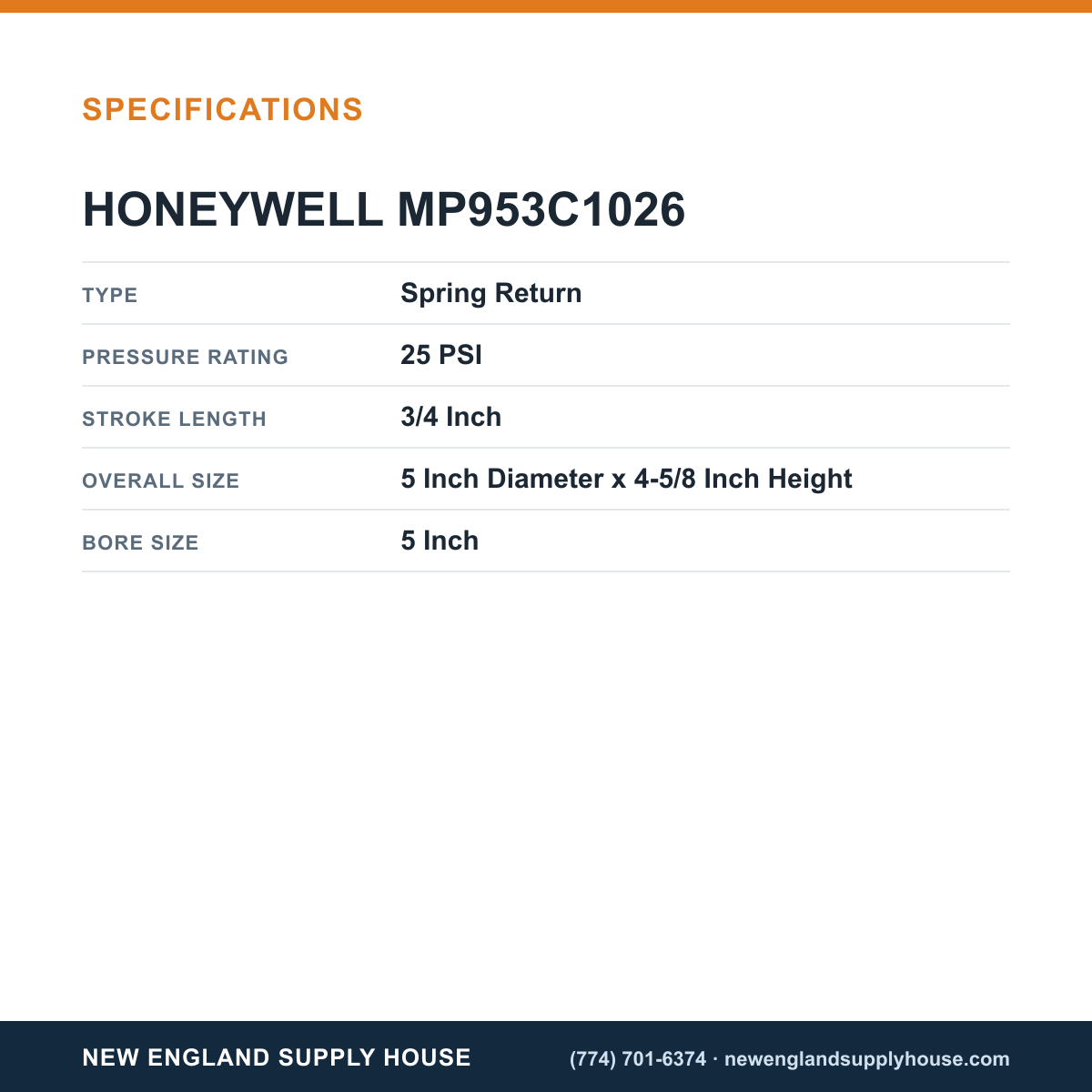

• Type: Spring Return, direct-acting
• Bore/Stroke: 5 inch bore, 3/4 inch stroke
• Pressure rating: 25 PSI operating, 4–11 PSI spring range
• Environment: -18 to 60°C, 5–95% RH
• Air connections: 5/32" OD dual barbed, 1/4" OD tubing
• Bonnet size: 1-3/8 inch
