Honeywell Commercial MP953C1067 Pneumatic Coil Valve Actuator

The Pneumatic Coil Valve Actuator MP953C1067 from Honeywell offers dependable valve control for demanding environments. This Spring Return, Direct Acting actuator features an 8 inch bore and an overall size of 8 inch diameter by 6-1/2 inch height, with a 3/4 inch stroke to meet precise movement requirements.

Designed for robust performance, it operates at a 25 PSI pressure rating with a spring range of 2–7 PSI. It withstands -18 to 60°C and 5–95% RH, and connects via 5/32" OD dual barbed fittings or 1/4" OD plastic tubing. It fits valves with bonnet size 1-3/8" and ships with the 311851-062 stem extension assembly for easy installation.

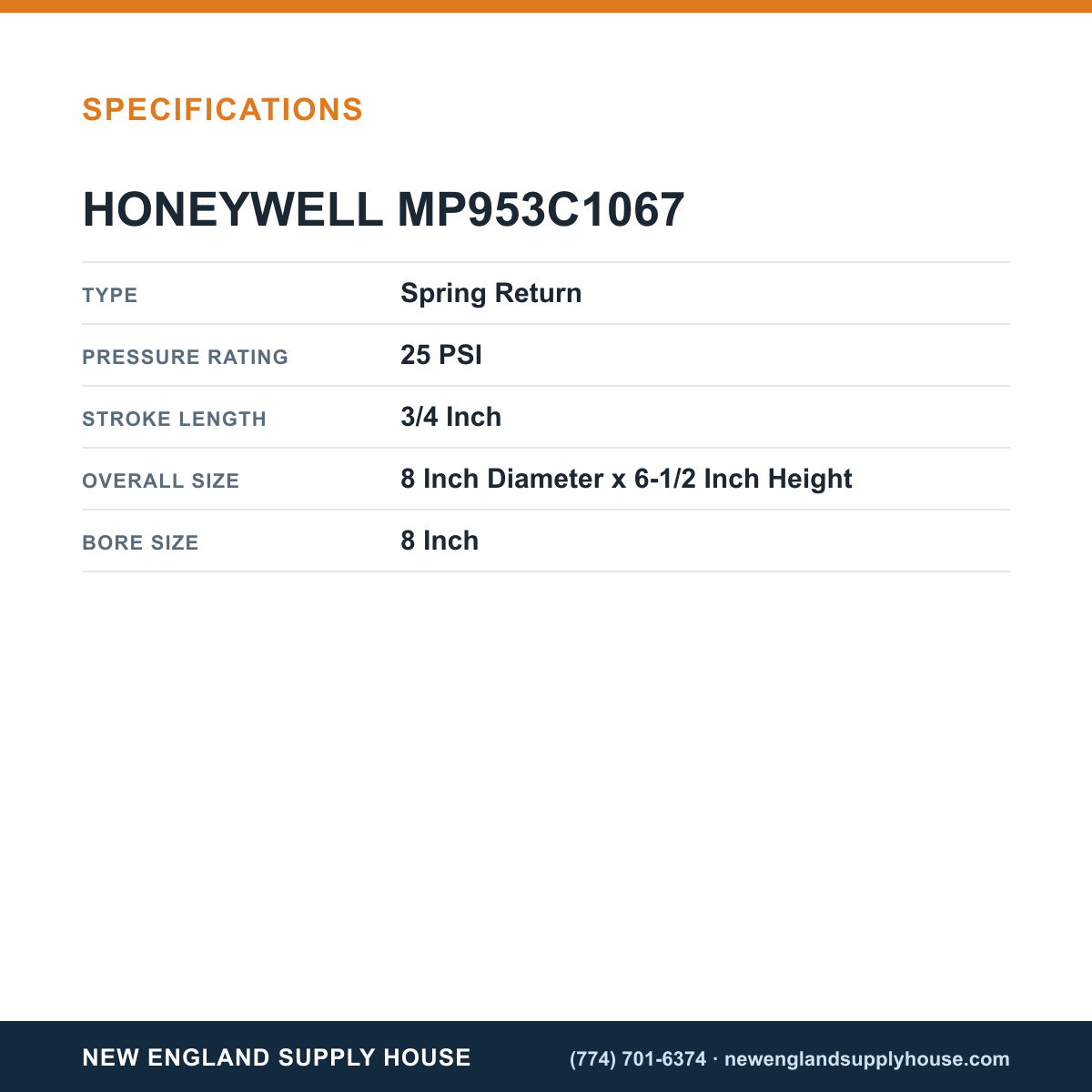

Key features

• Actuator type: Valve actuator with Spring Return and Direct Acting action
• Bore size: 8 inches
• Stroke: 3/4 inch
• Overall size: 8" diameter x 6-1/2" height
• Pressure rating: 25 PSI
• Spring range: 2–7 PSI
• Temperature range: -18 to 60°C
• Humidity: 5–95% RH
• Air connections: 5/32" OD dual barbed; 1/4" OD tubing
• Bonnet compatibility: 1-3/8"
• Includes: Stem extension assembly 311851-062
