Honeywell Commercial MP953C1083 Pneumatic Coil Valve Actuator

Pneumatic Coil Valve Actuator — the Honeywell Commercial MP953C1083 Pneumatic Coil Valve Actuator delivers rugged, dependable direct-acting control for industrial valves. This Spring Return unit features an 8 inch bore, an 8 inch diameter footprint and 6-1/2 inch height, with a 3/4 inch stroke for precise actuation.

Designed for efficiency in harsh environments, it operates at a 25 PSI pressure rating, with a spring range of 4 to 11 PSI. It withstands temperatures from -18 to 60 C and humidity levels from 5 to 95% RH. The actuator uses a 5/32 inch OD dual barbed air connection and a 1/4 inch OD plastic tubing, and is intended for valves with bonnet size 1-3/8 inch. The package includes stem extension assembly 311851-062.

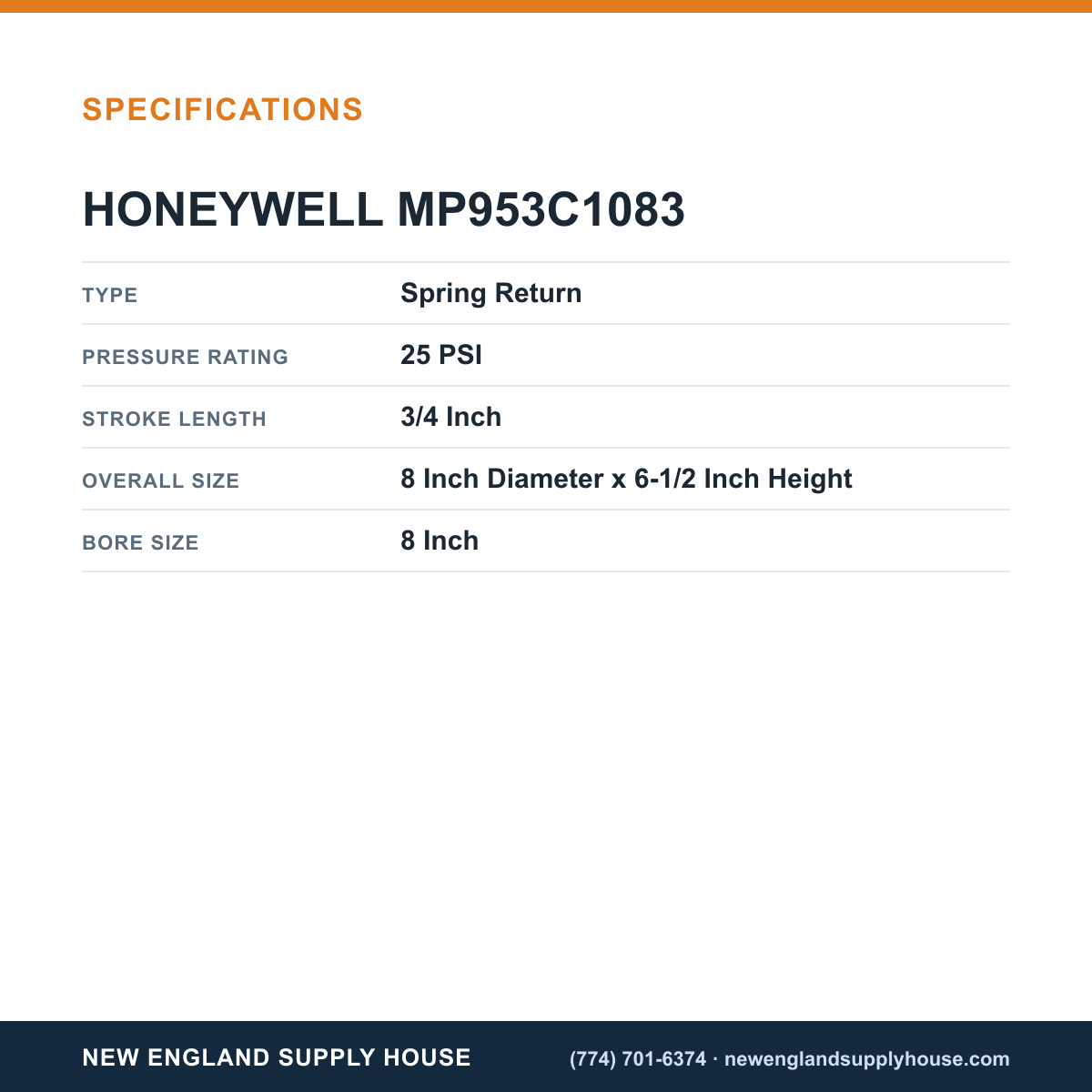

• Actuator type: Direct Acting
• Spring return: Yes
• Bore size: 8 Inch
• Stroke length: 3/4 Inch
• Overall size: 8 Inch Diameter x 6-1/2 Inch Height
• Pressure rating: 25 PSI
• Spring range: 4–11 PSI
• Temperature range: -18 to 60 C
• Humidity range: 5–95% RH
• Air connections: 5/32 Inch OD dual barbed; 1/4 Inch OD plastic tubing
• Bonnet size: 1-3/8 Inch
• Includes: Stem Extension Assembly 311851-062
