Honeywell Commercial MP953D1131 Pneumatic Coil Valve Actuator

Pneumatic Coil Valve Actuator for industrial valve automation, specifically the Honeywell MP953D1131, delivers reliable control for commercial applications. This Spring Return actuator features a 7-1/8 inch bore and an overall size of 7-1/8 inch diameter by 5-5/8 inch height, with a 3/4 inch stroke to precisely position valves in demanding environments.

Designed for robust performance, the MP953D1131 operates at a 25 PSI air supply with a spring range of 4 to 11 PSI, and its reverse-acting action provides fail-safe valve actuation when pressure is removed. This makes it ideal for HVAC zoning, process control, and other automated valve applications.

Built to endure harsh conditions, it fits valves with bonnet size 1-3/8 inch and offers flexible connections: 5/32 inch outer diameter dual barbed fittings and 1/4 inch outer diameter plastic tubing. It performs reliably across a wide temperature span (-18 to 60 C) and humidity range (5 to 95% RH).

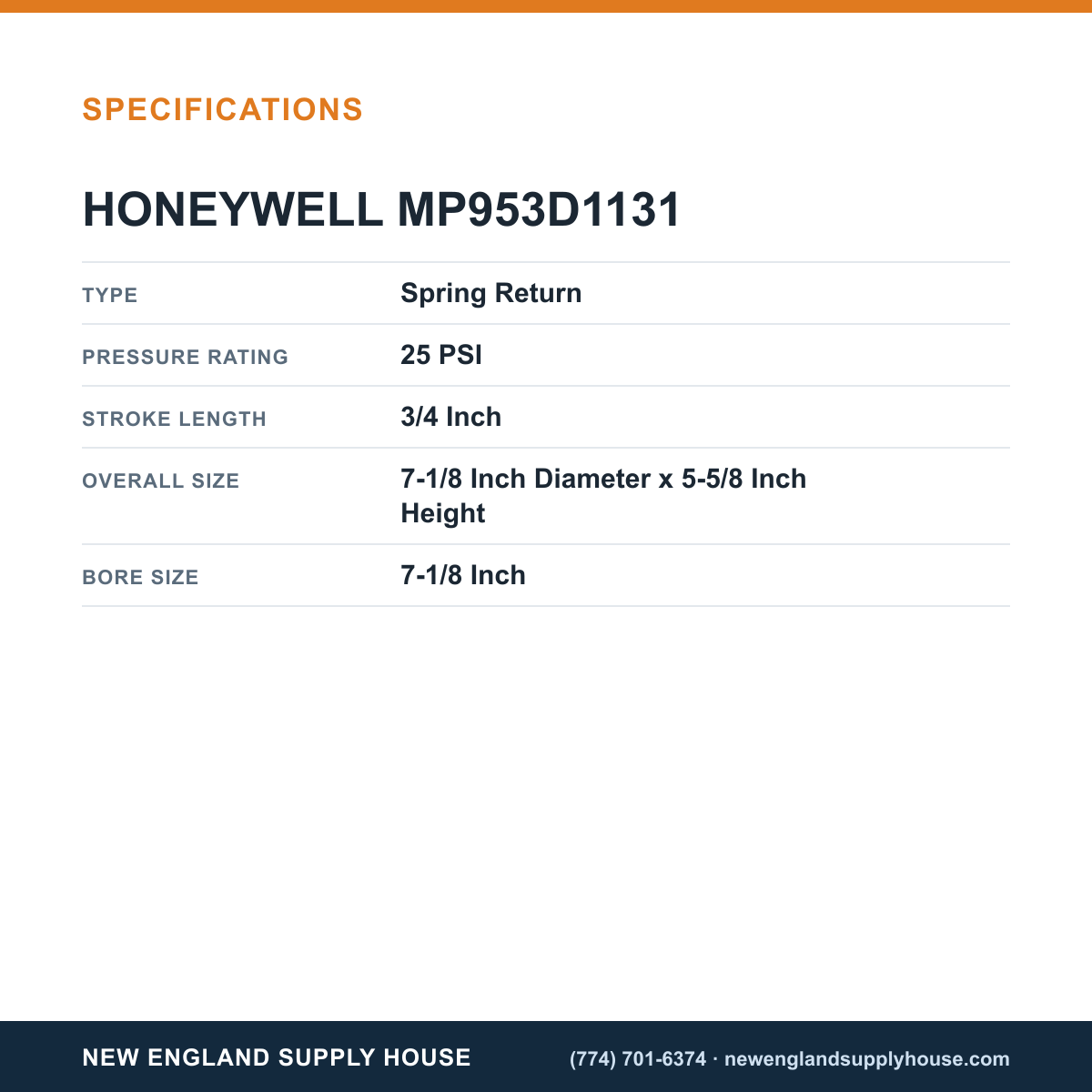

• Actuator Type: Valve
• Action: Reverse Acting
• Bore & Stroke: 7-1/8 inch bore, 3/4 inch stroke
• Pressure Rating: 25 PSI; Spring range 4–11 PSI
• Air Connections: 5/32 inch OD dual barbed fittings; 1/4 inch OD tubing
• Environmental: -18 to 60 C; 5–95% RH
• Bonnet Size: 1-3/8 inch
