Honeywell Commercial MS4105A1030 Damper Actuator

Honeywell Commercial MS4105A1030 Damper Actuator

$352.48 USD
$352.48 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

190265

View full details

The Honeywell MS4105A1030 Damper Actuator is a high-performance SPST, 2-Position, direct-coupled actuator designed for HVAC systems. It features spring-return operation and a wide voltage range of 100–250 VAC, 50/60 Hz, delivering reliable actuation with 44 in-lb of torque and a 95° rotation. The enclosure is NEMA 2 and IP54 rated for durable, protected operation, and the plenum-rated plastic body stands up to challenging environments. A 3/8" to 5/8" shaft diameter accepts common damper shafts, and it ships with a mounting bracket and a self-centering shaft adapter for fast, secure installation.

  • Voltage / Power: 100–250 VAC, 50/60 Hz; Power Rating 6/9 VA
  • Operation: SPST, 2-Position with Spring Return
  • Mechanical: Torque 44 in-lb; Rotation 95°; Shaft 3/8"–5/8"
  • Enclosure: NEMA 2 / IP54; Body: Plenum-rated plastic
  • Connections & Accessories: Screw terminal; Includes mounting bracket and self-centering shaft adapter
  • Environmental: Operating temp -22 to 149°F; Application: HVAC System

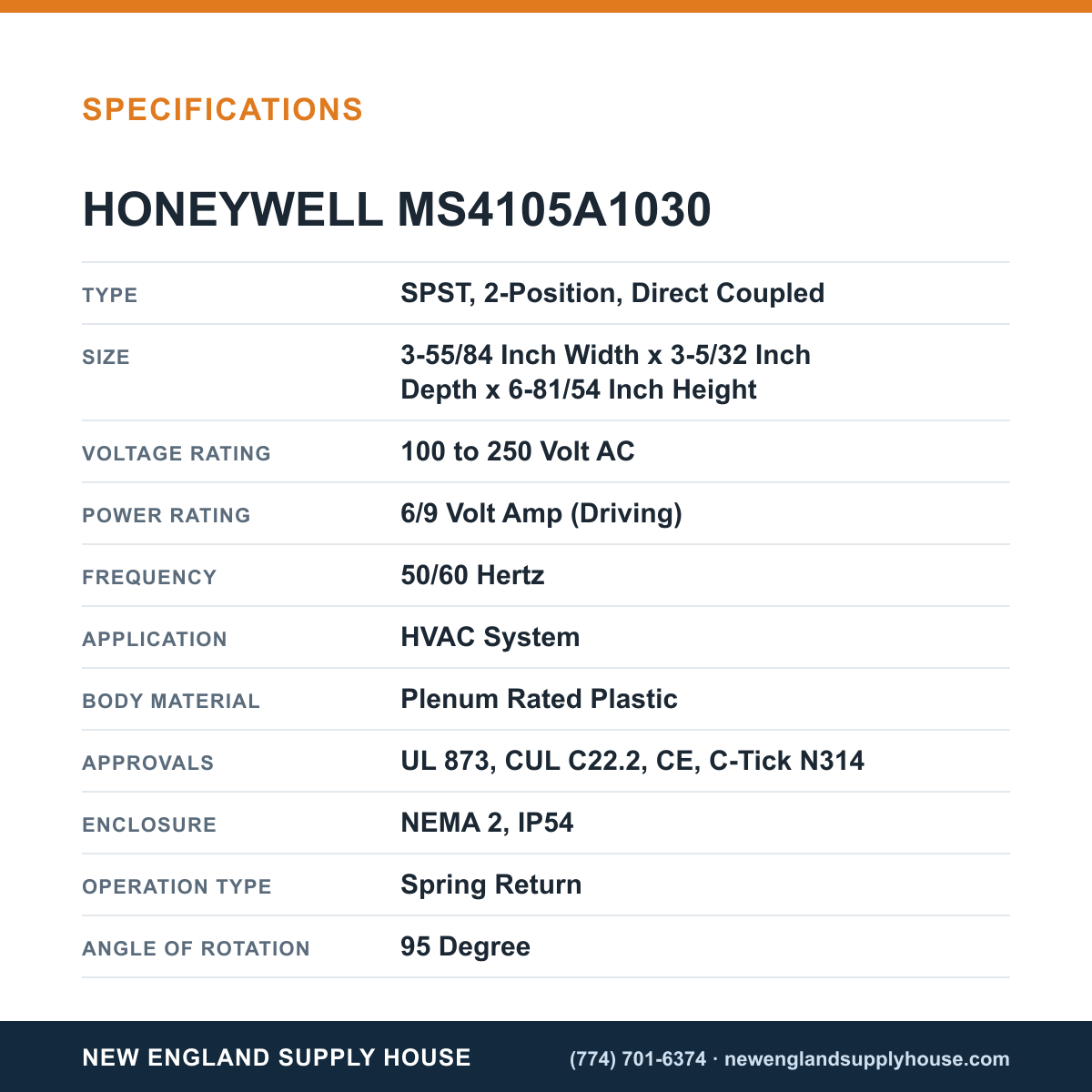

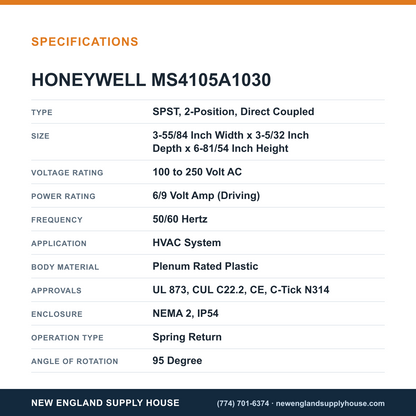

Specifications

TypeSPST, 2-Position, Direct Coupled
Size3-55/84 Inch Width x 3-5/32 Inch Depth x 6-81/54 Inch Height
Voltage Rating100 to 250 Volt AC
Power Rating6/9 Volt Amp (Driving)
Frequency50/60 Hertz
ApplicationHVAC System
Body MaterialPlenum Rated Plastic
ApprovalsUL 873, CUL C22.2, CE, C-Tick N314
EnclosureNEMA 2, IP54
Operation TypeSpring Return
Angle of Rotation95 Degree
Torque44 Inch-Pound
Shaft Diameter3/8 to 5/8 Inch
Operating Temperature-22 to 149 Deg F (Ambient)
Max AC Voltage250 Volt
Minimum Ac Voltage100 Volt
