Honeywell Commercial MS4120F1006 Direct Coupled Actuator

The Direct Coupled Actuator from Honeywell, the MS4120F1006, is a fast-acting Direct Coupled actuator ideal for fire and smoke control. This SPST, 2-position device features spring return with a manual crank for reliable override and operates on 120 V AC for quick, decisive actuation.

Designed for demanding environments, it delivers 175 in-lb of torque across a 95-degree rotation with a rugged aluminum body. The enclosure meets NEMA 2 and IP54 standards, providing solid protection in challenging installations. With a wide operating temperature range of -40 to 130 F and a robust 40-inch non-stick jacketed supply cable, this actuator is built to perform where reliability matters most.

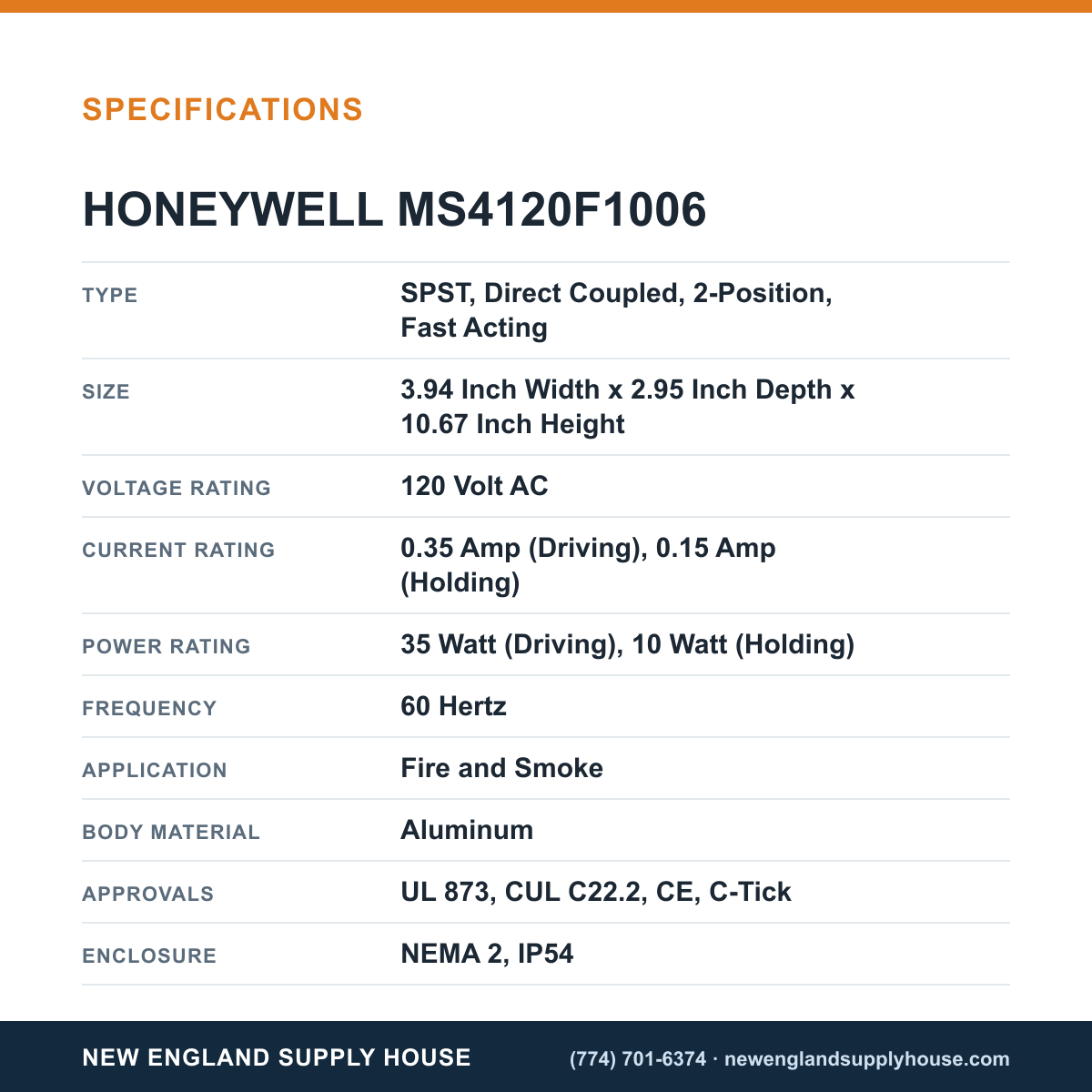

• Direct Coupled, SPST, 2-position, fast-acting
• Voltage: 120 VAC; Current: 0.35 A driving / 0.15 A holding; Power: 35 W driving / 10 W holding
• Torque: 175 in-lb; Travel: 95 degrees
• Enclosure: NEMA 2, IP54; Material: Aluminum
• Operating temp: -40 to 130 F; Supply cable: 40-inch non-stick jacketed
• Shaft diameter: 3/8 to 1.06 inches; Timing: 15 seconds
• Manual crank for override; Certifications: UL 873, CUL C22.2, CE, C-Tick
