Honeywell Commercial MS7510A2206 Damper Actuator

The Honeywell MS7510A2206 Damper Actuator is a rugged HVAC damper actuator that delivers precise ON/OFF control with SPDT switching for direct-coupled, floating operation. With spring-return action and a manual crank, it ensures quick, reliable damper positioning across a 95° swing in demanding environments.

This unit is designed to stand up to commercial use, featuring a durable aluminum body and a NEMA 2 enclosure to protect the mechanism from dust and moisture while operating in temperatures from -40 to 140 F.

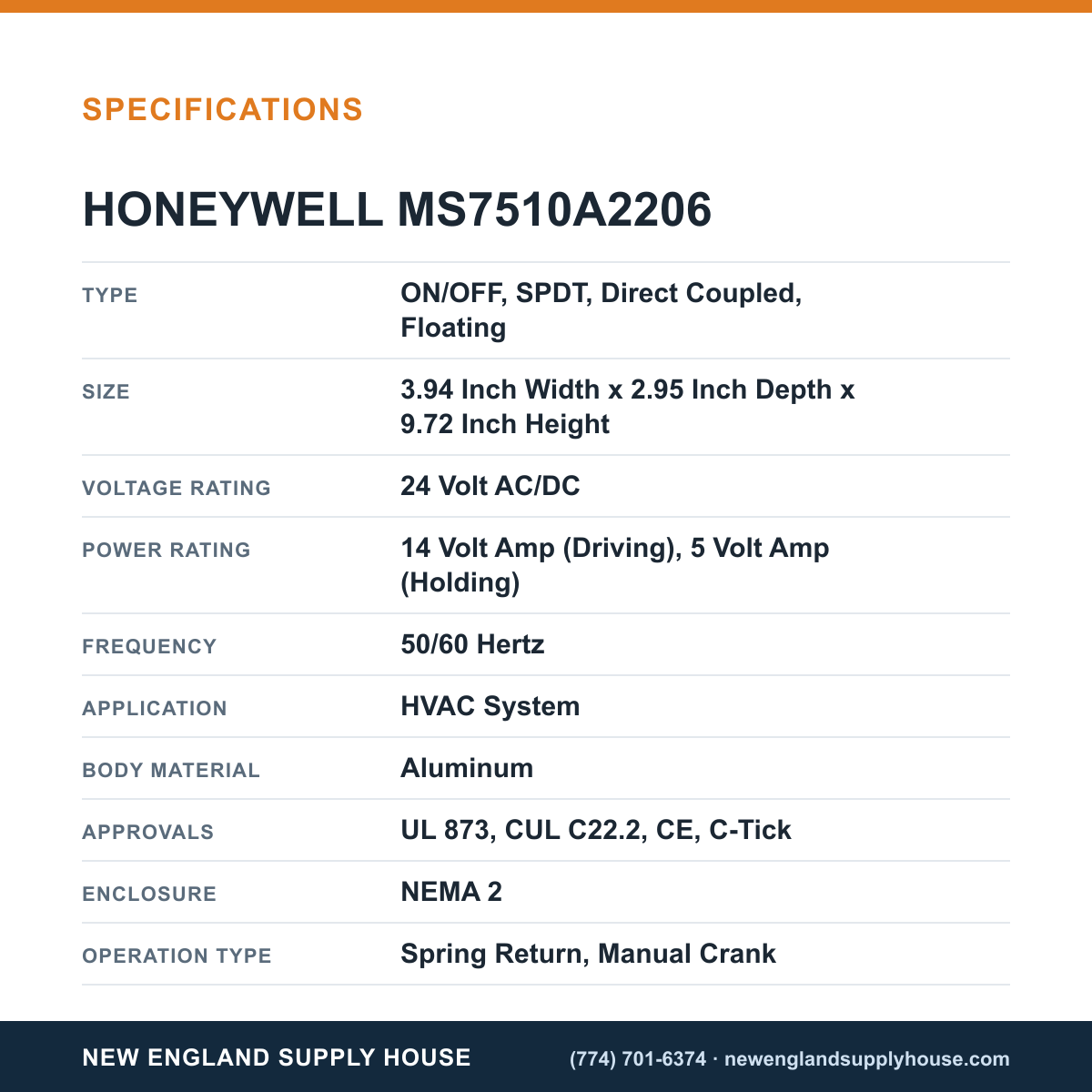

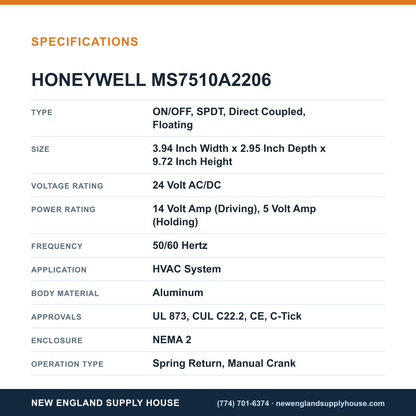

• Type: ON/OFF, SPDT, Direct Coupled, Floating
• Operation: Spring Return, Manual Crank
• Voltage: 24 V AC/DC (max 24 V)
• Power: 14 VA driving, 5 VA holding
• Torque/Angle: 88 in-lb, 95° rotation
• Enclosure/Body: NEMA 2, Aluminum
• Control: 2–10 VDC signal, enclosed screw terminal strip
• Timing/Status: 20-second response, includes two auxiliary switches
• Listings: UL 873, CUL C22.2, CE, C-Tick
• Application: HVAC System
• Shaft: 3/8" to 1.06" diameter
• Operating Temp: -40 to 140°F

Designed for seamless HVAC system integration, this damper actuator provides reliable performance and easy wiring, making it a strong choice for commercial climate control.
