Honeywell Commercial MS7510H2209 Damper Actuator

Introducing the Honeywell Commercial MS7510H2209 Damper Actuator, an ON/OFF, SPDT, direct-coupled damper actuator with spring return for precise HVAC control. This unit operates on 24V AC/DC and features a 95-degree rotation housed in a rugged aluminum enclosure built for commercial environments.

Designed for reliable, fast response in modern HVAC systems, it delivers 88 in-lb of torque and a 20-second operating cycle. The NEMA 2 enclosure, broad operating temperature of -40 to 140 F, and enclosed screw terminal connections ensure dependable performance from cold to hot, indoors or outdoors where permitted.

Control flexibility is built in with a 2-10 VDC control signal range, 50/60 Hz compatibility, and separate auxiliary switches for signaling or fault indication. Approved for safety and compliance with UL 873, CE, CUL, and C-Tick.

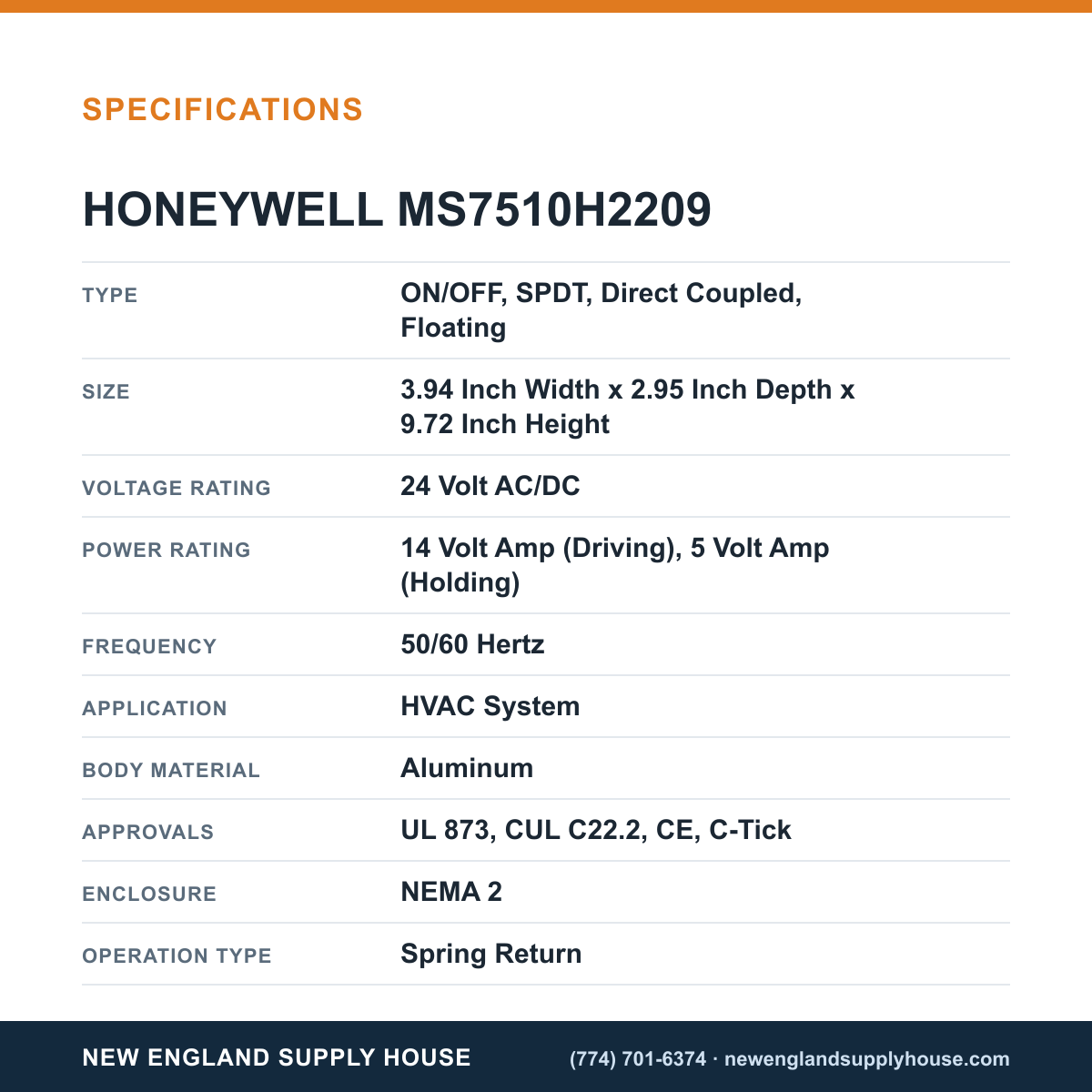

• Type: ON/OFF, SPDT, Direct-Coupled, Spring Return
• Voltage and power: 24V AC/DC; Driving 14 VA, Holding 5 VA
• Torque and motion: 88 in-lb; 95° rotation
• Enclosure and build: Aluminum body; NEMA 2 rating
• Connections: Enclosed screw terminal strip; Control: 2-10 VDC
• Timing and switches: 20-second actuation; Includes two auxiliary switches
