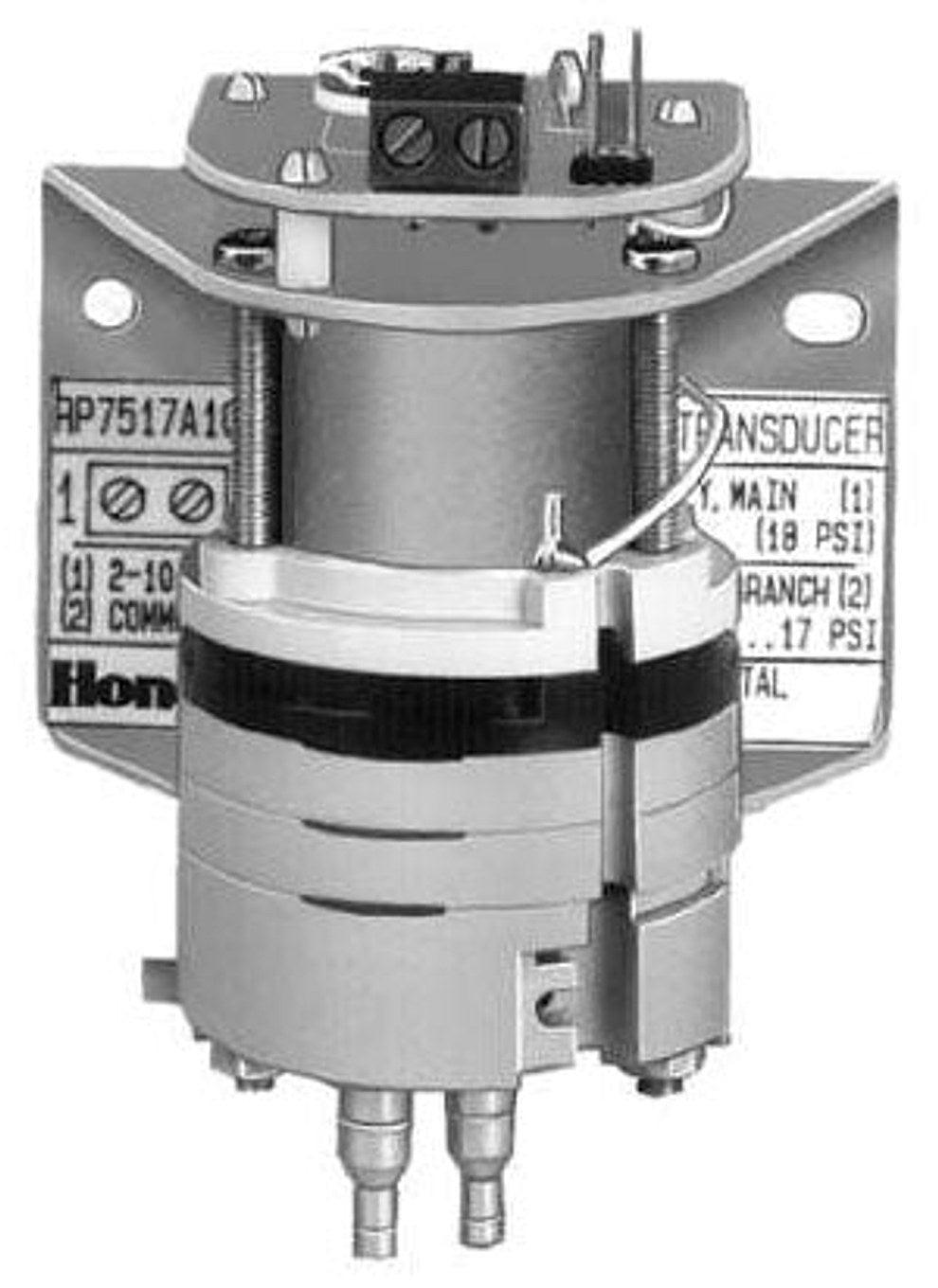

Honeywell Commercial RP7517A1017 Pneumatic Transducer

Honeywell Commercial RP7517A1017 Pneumatic Transducer is a precise direct-action pneumatic transducer designed for electronic/pneumatic control systems. It accepts a 2 to 10 Volt DC input and produces a proportional output of 18 PSI at 12 Volt DC (16 PSI at 11 Volt DC nominal high end), with a 0.5 PSI nominal low end for tight control.

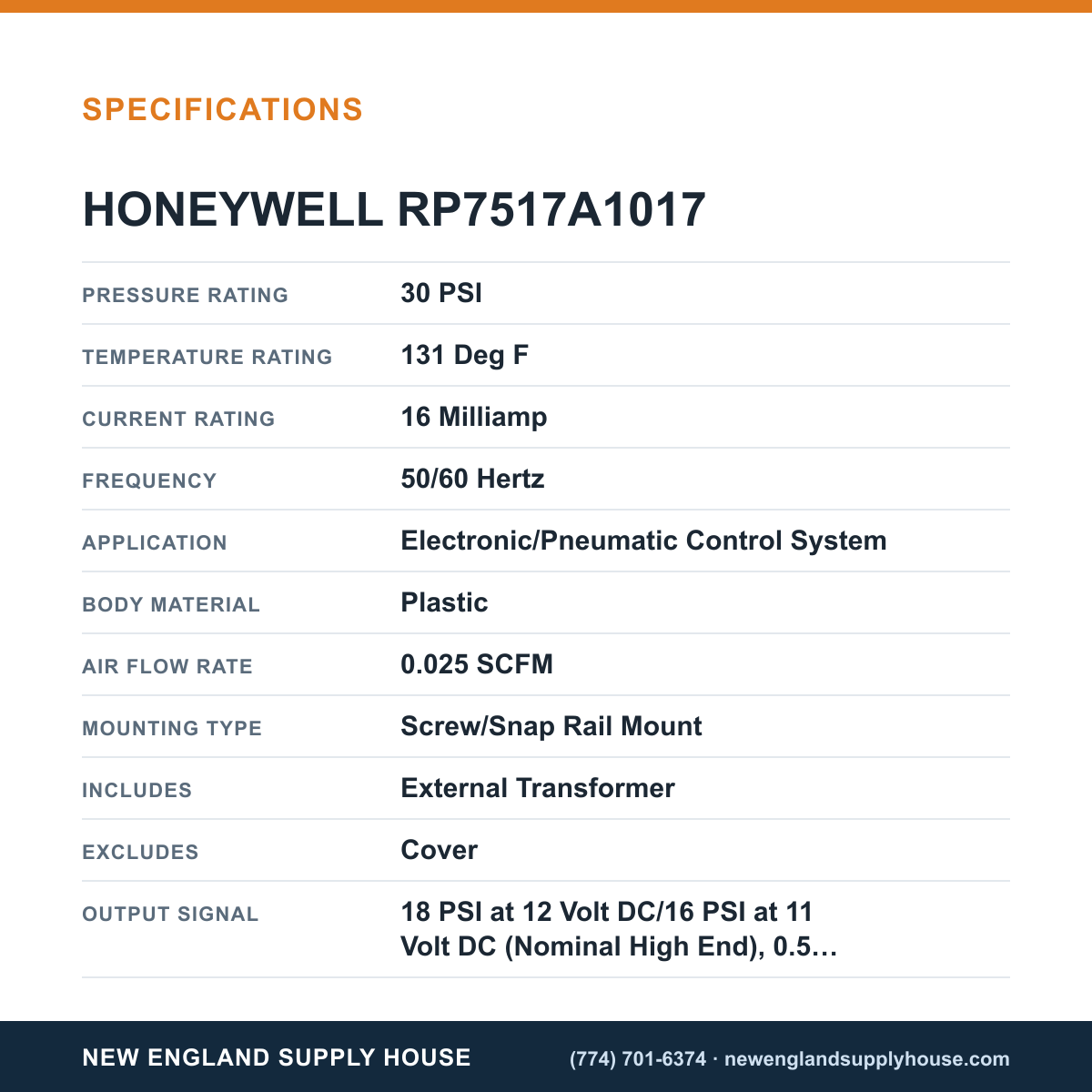

• Direct-action transducer: reliable signaling for electronic/pneumatic control systems.
• Input/output specs: 2–10 VDC input; 18 PSI at 12 VDC (16 PSI at 11 VDC high end); 0.5 PSI low-end accuracy.
• Air connections: 1/4 in or 5/32 in OD dual barb tubing for flexible installation.
• Electrical & environment: 16 mA current; 50/60 Hz; 22–14 AWG wiring; humidity 5–95% RH; temperature rating 131°F; pressure rating 30 PSI.
• Physical & mounting: plastic body; screw/snap rail mounting; dimensions 2-1/16" W × 1-7/8" D × 3-3/8" H.
• Includes: external transformer included; cover not included.
• Ideal applications: suitable for electronic/pneumatic control systems requiring precise pressure signaling.
