Honeywell Commercial T775M2006 Electronic Remote Temperature Controller

Honeywell Commercial T775M2006 Electronic Remote Temperature Controller delivers precise remote temperature control for HVAC systems, boilers, and chillers. This standalone, modulating controller uses a 1/4-inch diameter x 2-inch length bulb and supports both heating and cooling applications.

Operating ranges extend from -40 to 125 Deg F at 50 Hz and -40 to 140 Deg F at 60 Hz, with a wide setpoint span of -40 to 248 Deg F and a differential temperature rating of 1 to 150 Deg F. The unit provides versatile contact ratings for various voltages and loads, suitable for demanding commercial environments.

Designed for conduit connections in a NEMA 1 enclosure, it carries UL (Canada and US), CUL, CE, and C-Tick approvals to ensure safe, compliant operation. Key specifications include two sensor inputs, a 1097 Ohm PTC sensor at 77 Deg F, and a maximum sensor distance of up to 1000 feet. The controller ships with the 50021579-001 sensor for immediate setup.

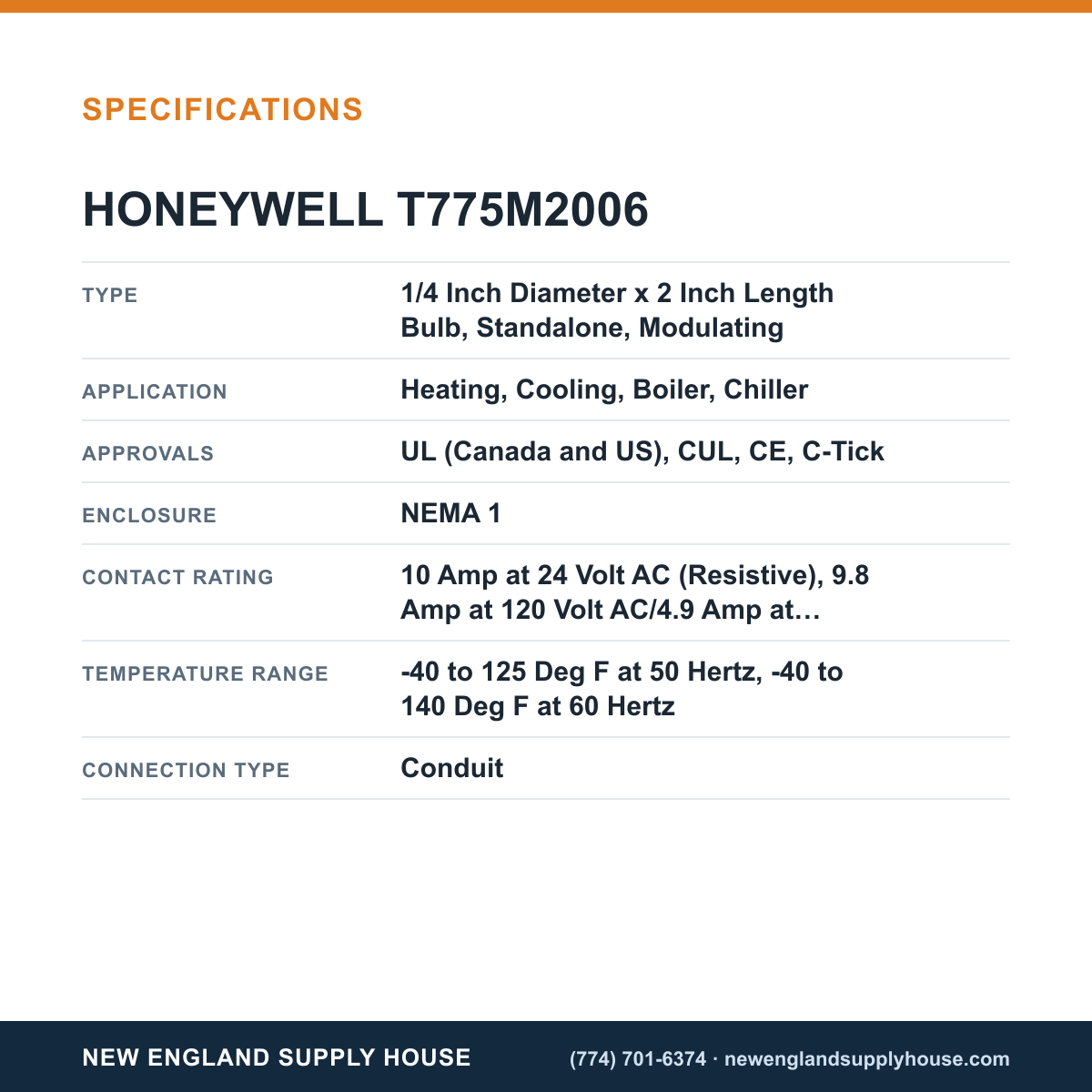

• Modulating electronic remote temperature control for heating, cooling, boiler, and chiller applications
• Bulb: 1/4" diameter x 2" length with two sensor inputs
• Setpoint range: -40 to 248 Deg F; differential: 1 to 150 Deg F
• Conduit connection; NEMA 1 enclosure; UL/CUL/CE/C-Tick approvals
• Includes 50021579-001 sensor; remote sensing up to 1000 ft
