Honeywell Commercial T775R2001 Electronic Remote Temperature Controller

Electronic Remote Temperature Controller, Honeywell T775R2001, is designed for precise remote temperature management across heating, cooling, boiler, and chiller applications. This standalone, modulating controller provides reliable sensing and control with four SPDT contacts for flexible wiring and a conduit connection.

With a wide operating range (-40 to 125 Deg F at 50 Hz, -40 to 140 Deg F at 60 Hz) and a setpoint range of -40 to 248 Deg F, it handles evolving conditions in commercial environments. The unit supports two sensor inputs using 1097 Ohm PTC sensors at 77 Deg F and can monitor distances up to 1000 feet from the sensor.

Encased in a NEMA 1 enclosure, it is UL (Canada and US), CUL, CE, and C-Tick approved for reliable rooftop and indoor installations. The controller is rated for various loads and voltages, including 10 Amp at 24V AC (Resistive); 9.8 A at 120V AC / 4.9 A at 240V AC (Full Load); 58.8 A at 120V AC / 29.4 A at 240V AC (Locked Rotor); 125 VA pilot duty; and 1/2 HP at 120/240V AC.

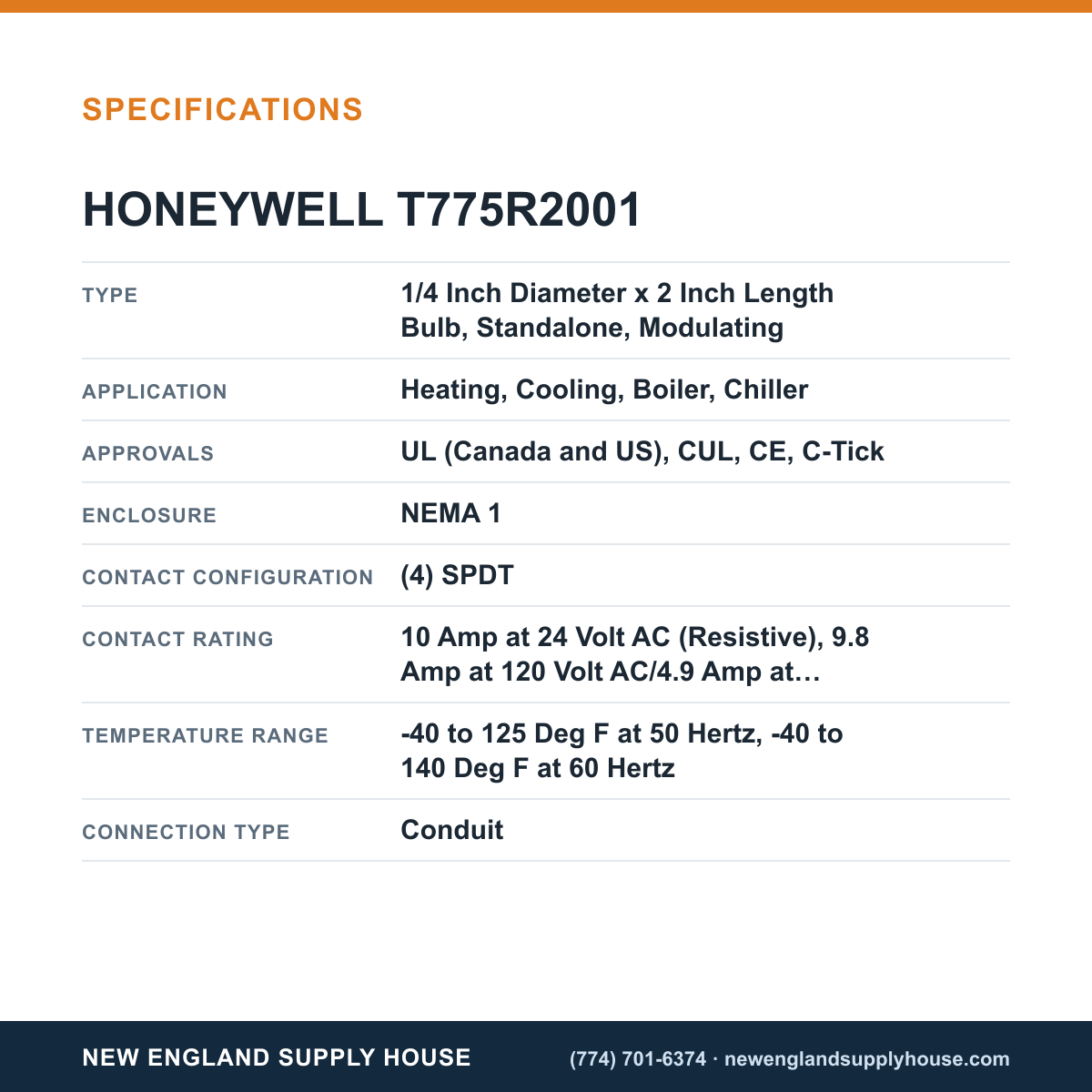

• Type: Standalone, Modulating
• Contacts: 4 SPDT
• Enclosure: NEMA 1; Conduit connection
• Setpoint: -40 to 248 Deg F
• Temperature range: -40 to 125 Deg F (50 Hz); -40 to 140 Deg F (60 Hz)
• Sensors: 2 inputs; includes (2) 50021579-001 sensors; 1097 Ω PTC at 77 Deg F
• Max sensor distance: 1000 ft
• Approvals: UL, CUL, CE, C-Tick
