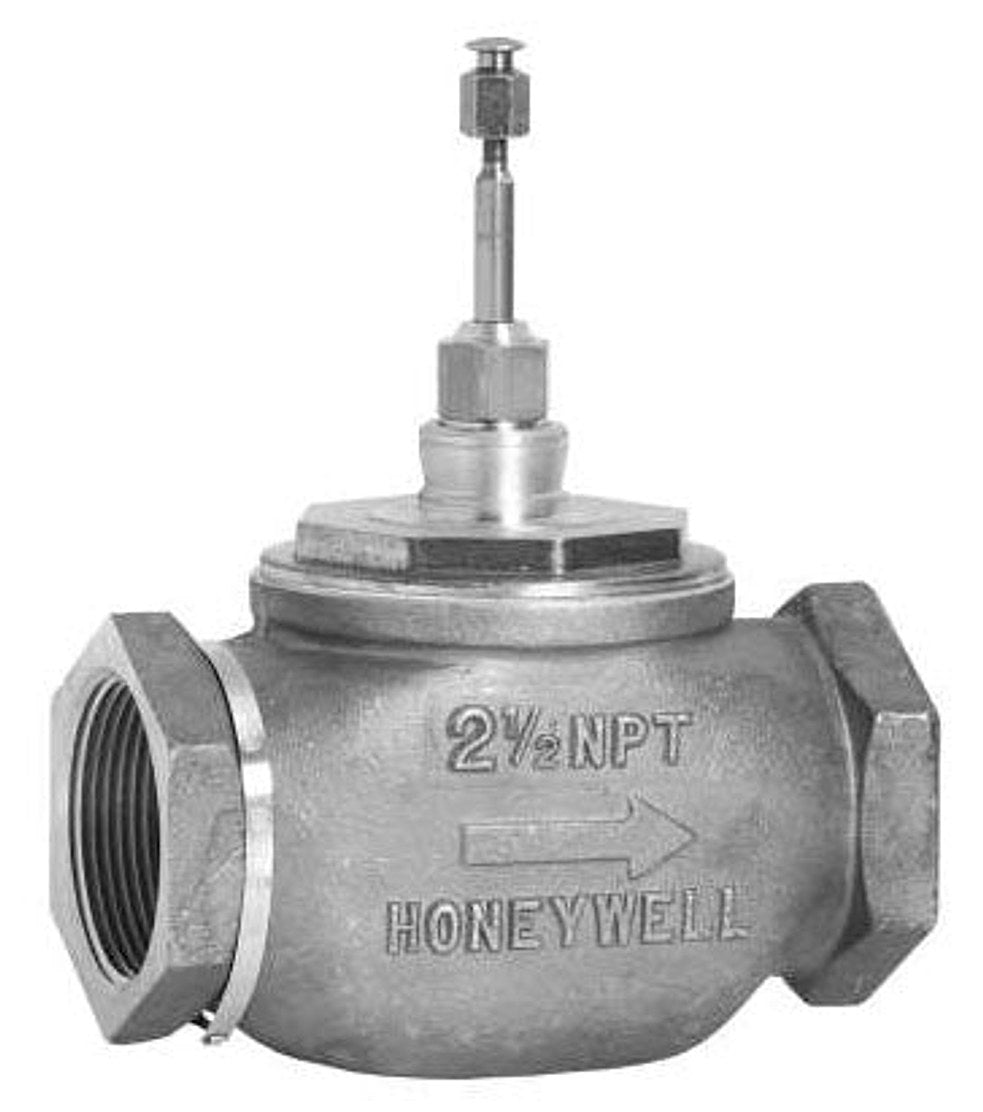

Honeywell Commercial V5011G1111 Globe Valve

Honeywell V5011G1111 Globe Valve is a high-performance, 2-way globe valve designed for heating and air conditioning systems. This stem-down to close, direct-acting, single-seated valve delivers precise linear flow through a straight-through path for reliable control.

With a 2-1/2 inch nominal size and female threaded end connections, it features a robust red brass body, stainless steel stem and seat, and a non-stick cone seal for smooth operation. The carbon-loaded non-stick disc enhances durability, while the valve adheres to ANSI/ASME standards for commercial HVAC use. Rated Class 150 (static) and 240 PSI at 150°F water, or 100 PSI at 337°F steam, it handles demanding conditions with confidence. The valve offers 63 Cv flow capacity and 3/4 inch stem travel, making it suitable for precise modulation in many systems. Compatible with a range of actuators including Q5001 Modutrol IV and MP953 Pneumatic Coil Valve Actuators, ensuring versatile control options.

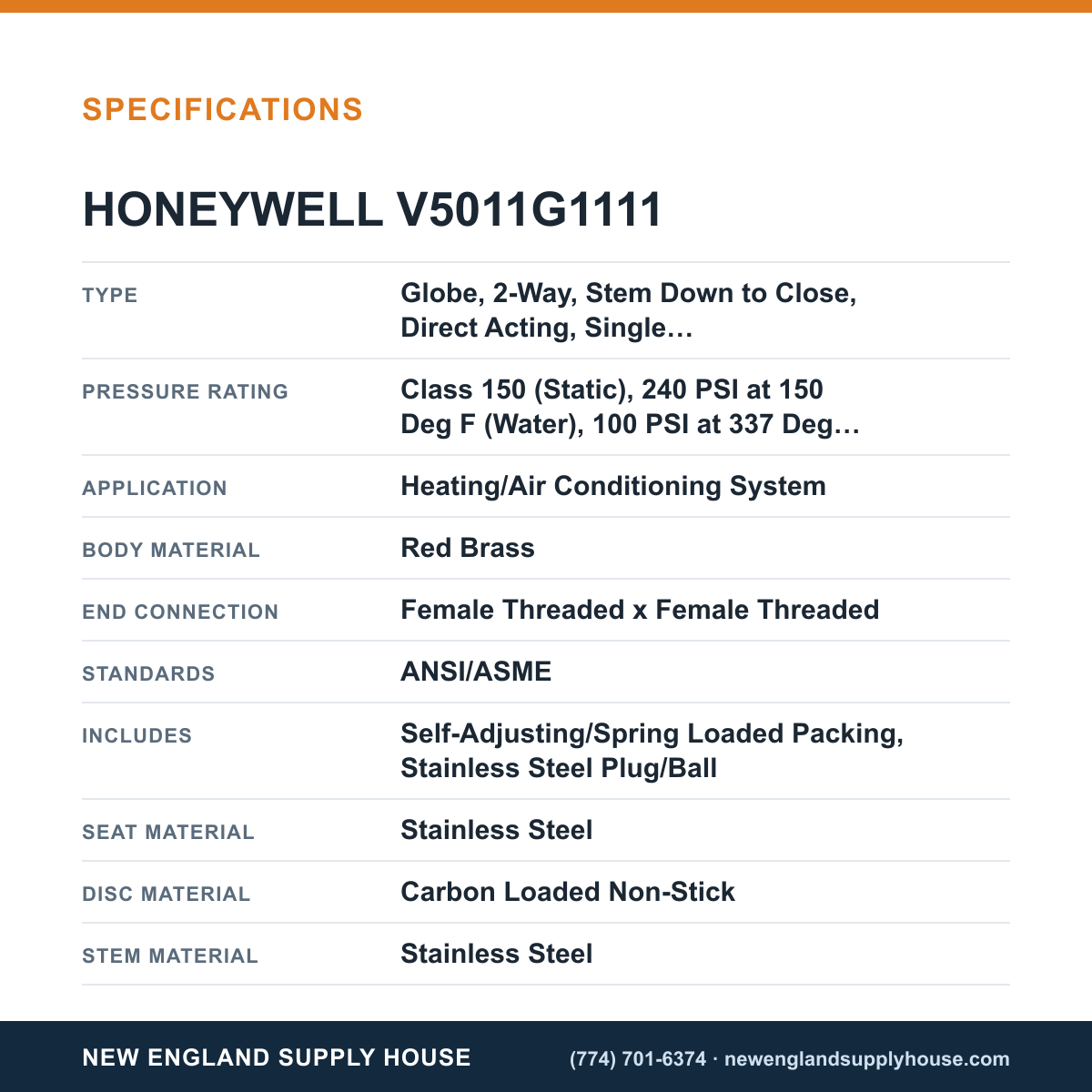

• Nominal Size: 2-1/2" | End Connections: Female Threaded x Female Threaded
• Materials: Red Brass body; Stainless Steel stem & seat; Non-Stick Cone seal; Carbon-loaded non-stick disc
• Performance: 63 Cv flow; Class 150 (static); 240 PSI @ 150°F (water); 100 PSI @ 337°F (steam)
• Design & Operation: Globe, 2-Way, Stem-Down to Close, Direct-Acting, Single-Seated, Straight-Through, Linear Flow
• Travel & Limits: Stem travel 3/4"; Maximum differential pressure 20 PSID
• Applications & Standards: Heating/AC systems; ANSI/ASME compliant
