Honeywell Commercial V5011N1040 Globe Valve

The V5011N1040 Globe Valve is a Honeywell commercial-grade control valve designed for HVAC applications. This 1/2 inch nominal valve is a 2-way globe valve with stem-down-to-close operation, direct acting, straight-through flow and equal percentage characteristics for precise control in heating and ventilating systems.

Constructed for durability, it features a red brass body with a stainless steel stem and seat, stainless steel disc, and non-stick seal material for reliable performance. It accepts female threaded end connections and provides an end-to-end distance of 3-1/4 inches. The bonnet is female threaded, and the valve is rated for 36 to 248 F water service with a Class 150 static pressure rating (217 PSI at 248 F).

Designed for compatibility with a variety of actuators and control systems, it supports Q5001 Modutrol IV Motor, MP953 Pneumatic Coil Valve Actuator, and other linking options, all while meeting ANSI/ASME standards for reliable HVAC performance. Ideal for retrofit or new installation in commercial buildings.

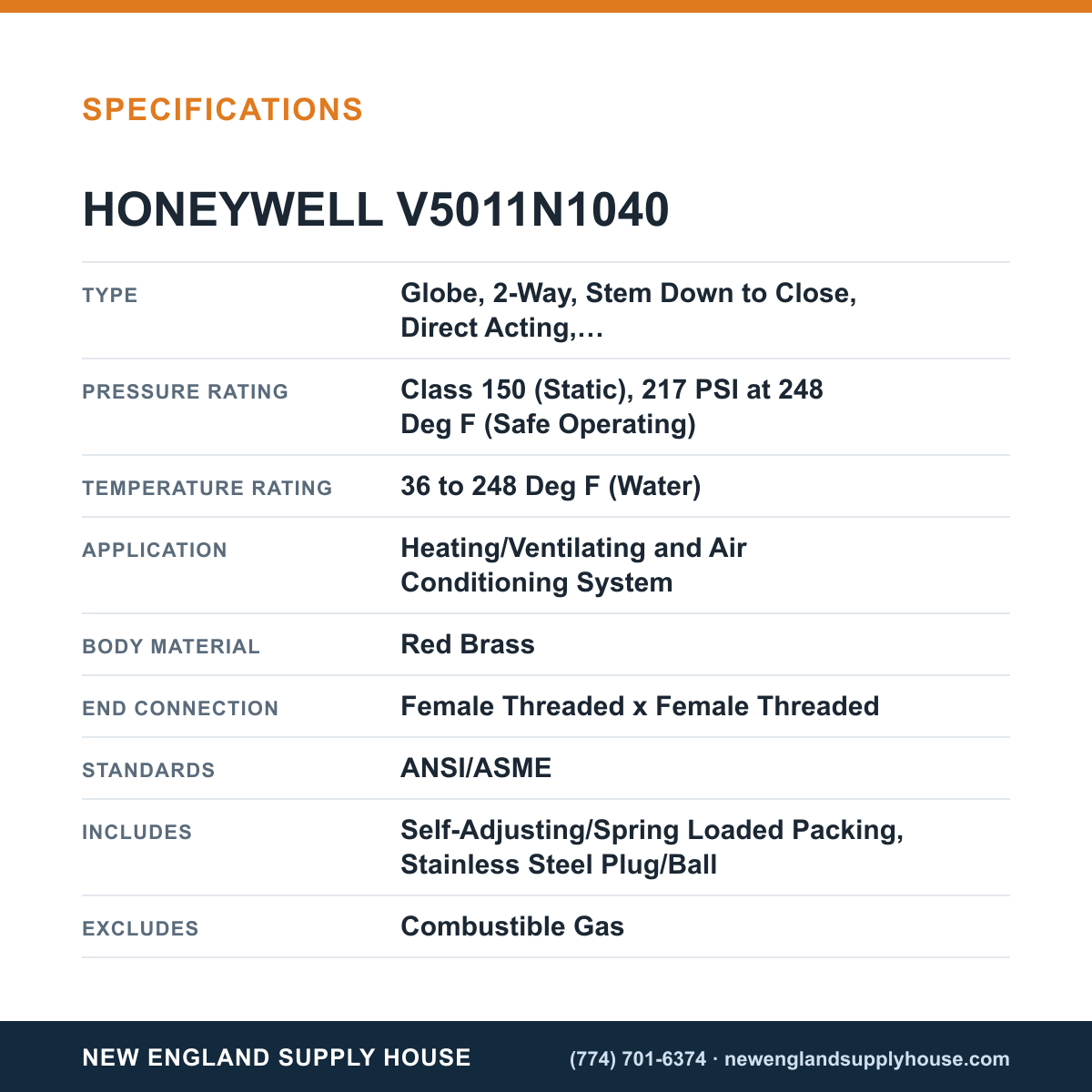

• Nominal Size: 1/2 Inch
• End Connections: Female Threaded x Female Threaded; End-to-End Distance: 3-1/4 Inch
• Materials: Red Brass Body; Stainless Steel Stem, Seat, and Disc
• Operation: 2-Way, Stem Down to Close, Direct Acting, Equal Percentage Flow
• Rating: 36–248 F water service; Class 150 static (217 PSI at 248 F)
• Inclusions: Self-Adjusting/Spring Loaded Packing; Stainless Steel Plug/Ball
• Applications/Standards: Heating/Ventilating and Air Conditioning; ANSI/ASME compliant
