Honeywell Commercial V5011N2071 Globe Valve

The Honeywell V5011N2071 Globe Valve is a robust, 2-way globe valve designed for heating, ventilation, and air conditioning systems. This stem-down-to-close, direct-acting valve offers a straight-through, linear flow path for precise throttling and reliable control in HVAC applications.

Nominal size is 1-1/4 inch, with end connections Female Threaded x Female Threaded and an end-to-end distance of 4-3/16 inch. The red brass body houses a stainless steel stem and seat, with a stainless steel disc and a non-stick seal to reduce wear. Bonnet type is Female Threaded. Temperature rating covers 36 to 248 F for water and up to 340 F for steam, with a Class 150 static rating and 100 psi at 337 F steam.

Key features include self-adjusting/spring-loaded packing and a stainless steel plug/ball, plus compatibility with a range of actuators to support HVAC control, including Q5001 Modutrol IV motor and other direct-coupled or pneumatic actuators.

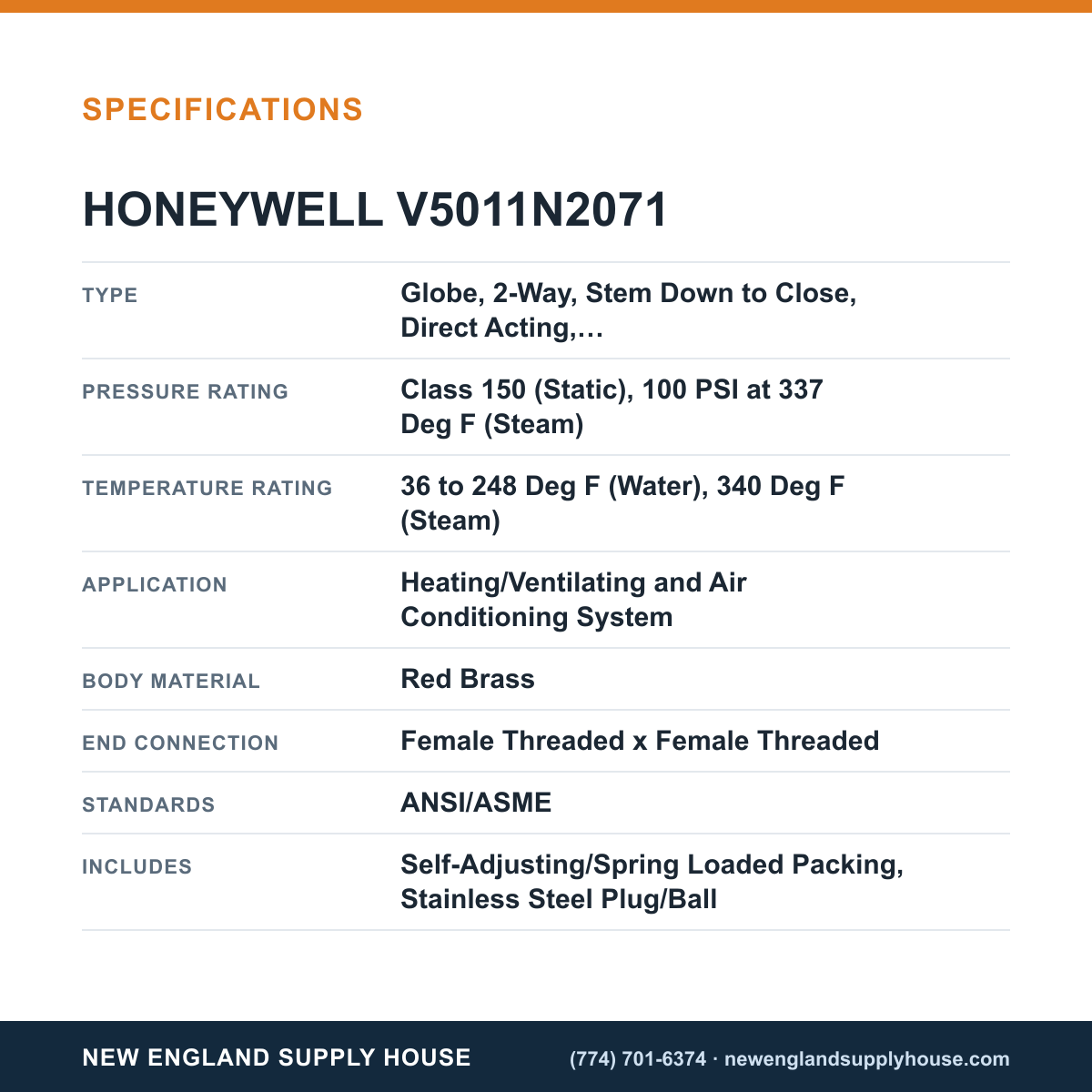

• Nominal Size: 1-1/4 in
• End Connections: Female Threaded x Female Threaded
• Flow Capacity: Cv 18.7
• Body/Component Materials: Red Brass body; Stainless Steel stem, seat, and disc
• Seal Material: Non-Stick
• Temperature Rating: 36–248 F (water); 340 F (steam)
• Pressure Rating: Class 150 static; 100 psi at 337 F steam
• Inclusions/Features: Self-Adjusting/Spring-Loaded Packing; Stainless Steel Plug/Ball
• Applications: Heating, Ventilation and Air Conditioning System
• Actuator Compatibility: Q5001 Modutrol IV Motor, MP953 Pneumatic Coil Valve Actuator, and more
