Honeywell Commercial V5013N1030 Globe Valve

The Honeywell V5013N1030 Globe Valve is a reliable 3-way mixing globe valve designed for HVAC applications. Built for efficiency and precise control, this 1/2 inch nominal size valve combines a robust red brass body with a stainless steel stem for durability in heating and cooling systems.

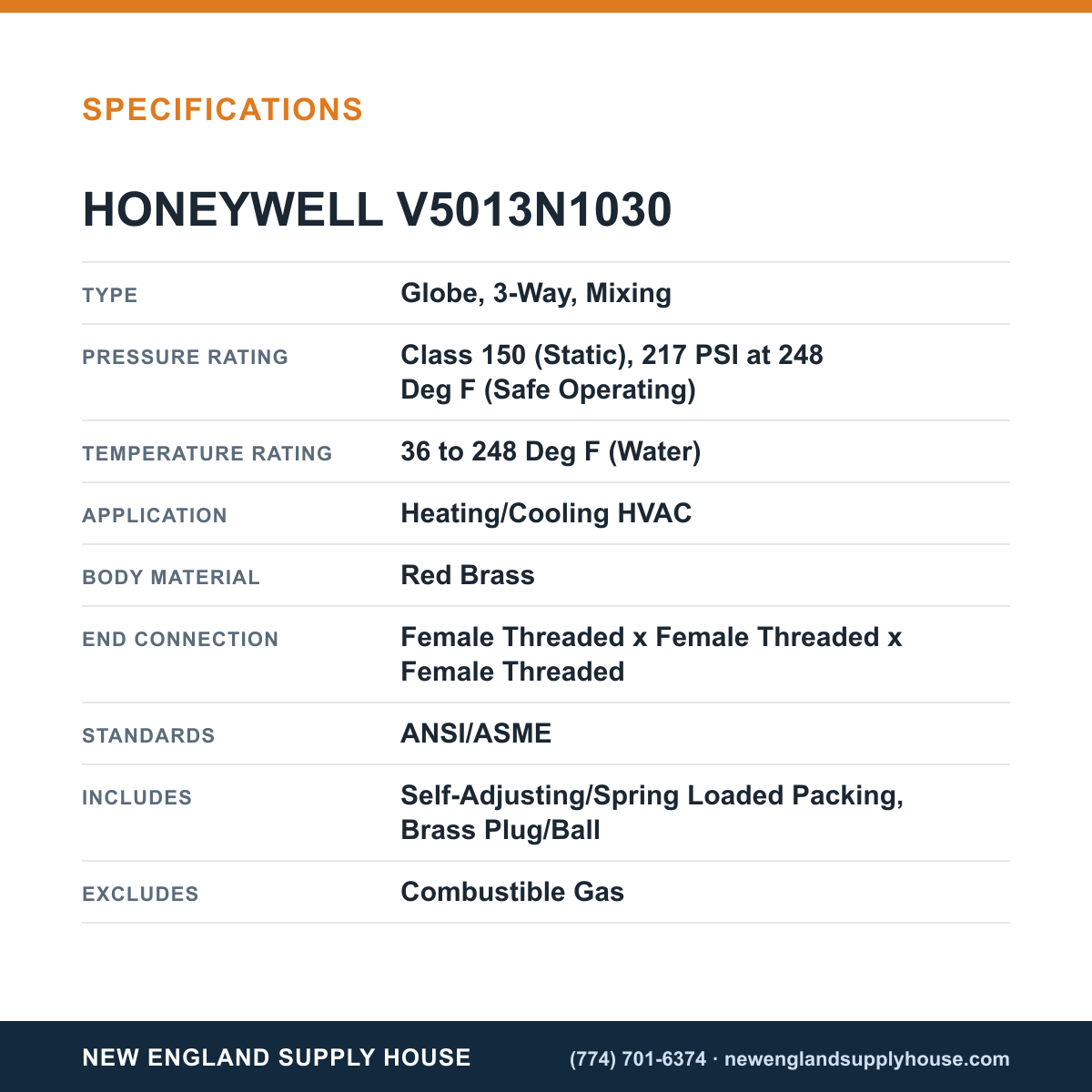

Key specifications ensure dependable operation under ANSI/ASME standards: end connections are female threaded x female threaded x female threaded; the bonnet is female threaded. The upper seat is stainless steel with a brass lower seat, and non-stick/EPDM seals provide smooth actuation. Temperature range 36 to 248°F and a Class 150 static pressure rating (217 PSI at 248°F) support demanding HVAC environments. The valve delivers a flow capacity of 2.9 Cv and a stem travel of 3/4 inch, with a bonnet size of 1-3/8 inch.

• 3-Way Mixing globe valve for precise heating and cooling control
• 1/2" nominal size with female threaded ends (x3)
• Robust construction red brass body, stainless steel stem, EPDM seals
• Specifications 2.9 Cv flow, 36–248°F, ANSI/ASME, Class 150 static (217 PSI @ 248°F)
• Dimensions & travel end-to-end 3-1/4", bonnet 1-3/8", stem travel 3/4"
• Actuator compatibility compatible with Q5001 Modutrol IV Motor and multiple ML/ML family actuators
• Durable packing self-adjusting/spring-loaded packing; brass plug/ball; max DP 20 PSID

Inclusions: self-adjusting packing and brass plug/ball ensure reliable long-term operation in HVAC systems.
