Honeywell Commercial V5013N1063 Globe Valve

The Globe Valve Honeywell Commercial V5013N1063 is a 1-inch, 3-Way mixing globe valve tailored for precise control in heating and cooling HVAC systems. Designed for reliable modulating performance, this valve blends flow from multiple paths to maintain steady temperatures and comfort.

The red brass body houses a stainless steel stem and integral brass (upper/lower) seats, with non-stick/EPDM seals for smooth operation and extended life. With an end-to-end distance of 4-1/16 inches and female threaded connections, it pairs easily with standard actuators and linkages for robust control. It's rated for water at 36 to 248 Deg F and ANSI/ASME Class 150 (static) with 217 PSI at 248 Deg F for safe operation.

Applications include heating and cooling HVAC, and it is compatible with multiple actuators and linkages such as Q5001 Modutrol IV Motor and ML-series direct-coupled actuators, ensuring flexible installation and dependable performance.

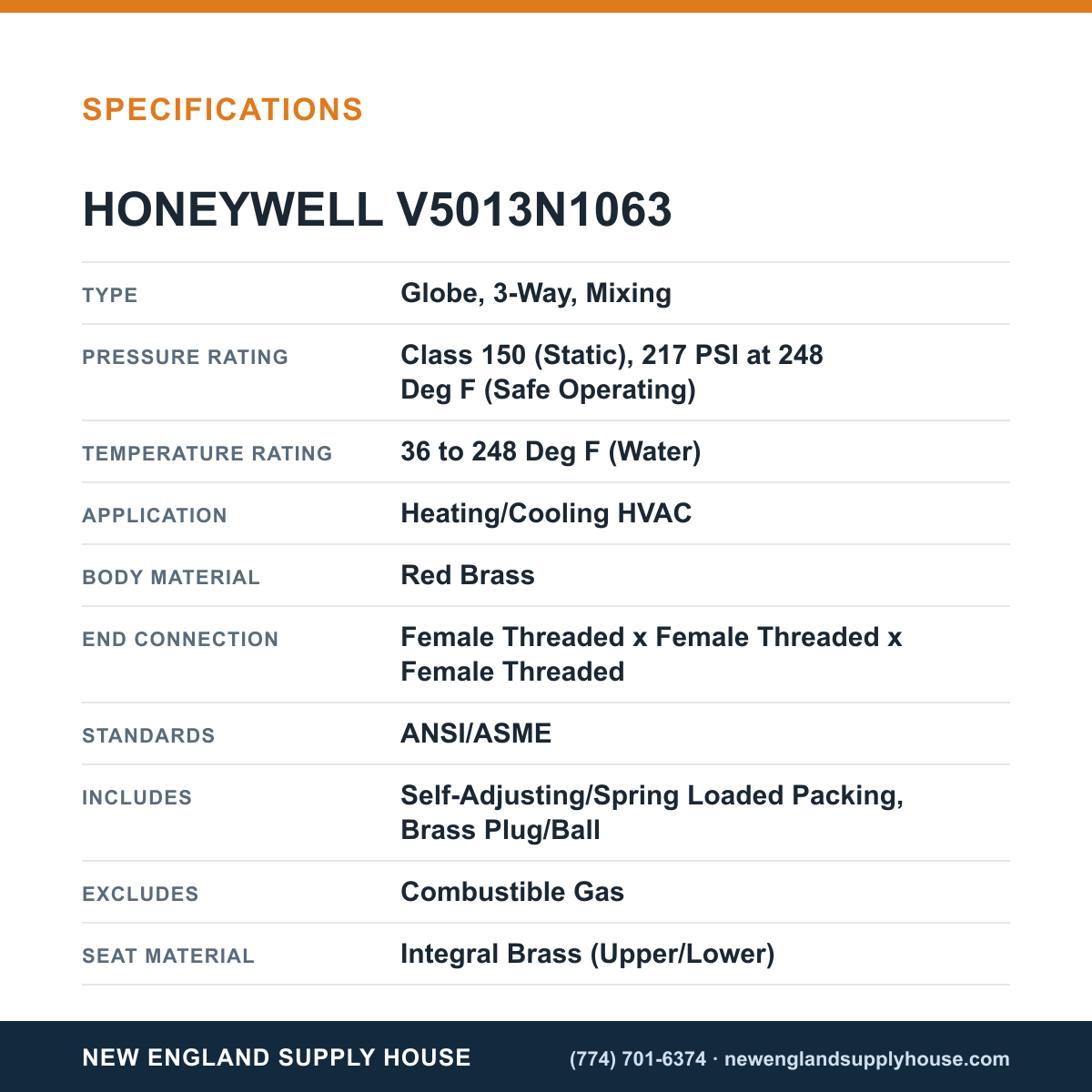

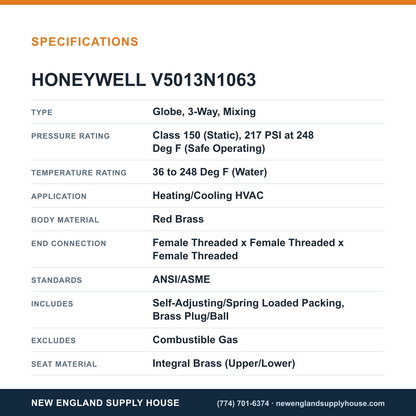

Key features

• 3-Way Mixing Globe Valve for precise flow control in HVAC systems.
• 1 Inch Nominal Size with female threaded x female threaded x female threaded end connections.
• Durable Red Brass Body with a stainless steel stem and integral brass seats.
• Non-Stick/EPDM Seals for smooth operation and long life.
• ANSI/ASME Class 150 static rating; 217 psi at 248°F for safe operation.
• Flow Capacity 11.7 Cv for efficient modulating performance.
• Self-Adjusting Spring-Loaded Packing delivers reliable leakage protection.
• Actuator Compatibility with Q5001 Modutrol IV Motor and ML-series actuators.
