Honeywell Commercial VP522A1005 Sequencing Water Valve

The Honeywell Commercial VP522A1005 Sequencing Water Valve is a precise 3-Way Mixing, unitary valve designed for HVAC control. Its compact 1/2 inch nominal size and 45-degree SAE flare end connections fit standard fan coils and induction units.

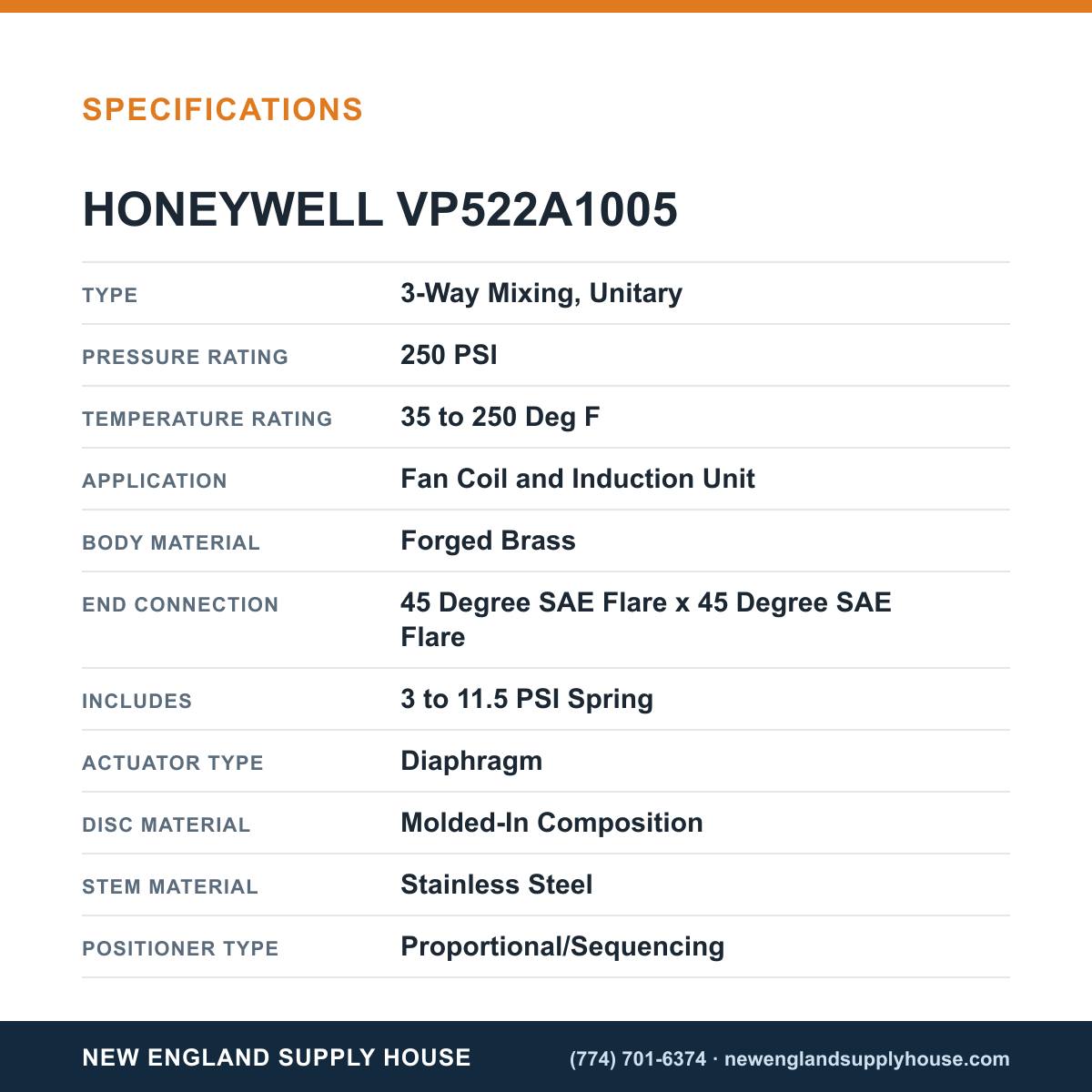

Constructed with a forged brass body, stainless steel stem, and molded-in composition disc, this diaphragm-actuated valve uses a Proportional/Sequencing positioner for accurate flow control. Rated to 250 PSI and operating from 35 to 250°F, it includes a 3 to 11.5 PSI spring for reliable sequencing. The assembly delivers 1.5 Cv flow capacity and occupies a footprint of 5-1/8 in diameter by 9-7/8 in height.

Designed for fan coil and induction unit applications, this valve combines rugged materials with precise control to optimize cooling and heating cycles while maintaining energy efficiency.

• Three-way mixing, unitary design for precise control
• Forged brass body with stainless steel stem
• Diaphragm actuator with Proportional/Sequencing positioner
• 1/2 in nominal size with 45° SAE flare ends
• Temperature range: 35–250°F; Pressure rating: 250 PSI
• Flow capacity: 1.5 Cv; Includes 3–11.5 PSI spring
• Compact dimensions: 5-1/8 in diameter x 9-7/8 in height
• Ideal for fan coil and induction unit HVAC systems
