Honeywell V4055A1098 Fluid Power Gas Valve Actuator, 120V, 50 Watt
Honeywell V4055A1098 Fluid Power Gas Valve Actuator, 120V, 50 Watt
Out of stock
Couldn't load pickup availability
- Purchase Orders & Tax-Exempt Welcome Contractors, municipalities, schools and businesses: email a PO, or send your exemption certificate once and tax comes off every order.
SKU:3159
View full details
![Honeywell Thermal Solutions FSG V4055A1098 Fluid Power Gas Valve Actuator — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032819474654.png?v=1782844203&width=1445)
![Honeywell Thermal Solutions FSG V4055A1098 Fluid Power Gas Valve Actuator specifications — New England Supply House [NESH-SPECTABLE-V1]](http://newenglandsupplyhouse.com/cdn/shop/files/specs-9032819474654.png?v=1790702901&width=1445)
The Fluid Power Gas Valve Actuator from Honeywell Thermal Solutions, model FSG V4055A1098, delivers precise ON/OFF control for industrial gas valves. This 120 VAC actuator is designed for gas burners, delivering reliable operation with a 13-second opening and under-1-second closing, enabling rapid, safe ignition and shutoff.
Constructed with a rugged die-cast aluminum body and a NEMA 1, IP30 enclosure, it withstands demanding environments from -40 to 150 deg F (ambient). The unit rotates 52 degrees to operate the valve and consumes 50 watts at 60 Hz, drawing about 0.94 amps.
It carries UL and CSA approvals for safety and compliance, making it suitable for industrial gas valve and gas burner applications.
- Voltage: 120 VAC; Power: 50 W; Current: 0.94 A; Frequency: 60 Hz
- Rotation: 52 degrees; Opening time: 13 seconds; Closing time: less than 1 second
- Enclosure: NEMA 1, IP30; Body: Die-cast aluminum; Includes damper shaft
- Approvals: UL, CSA
- Excludes Auxiliary Switch

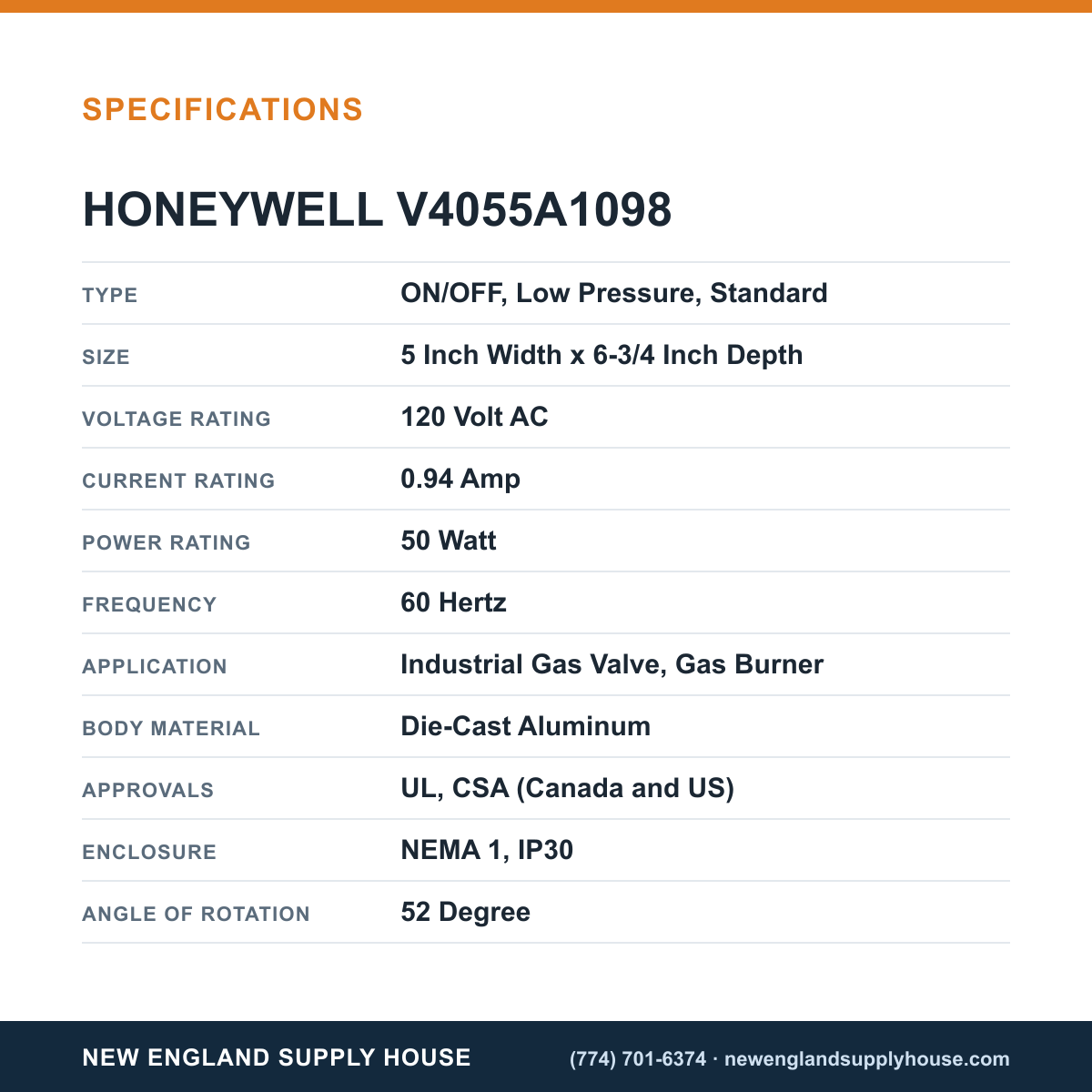

Specifications
| Type | ON/OFF, Low Pressure, Standard |
|---|---|
| Size | 5 Inch Width x 6-3/4 Inch Depth |
| Voltage Rating | 120 Volt AC |
| Current Rating | 0.94 Amp |
| Power Rating | 50 Watt |
| Frequency | 60 Hertz |
| Application | Industrial Gas Valve, Gas Burner |
| Body Material | Die-Cast Aluminum |
| Approvals | UL, CSA (Canada and US) |
| Enclosure | NEMA 1, IP30 |
| Angle of Rotation | 52 Degree |
| Operating Temperature | -40 to 150 Deg F (Ambient) |
| Max AC Voltage | 120 Volt |
