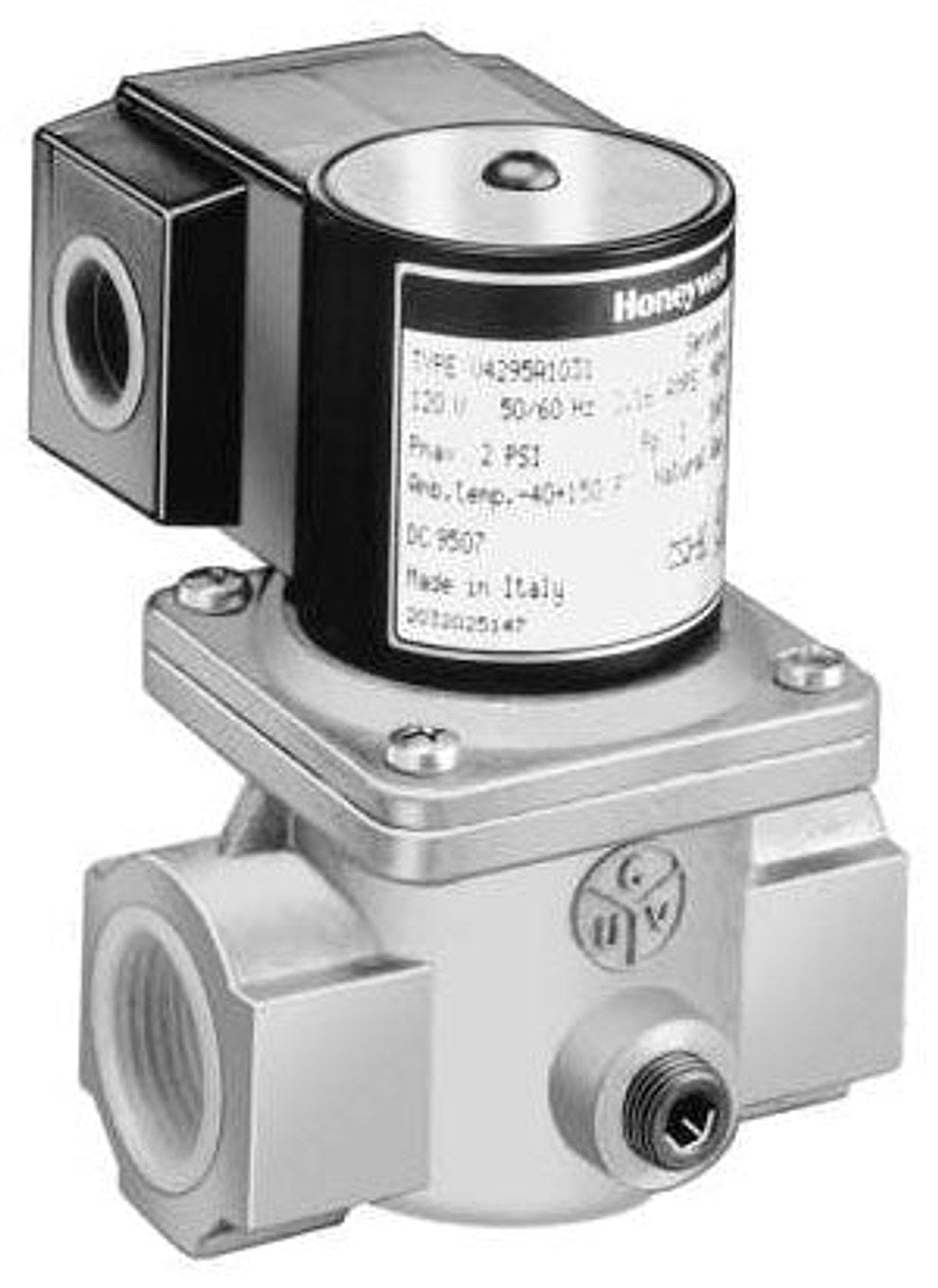

Honeywell Thermal Solutions FSG V4295A1023 Solenoid Gas Valve

The Honeywell FSG V4295A1023 solenoid gas valve delivers precise control for gas-fired appliances. Designed for straight-through, non-offset flow, this valve features a 3/4 inch threaded inlet and outlet and a compact die-cast aluminum body.

Equipped with a normally closed (NC) valve position and a fast 1-second open/close timing, it suits safety-critical HVAC tasks such as furnaces, ovens, atmospheric burners, and boilers. The valve runs on 120V AC (50/60 Hz) with a 0.16 A draw, operates from -40 to 140 F, and tolerates up to 2 PSI. Media options include air and propane/mixed gas, with a 1/4 inch pressure tap for monitoring. UL, CSA, and FM listings ensure reliable, code-compliant operation with commercial systems. The electrical connection uses screw terminals for easy wiring.

• Type: Straight-Through, Non-Offset
• Valve position: Normally Closed (NC)
• Port connections: 3/4 in threaded inlet and 3/4 in threaded outlet
• Body: Die-Cast Aluminum
• Power: 120 VAC, 50/60 Hz, 0.16 A, screw-terminal
• Performance: 1 second open/close timing, 645 CFH flow capacity
• Environmental: -40 to 140 F, 2 PSI max
• Inlets/Tap: 1/4 in pressure tap
• Applications: Furnace, oven, atmospheric burner, commercial water heater, rooftop makeup air unit, power burner, boiler
• Certifications: UL, CSA, FM
