Honeywell Thermal Solutions FSG V8944N1020 Diaphragm Gas Valve

The Honeywell Thermal Solutions FSG V8944N1020 Diaphragm Gas Valve delivers reliable, precise gas control for commercial heating systems. This 1-1/4 inch nominal, end-threaded diaphragm gas valve is Type 2-Stage, rapid opening, straight-through, non-offset, and solenoid operated, with a die-cast aluminum body built for durability in demanding environments.

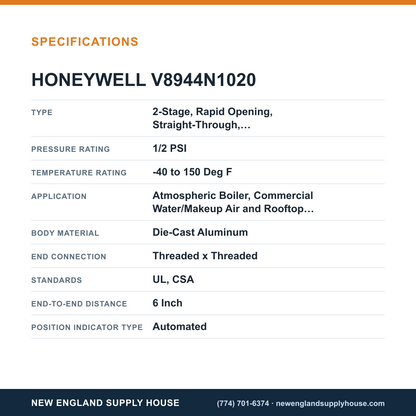

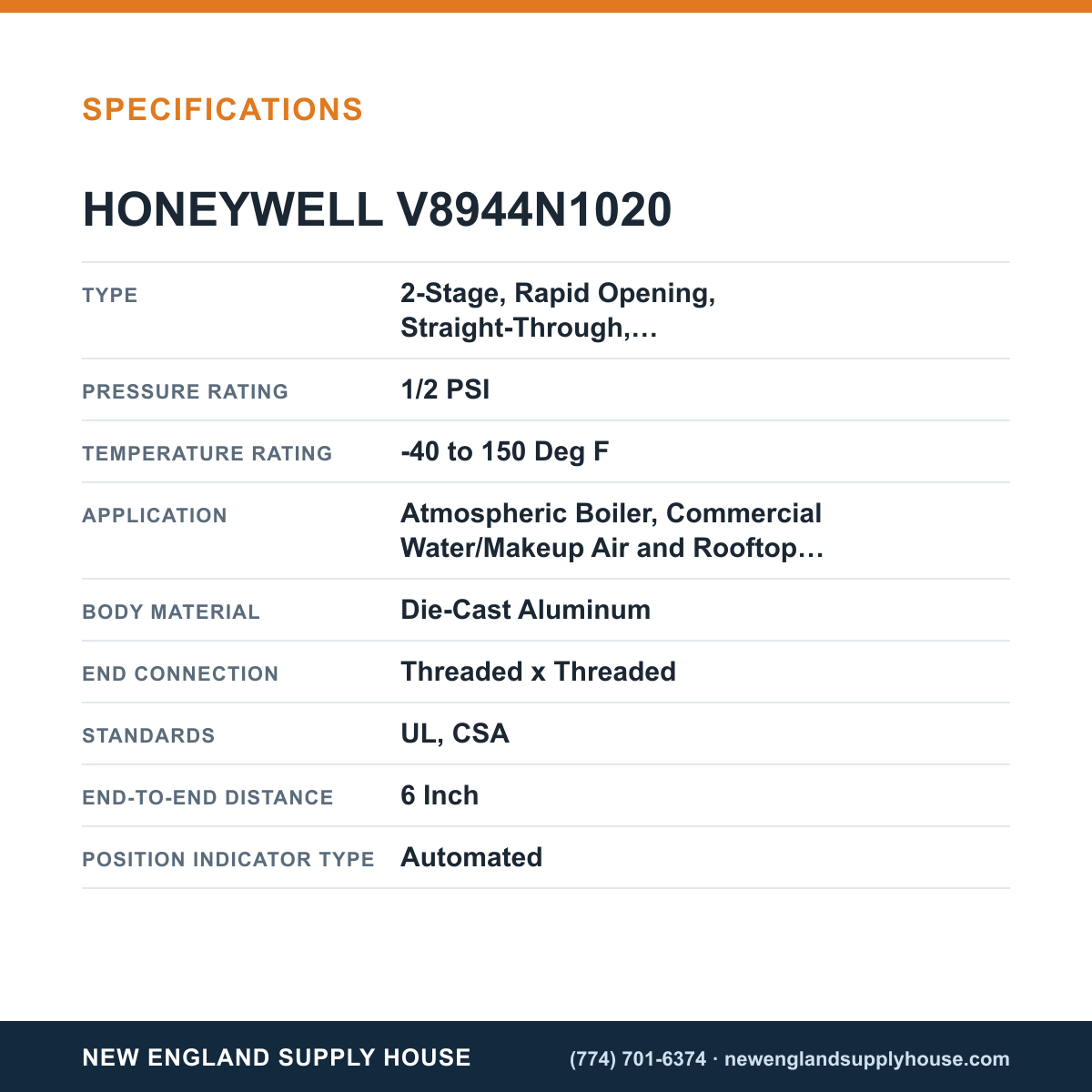

• End connections: Threaded x Threaded; nominal size 1-1/4".
• Durable construction: Die-cast aluminum body for longevity in harsh conditions.
• Electrical specifications: 24 V AC, 60 Hz; current 0.516 A; power 12.4 VA.
• Operation timing: Open in 6 seconds; close in 2 seconds.
• Temperature/pressure: -40 to 150°F; 1/2 psi pressure rating.
• Pressure set points: 0.8 in WC (low fire) to 3.5 in WC (high fire).
• Applications: Atmospheric boiler, commercial makeup air, rooftop heater, duct furnace.
• Mounting/size: Upright (horizontal); overall 6" W × 6" D × 6-9/16" H; end-to-end distance 6".
• Electrical termination: 1/4" spade terminals; three 30" lead wires.
• Certifications/fuel: UL and CSA listed; natural gas.
