ICM Controls ICM255C Fan Delay Timer

Introducing the ICM255C Fan Delay Timer from ICM Controls—the compact, reliable dual function timer that precisely manages fan delays for HVAC equipment. The primary keyword ICM255C Fan Delay Timer is designed for dependable performance in modern systems.

Designed with a fixed timing and open board construction, this unit fits tight spaces in air handlers, heat pumps, and forced air systems. It operates from 18 to 30 Volt AC at 50/60 Hz, delivering solid control for comfort setups. The ICM255C is UL listed and CSA approved for safety and compliance, giving installers confidence in every connection.

Engineered for versatility, it provides precise ON/OFF delays that help protect components, optimize fan operation, and reduce energy waste across variable loads. Its compact 2.5 x 2.5 inch footprint makes retrofits and new installations straightforward, while robust ratings support demanding residential and light commercial applications.

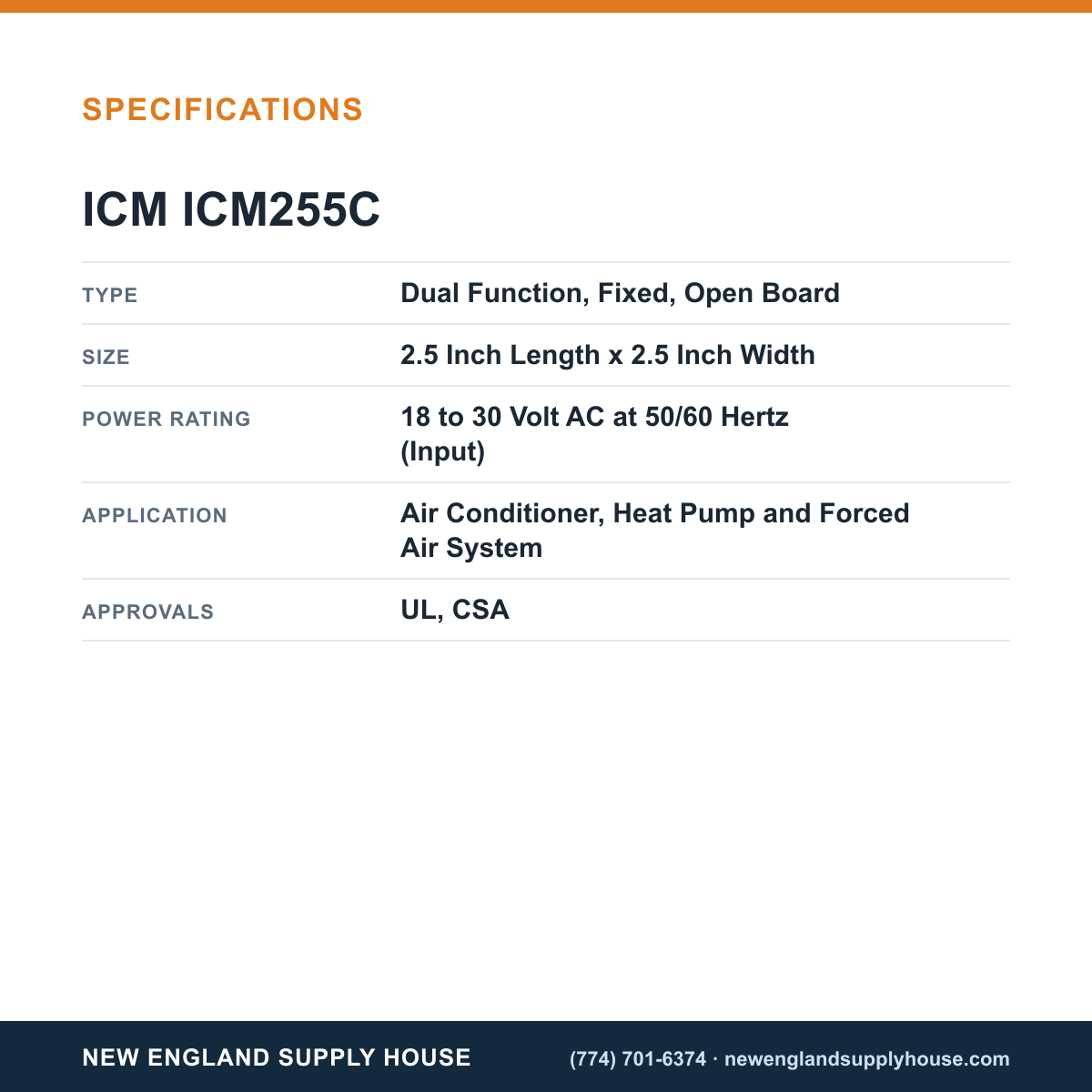

• Type: Dual Function, Fixed, Open Board
• Input Voltage: 18–30 VAC, 50/60 Hz
• Output Rating: 20 A at 240 VAC (NO), 10 A at 240 VAC (NC)
• Time Delay: ON 1 second, OFF 60 seconds
• Applications: Air Conditioner, Heat Pump, Forced Air System
• Size: 2.5" L x 2.5" W
• Approvals: UL Listed, CSA Approved
