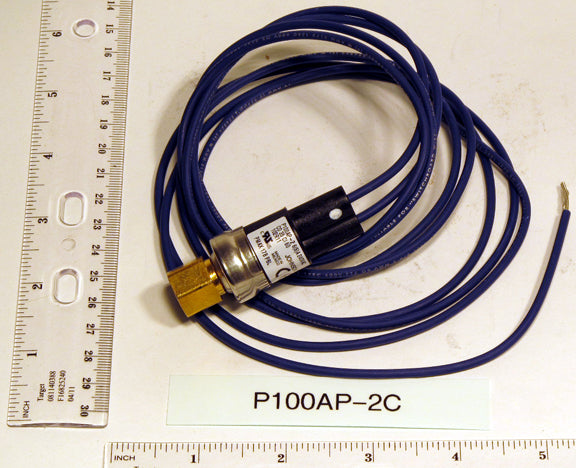

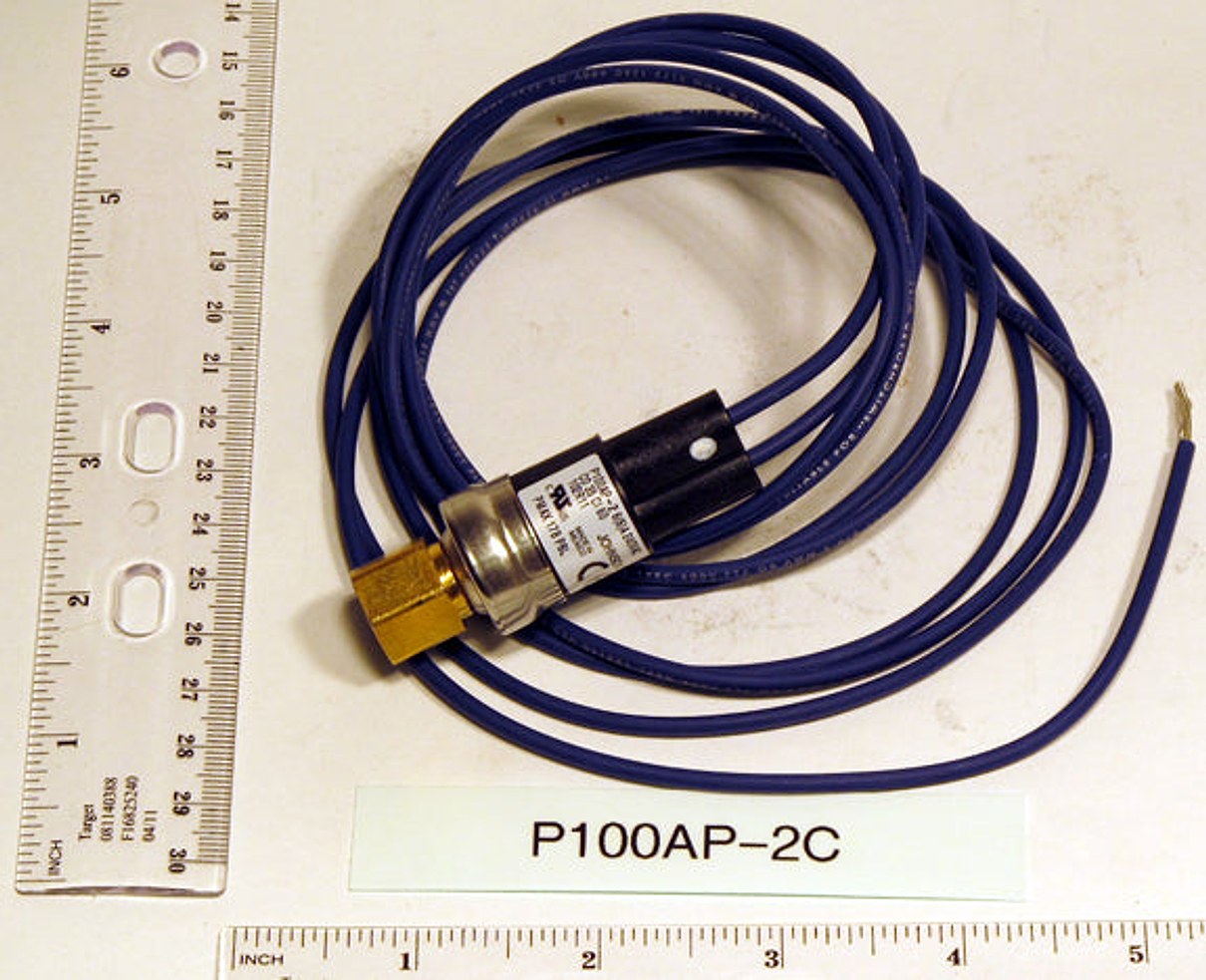

Johnson Controls P100AP-2C Pressure Switch, 35 psiG

The Johnson Controls P100AP-2C Pressure Switch is a non-adjustable, encapsulated, direct-mount device designed for precise pressure control in refrigeration, air conditioning, and food-service equipment. This compact switch delivers reliable open/close pressures with a rugged construction for commercial use.

engineered for dependable operation, it features a SPST contact configuration, 120/240 V at 6 A, and a pilot-duty rating for higher voltage applications. The unit is UL approved for both Canada and the United States, ensuring trusted safety and compatibility across North American systems.

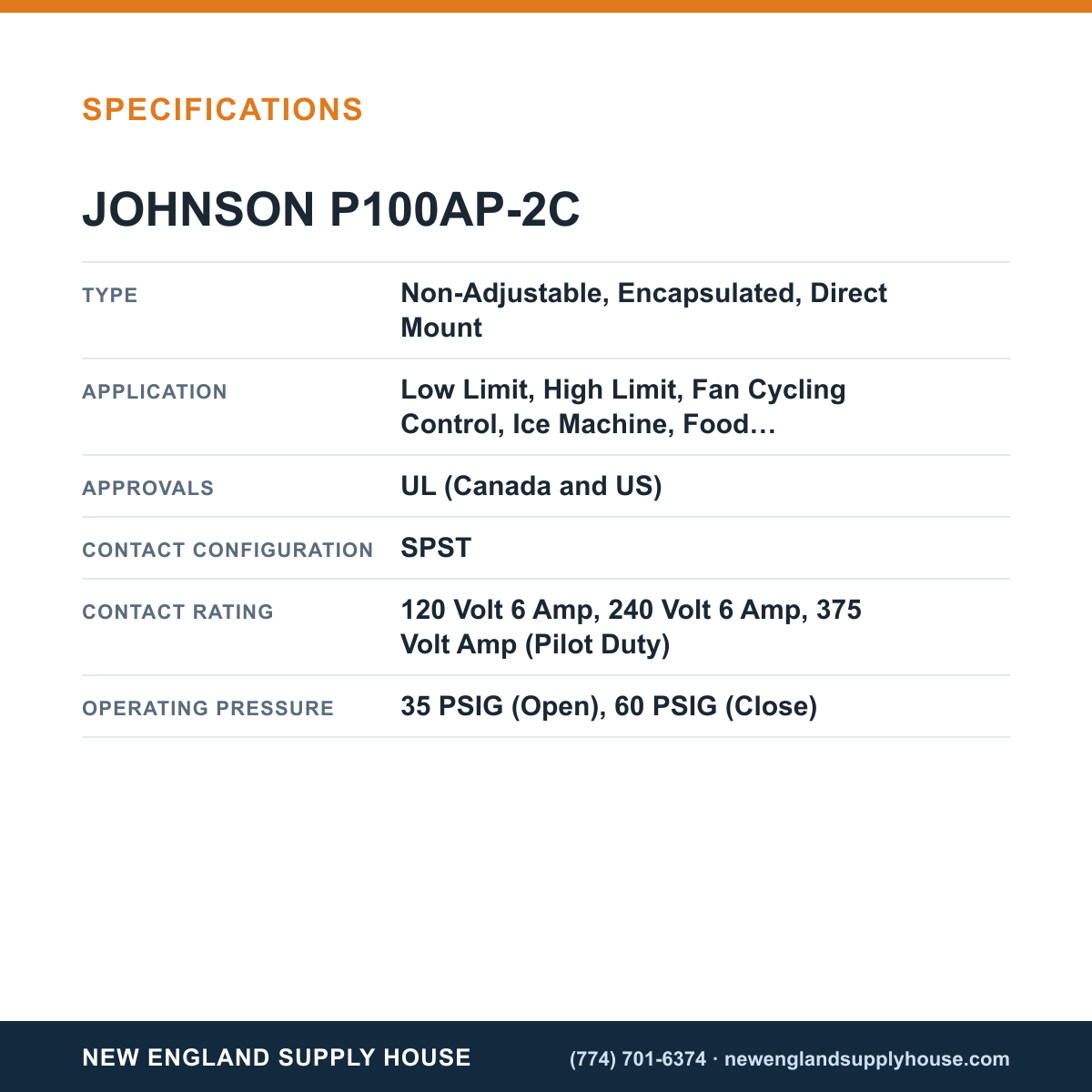

• Operating pressures: 35 PSIG (Open), 60 PSIG (Close)
• Configuration: Non-adjustable, encapsulated, direct-mount
• Electrical: SPST contact; 120/240 V, 6 A; 375 V-A pilot duty
• Applications: Low limit, high limit, fan cycling control, ice machines, refrigeration, air conditioning
• Dimensions: 2-7/16 in. length × 7/8 in. width
• Approval: UL listed (Canada and US)
