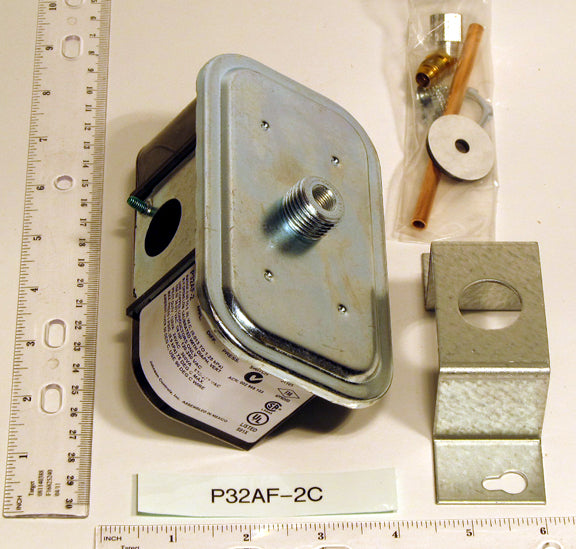

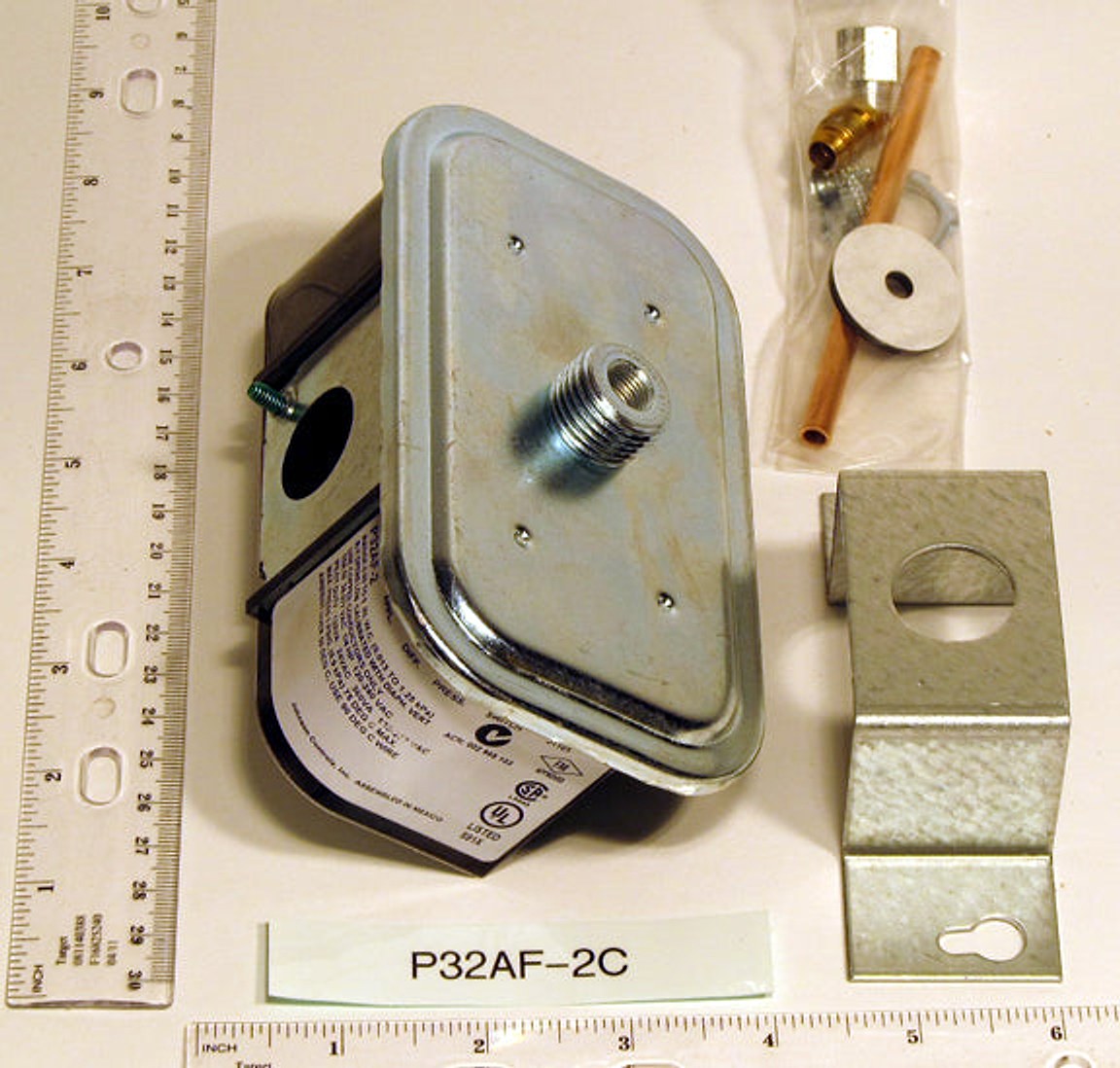

Johnson Controls P32AF-2C Pressure Switch

Johnson Controls P32AF-2C pressure switch delivers precise close differential control for air systems. This pressure switch is built for sensitive pressure settings and reliable performance in volume system applications.

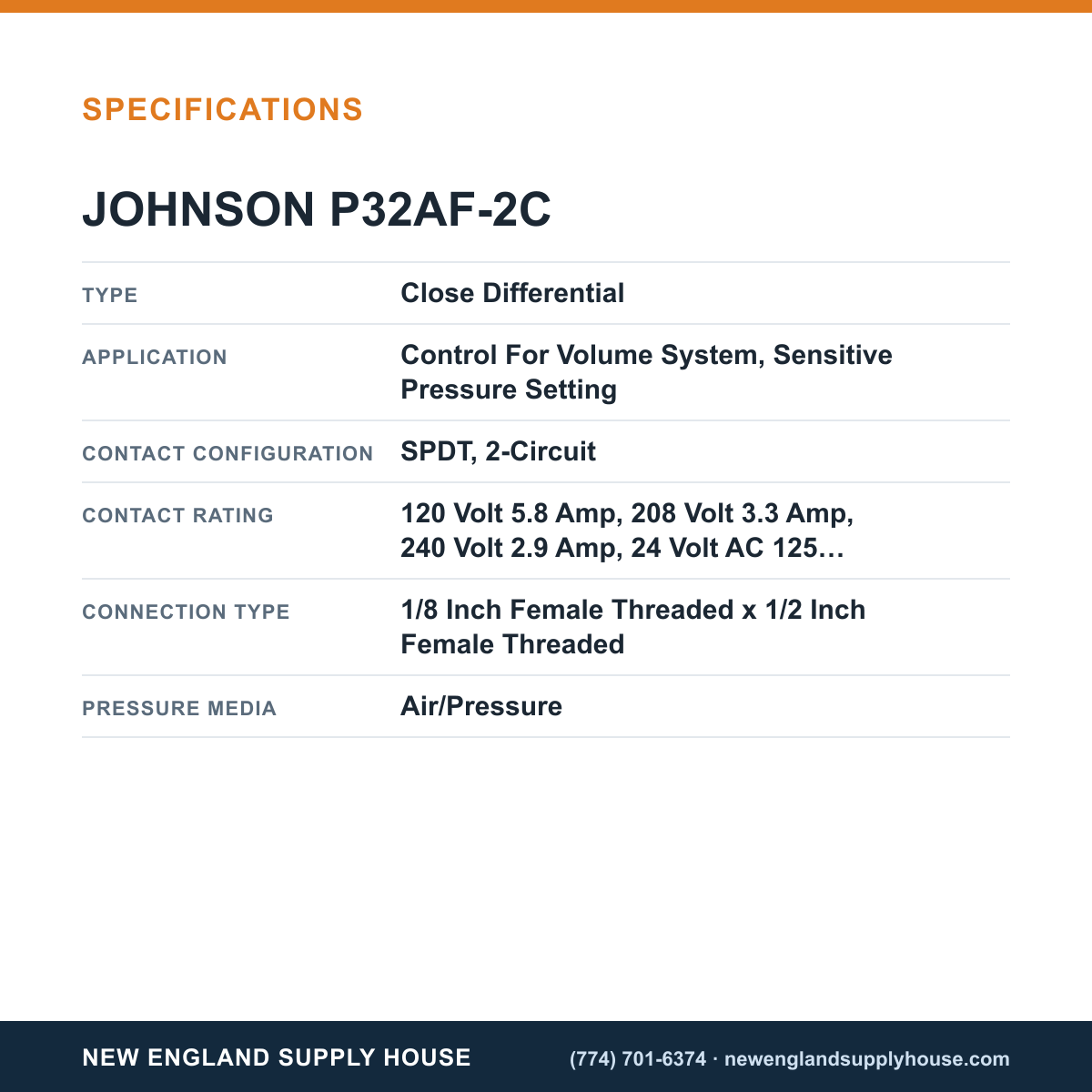

The unit features SPDT, 2-circuit contact configuration, offering flexible wiring options to meet the needs of HVAC and equipment controls. Electrical ratings cover a broad range, including 120V at 5.8A, 208V at 3.3A, 240V at 2.9A, and 120-277V AC up to 360 VA. For low-voltage control, it handles 24V AC up to 125 VA.

Connection type is 1/8 inch female threaded by 1/2 inch female threaded, simplifying installation in tight control panels. The ambient temperature range spans -40 to 167°F, making it suitable for demanding environments. Applications include volume system control with a sensitive pressure setting, ensuring accurate on/off operation as system conditions change.

• Close differential operation for precise air pressure switching
• SPDT, 2-circuit contact configuration for flexible wiring
• Wide voltage compatibility: 120V–277V AC, up to 360 VA
• Connection: 1/8" NPT x 1/2" NPT female threads
• Ambient temperature range: -40 to 167°F
• Ideal for volume system control with sensitive pressure setting
