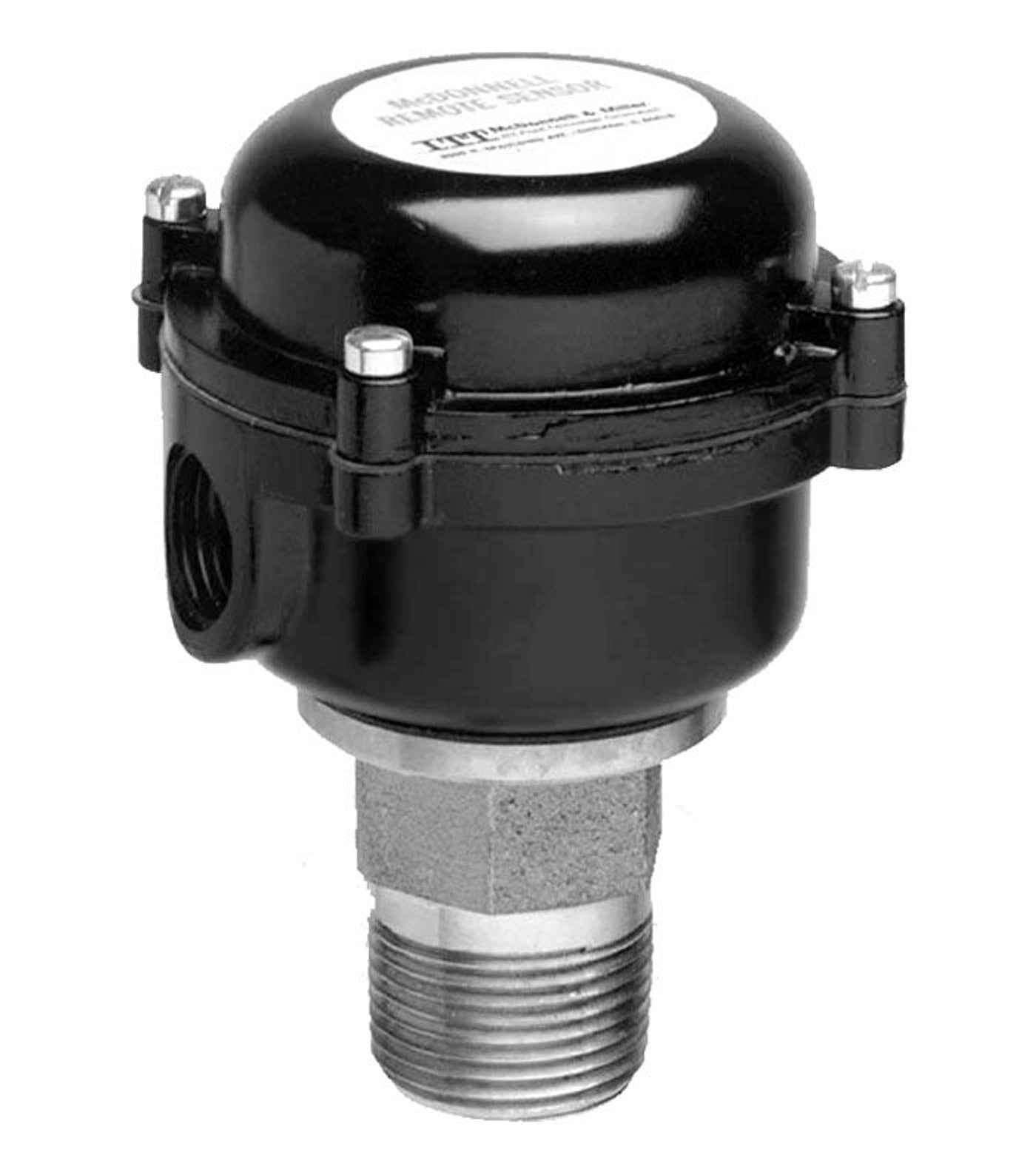

McDonnell & Miller RS1-BR1 Liquid Level Control Remote Sensor

Liquid Level Control Remote Sensor from McDonnell & Miller, RS1-BR1, is designed for high-precision monitoring in commercial boilers and hydronic systems. This RS1-BR1 remote sensor enables conductance actuated liquid level control across tanks, boilers, and hydronic circuits.

Built for demanding environments, it features a 1 inch male thread connection and a robust NEMA 4X enclosure, delivering reliable performance in tough plant conditions. The sensor operates as part of a conductance actuated liquid level control, ideal for applications in tanks, boilers, and hydronic systems with high-pressure requirements.

Key specifications

• Type: Remote Sensor; High Pressure; 1-Level
• Connection: 1 Inch Male Threaded; Threaded Size 3-1/4 Inch
• Applications: Used On Conductance Actuated Liquid Level Control in Tank, Boiler and Hydronic System
• Enclosure & Approvals: NEMA 4X; UL (Canada and US), FM
• Dimensions: Overall Dimension 3-1/4 Inch Width x 4-9/16 Inch Height
• Ratings: Maximum Temperature Rating 406 Deg F; Maximum Pressure Rating 250 PSIG

With UL (Canada and US) and FM approvals, this remote sensor meets safety and compliance standards for commercial installations. The rugged design supports reliable operation in demanding environments, making it a trusted choice for high-pressure liquid level control in tanks, boilers, and hydronic systems.
