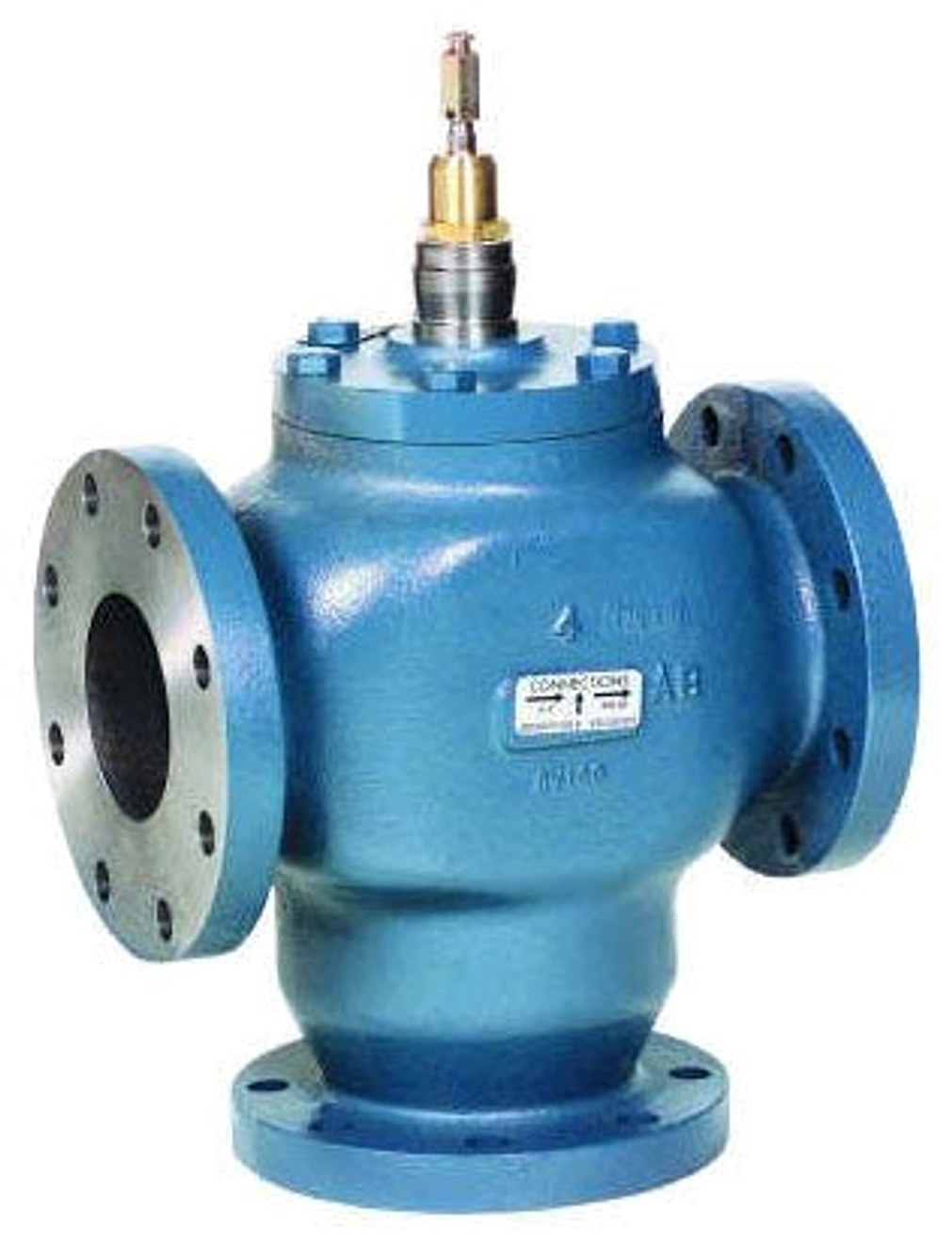

Nor'east Controls V5013B1045 Globe Valve

The Nor'east Controls V5013B1045 Globe Valve is a 6-inch, three-way globe valve engineered for precision control in heating and cooling systems. This stem-down, straight-through valve supports mixing and linear flow to balance temperatures efficiently. With a flanged x flanged x flanged end connection and a 16-1/2 inch end-to-end distance, it installs easily in HVAC loops. Built for rugged service, the cast iron body, stainless steel stem, bronze seats and discs, and non-stick cone seals ensure long-lasting performance. Rated for 40 to 250 degrees F and Class 125 static, with 150 psi at 240°F (Water), it handles demanding temperatures and pressures while maintaining reliable shutoff.

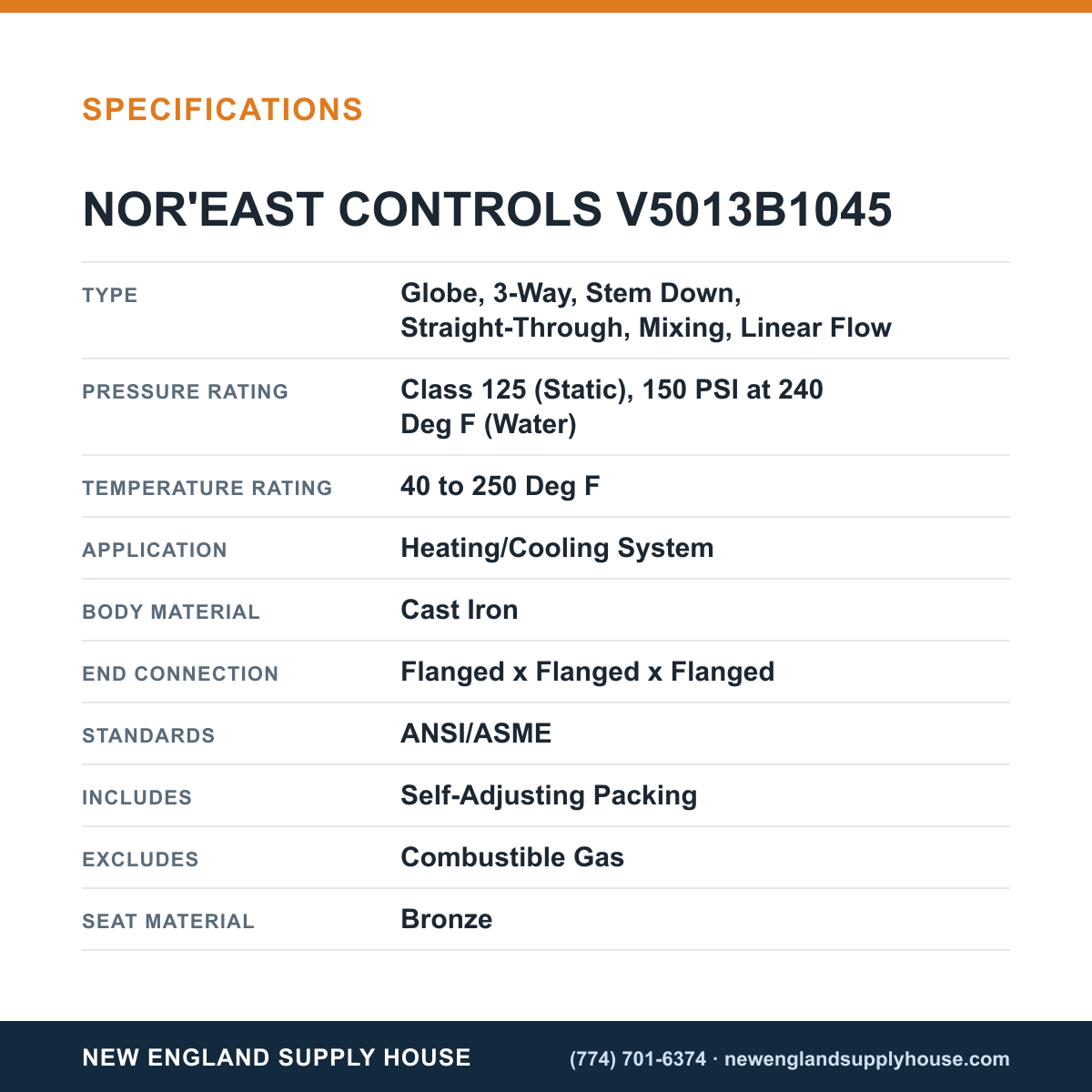

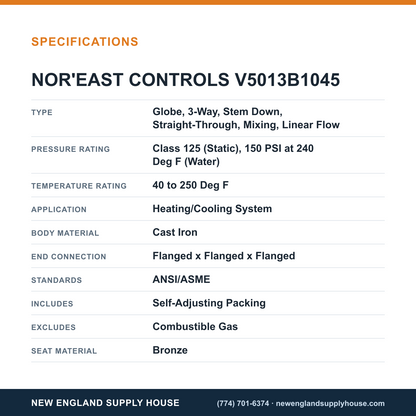

• Nominal Size: 6 inch
• Valve Type: Globe, 3-Way, Stem Down, Straight-Through, Mixing, Linear Flow
• End Connections: Flanged x Flanged x Flanged
• End to End Distance: 16-1/2 Inch
• Bonnet: Flanged
• Body Material: Cast Iron
• Stem Material: Stainless Steel
• Seat Material: Bronze
• Seal Material: Non-Stick Cone
• Disc Material: Bronze
• Temperature Rating: 40 to 250 Deg F
• Pressure Rating: Class 125 static; 150 PSI at 240 Deg F (Water)
• Flow Capacity: 360 Cv
• Stem Travel: 1-1/2 Inch
• Bonnet Size: 1-7/8
• Inclusions: Self-Adjusting Packing
• Application: Heating/Cooling System
• Standards: ANSI/ASME
• Actuator Compatibility: Q5001 Modutrol IV Motor, Q5024 Globe Valve Linkage, ML7421B/ML6421B Non-Spring Return Direct-Coupled Globe Valve Actuator
