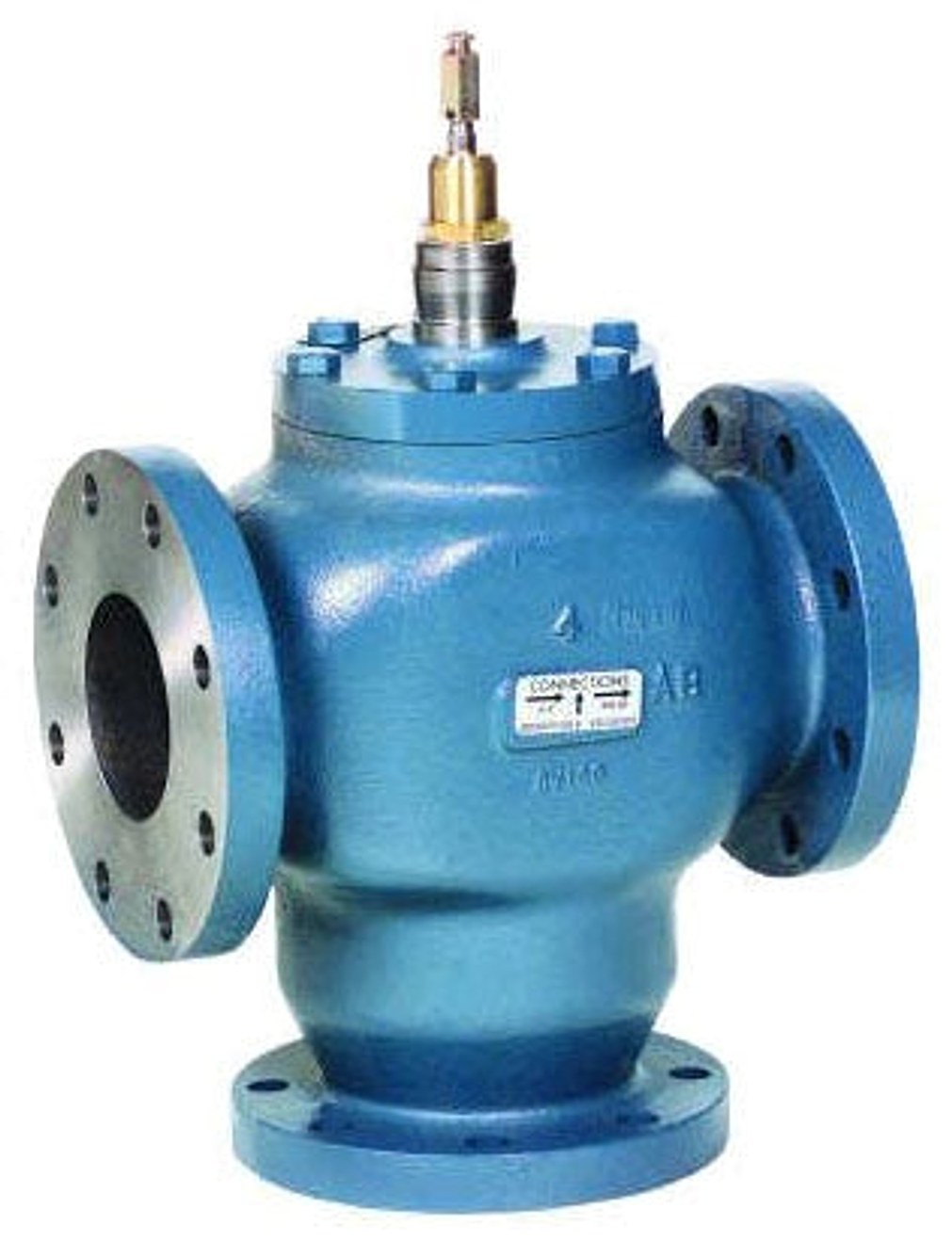

Nor'east Controls V5013C1019 Globe Valve

Nor'east Controls V5013C1019 Globe Valve is a 3-Way, stem-up globe valve designed for HVAC heating and cooling systems. This versatile globe valve provides both straight-through and diverting flow paths, featuring a 3-inch nominal size and end connections that are flanged x flanged x flanged for easy integration into existing piping. Built for durability, the body is cast iron, with a stainless steel stem, bronze seats, and a non-stick cone seal, delivering reliable performance across a wide operating range.

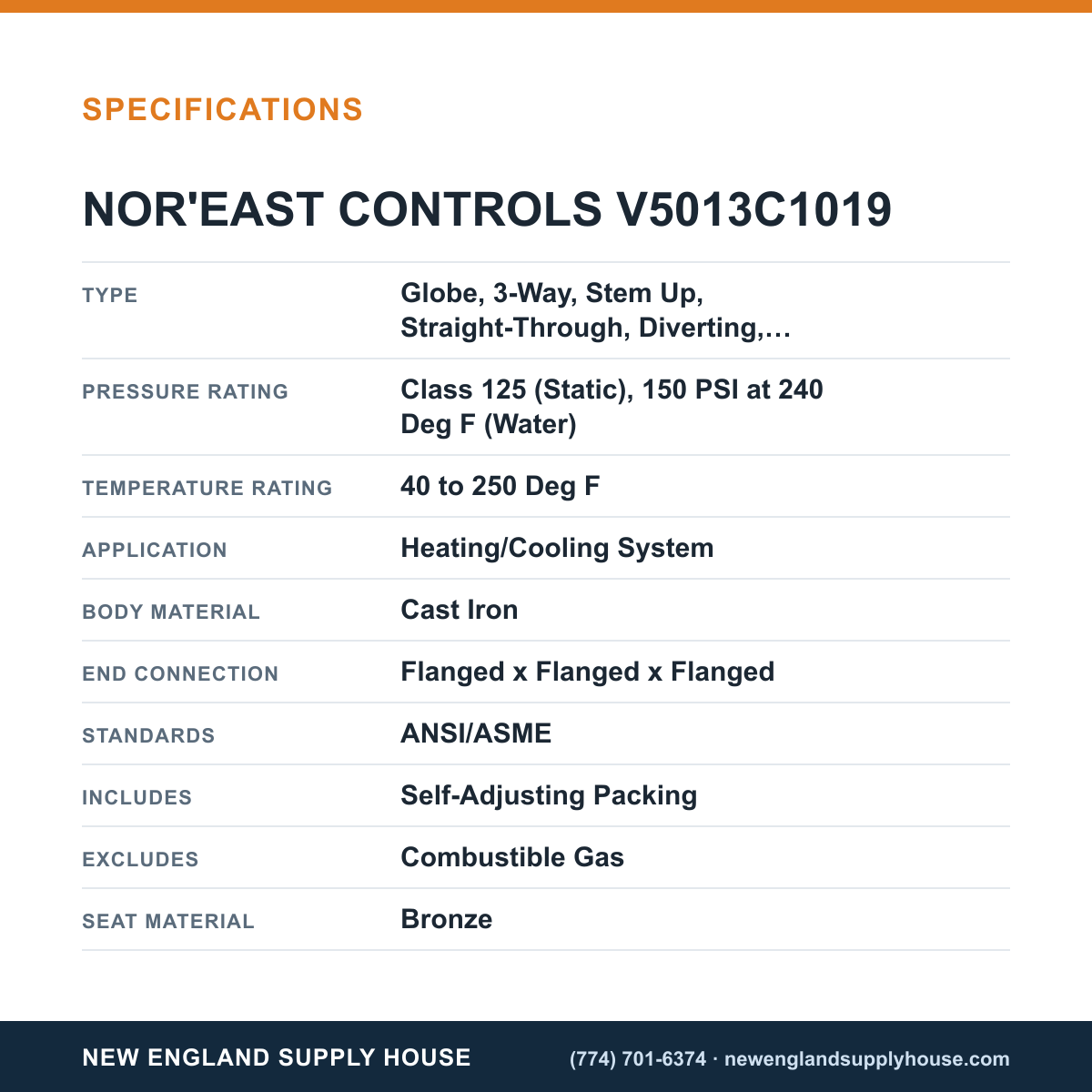

Key specifications and capabilities include:

• Nominal Size: 3 Inch
• End Connections: Flanged x Flanged x Flanged
• Body Material: Cast Iron
• Stem Material: Stainless Steel
• Seat Material: Bronze
• Seal Material: Non-Stick Cone
• Disc Material: Bronze
• Temperature Range: 40 to 250 Deg F
• Pressure Rating: Class 125 (Static); 150 PSI at 240 Deg F (Water)
• Flow Capacity: 100 Cv
• Stem Travel: 3/4 Inch
• Bonnet Size: 1-3/8
• Maximum Differential Pressure Rating: 20 PSID
• Inclusions: Self-Adjusting Packing
• Standards: ANSI/ASME
• Applications: Heating/Cooling System
• Compatibility: Used With Q5001 Modutrol IV Motor, Q5020/Q5024 Globe Valve Linkage, ML6984/ML7984 Direct-Coupled Actuators, ML6420/ML6421A/ML6425/ML7420/ML7421A/ML7425 Actuators

Designed to meet ANSI/ASME standards and engineered for dependable control, this valve combines robust construction with versatile installation options to optimize HVAC performance and efficiency.
