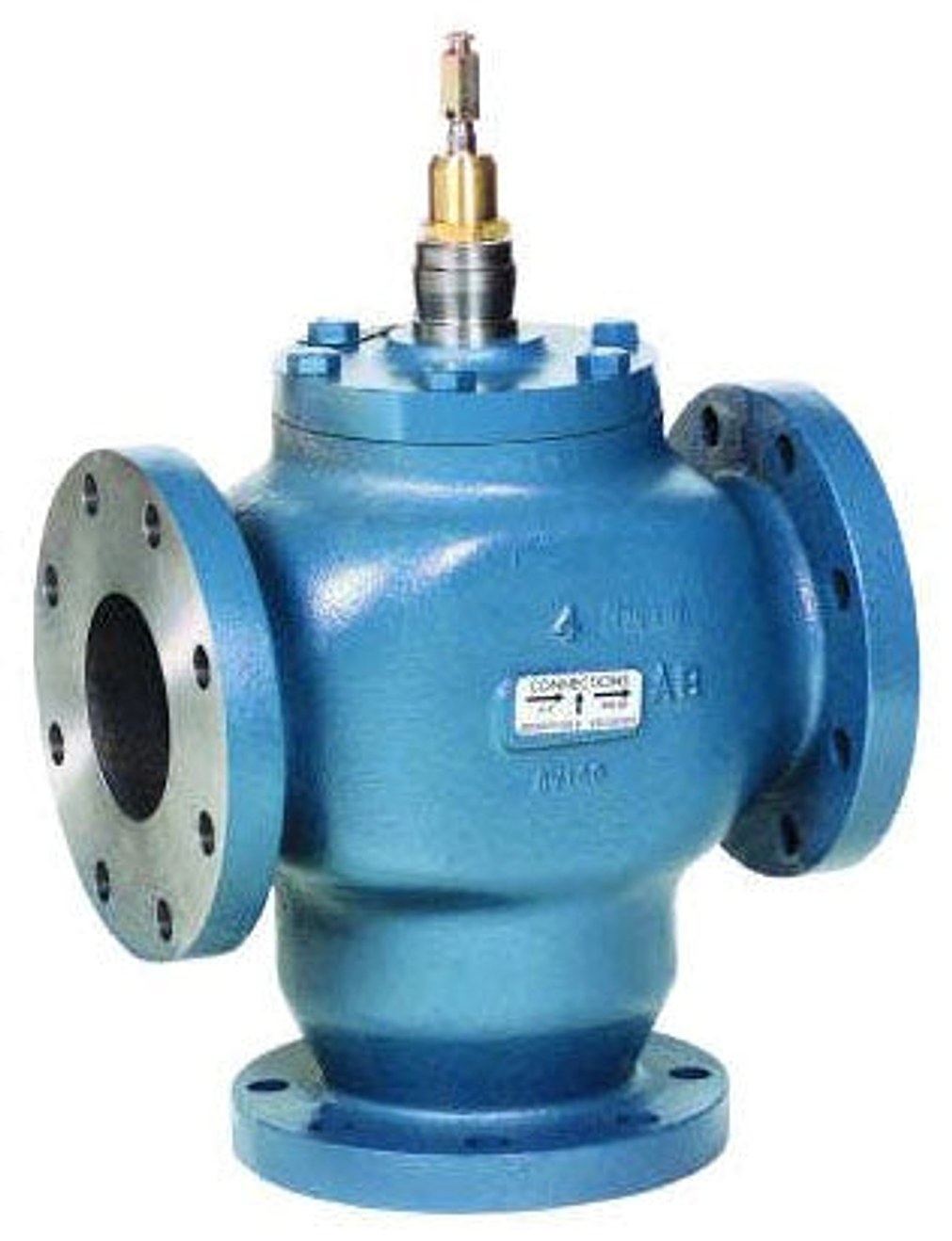

Nor'east Controls V5013C1027 Globe Valve

Nor'east Controls V5013C1027 Globe Valve delivers precise, reliable flow control for heating and cooling systems.

This 4 inch nominal size, 3-Way globe valve supports straight-through and diverting flow with stem-up operation and flanged end connections on all ports.

Built with a cast iron body, stainless steel stem, bronze seat, and a non-stick cone seal, it withstands temperatures from 40 to 250 Deg F and handles up to Class 125 static, or 150 PSI at 240 Deg F for water.

Designed to meet ANSI/ASME standards, the valve offers reliable performance with self-adjusting packing, a 1-1/2 inch stem travel, and a maximum differential pressure rating of 20 PSID.

Inclusions and compatibility ensure easy installation with the Q5001 Modutrol IV Motor, Q5024 globe valve linkage, and ML6421B/ML7421B actuators for seamless integration into control systems.

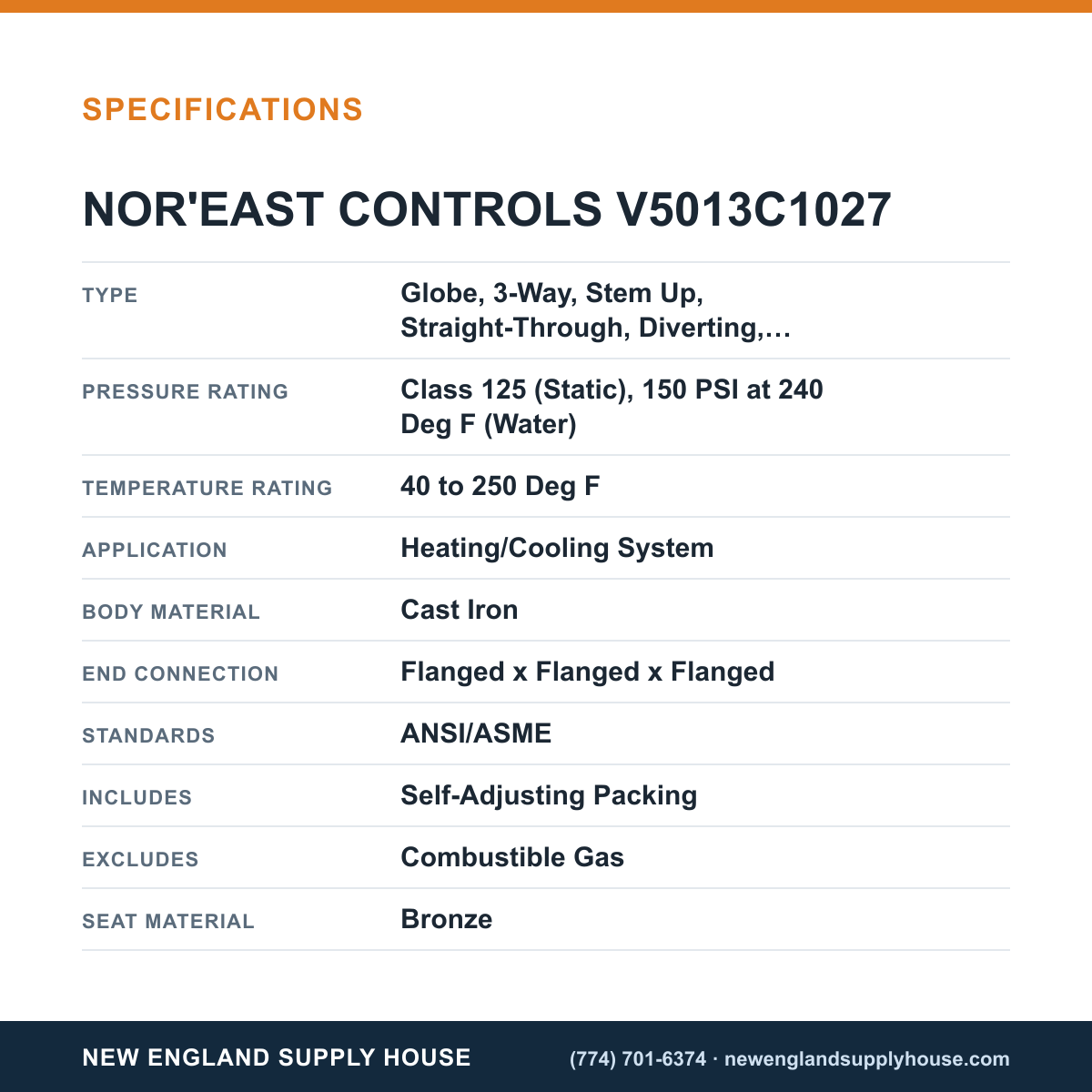

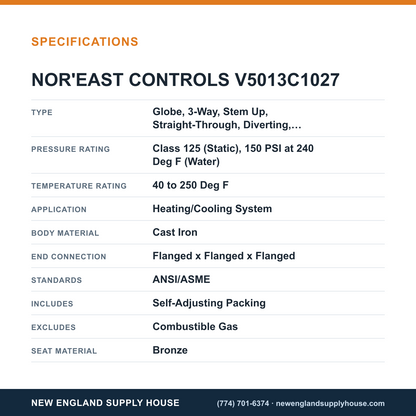

• Nominal Size: 4 Inch
• Type: 3-Way Globe Valve (Straight-Through & Diverting)
• End Connections: Flanged x Flanged x Flanged
• Body Material: Cast Iron
• Stem Material: Stainless Steel
• Seat Material: Bronze
• Seal Material: Non-Stick Cone
• Disc Material: Bronze
• Temperature Rating: 40–250 Deg F
• Pressure Rating: Class 125 (Static); 150 PSI at 240 Deg F (Water)
• Flow Capacity: 160 Cv
• Maximum Differential Pressure: 20 PSID
• Bonnet: Flanged; Bonnet Size 1-7/8
• Standards: ANSI/ASME
• Actuator Compatibility: Q5001 Modutrol IV Motor, Q5024 Linkage, ML6421B/ML7421B
