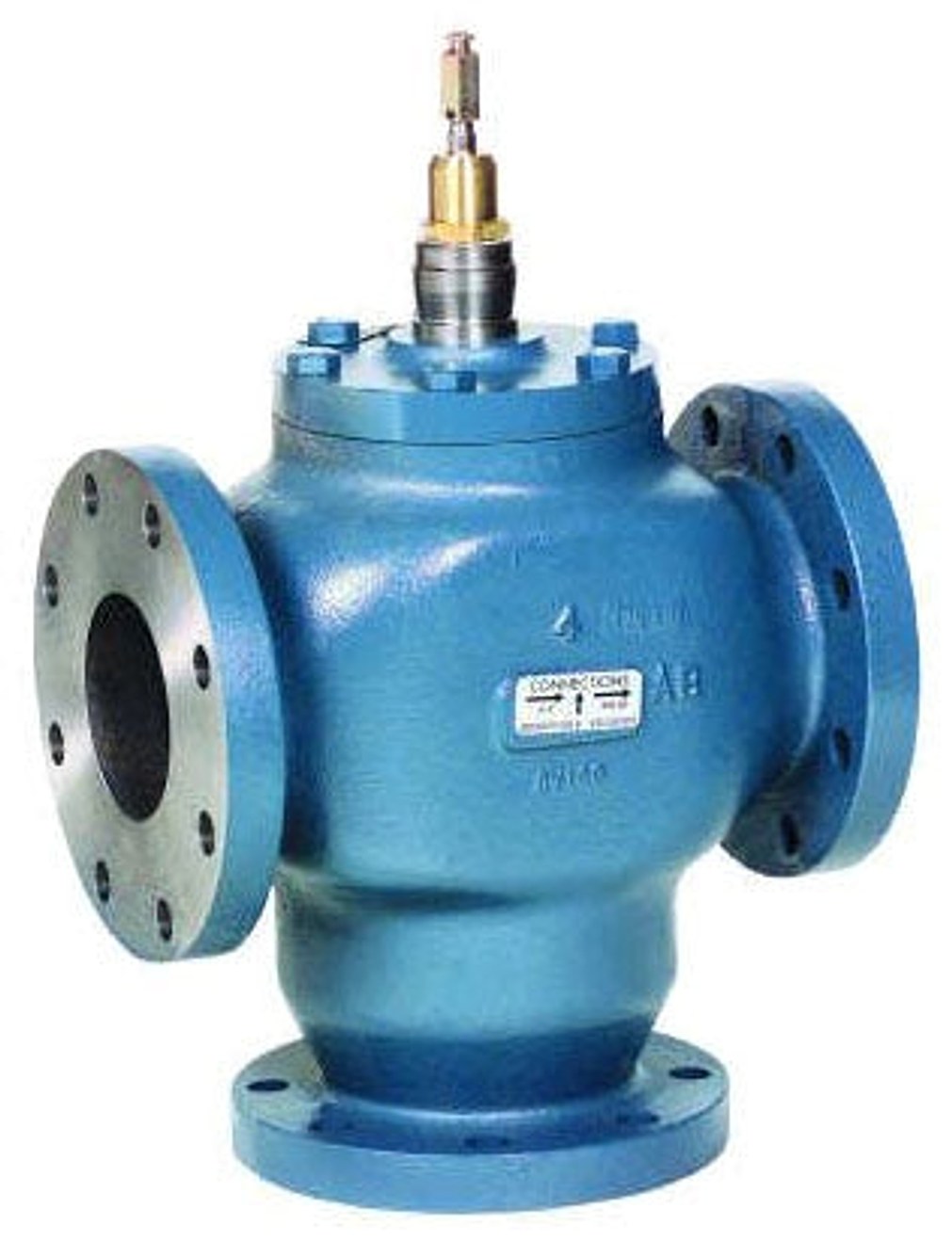

Nor'east Controls V5013C1043 Globe Valve

The Nor'east Controls V5013C1043 Globe Valve is a rugged 3-Way globe valve engineered for heating and cooling systems. With stem-up operation and straight-through, diverting flow paths, this 6-inch nominal valve features flanged end connections on all ports for easy integration into standard pipelines.

Built to endure harsh service, the valve uses a cast iron body, stainless steel stem, bronze seats, and a bronze disc with a non-stick cone seal for smooth, low-friction operation. Operating temperatures from 40 to 250°F and a static Class 125 rating (150 PSI at 240°F for water) ensure dependable performance in HVAC and process applications.

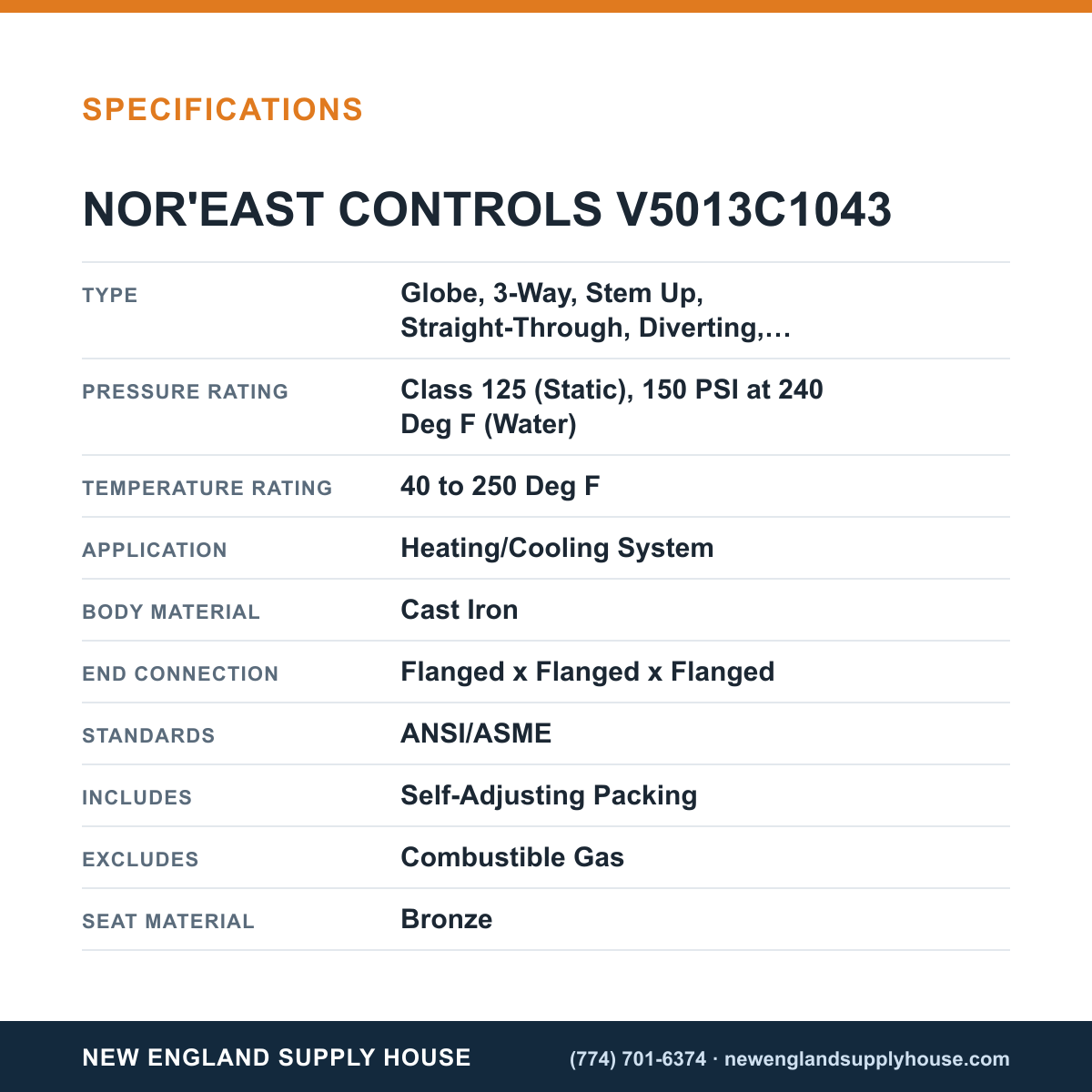

• Nominal size: 6 Inch; End connections: Flanged x Flanged x Flanged
• Flow characteristics: 3-Way globe valve with straight-through and diverting flow; Flow capacity 360 Cv
• Dimensions: End-to-end distance 16-1/2 Inch; Bonnet size 1-7/8 Inch; Bonnet type Flanged
• Materials: Cast iron body; Stainless steel stem; Bronze seats; Bronze disc; Non-stick cone seal
• Temperature/Pressure: 40–250°F; Class 125 static; 150 PSI at 240°F (water); Maximum differential pressure 20 PSID
• Inclusions/Features: Self-adjusting packing
• Standards & Applications: ANSI/ASME compliant; Suitable for Heating/Cooling systems
• Actuator compatibility: Works with Q5001 Modutrol IV Motor, Q5024 globe valve linkage, ML6421B/ML7421B non-spring return actuators
