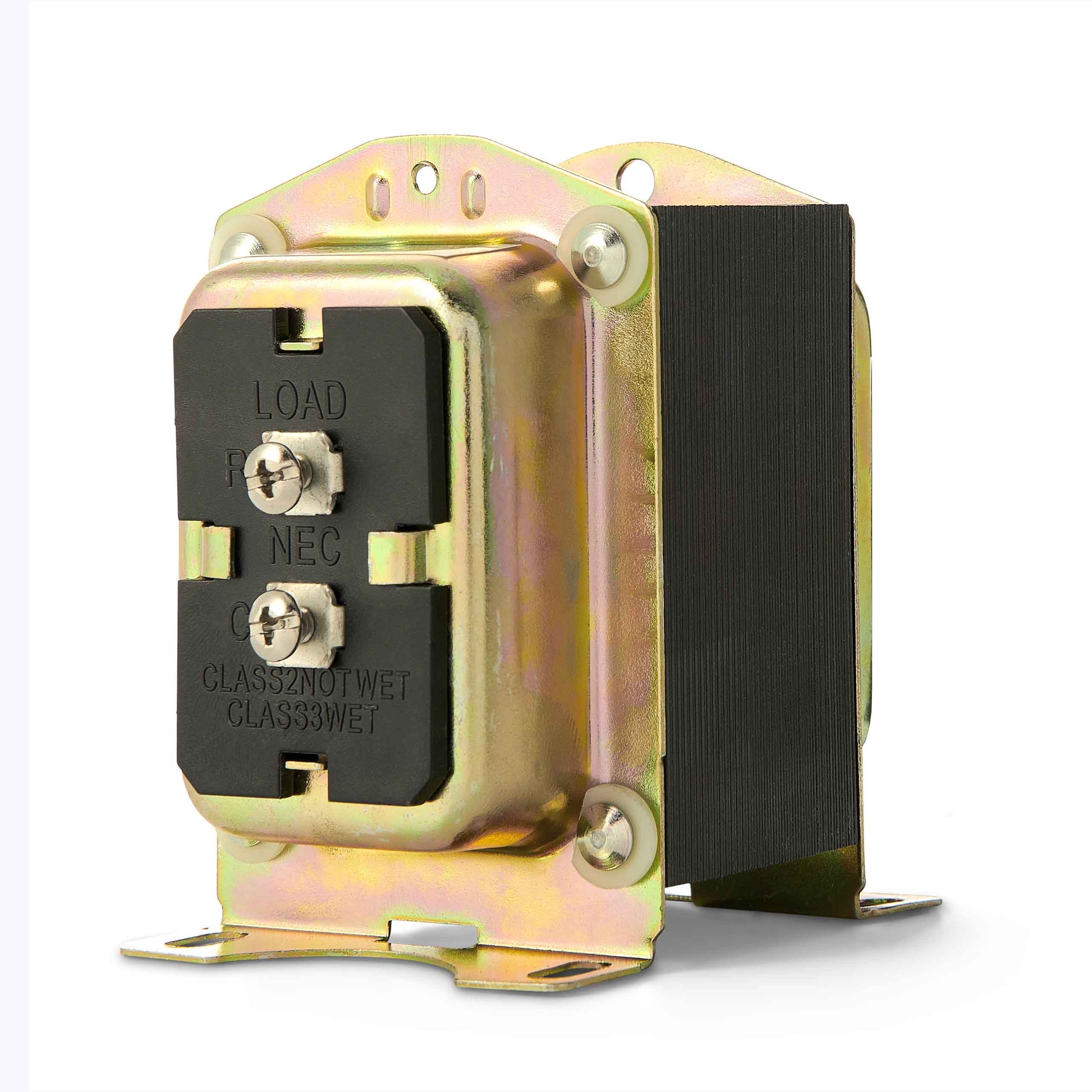

Resideo - Honeywell Home AT150A1007 General Purpose Transformer

General Purpose Transformer by Resideo - Honeywell Home AT150A1007 delivers reliable 24V AC power for HVAC controls, door access, and other low-voltage systems. It accepts 120/208/240 VAC input and provides a 24 VAC secondary, with a 50 VA rating at 60 Hz for steady performance.

Engineered for versatile installation, this transformer features a metal end bell and offers multiple mounting options, including foot, plate, clamp, or panel mount. It carries UL and CSA approvals for safety and compatibility, making it a trusted choice for residential and commercial projects.

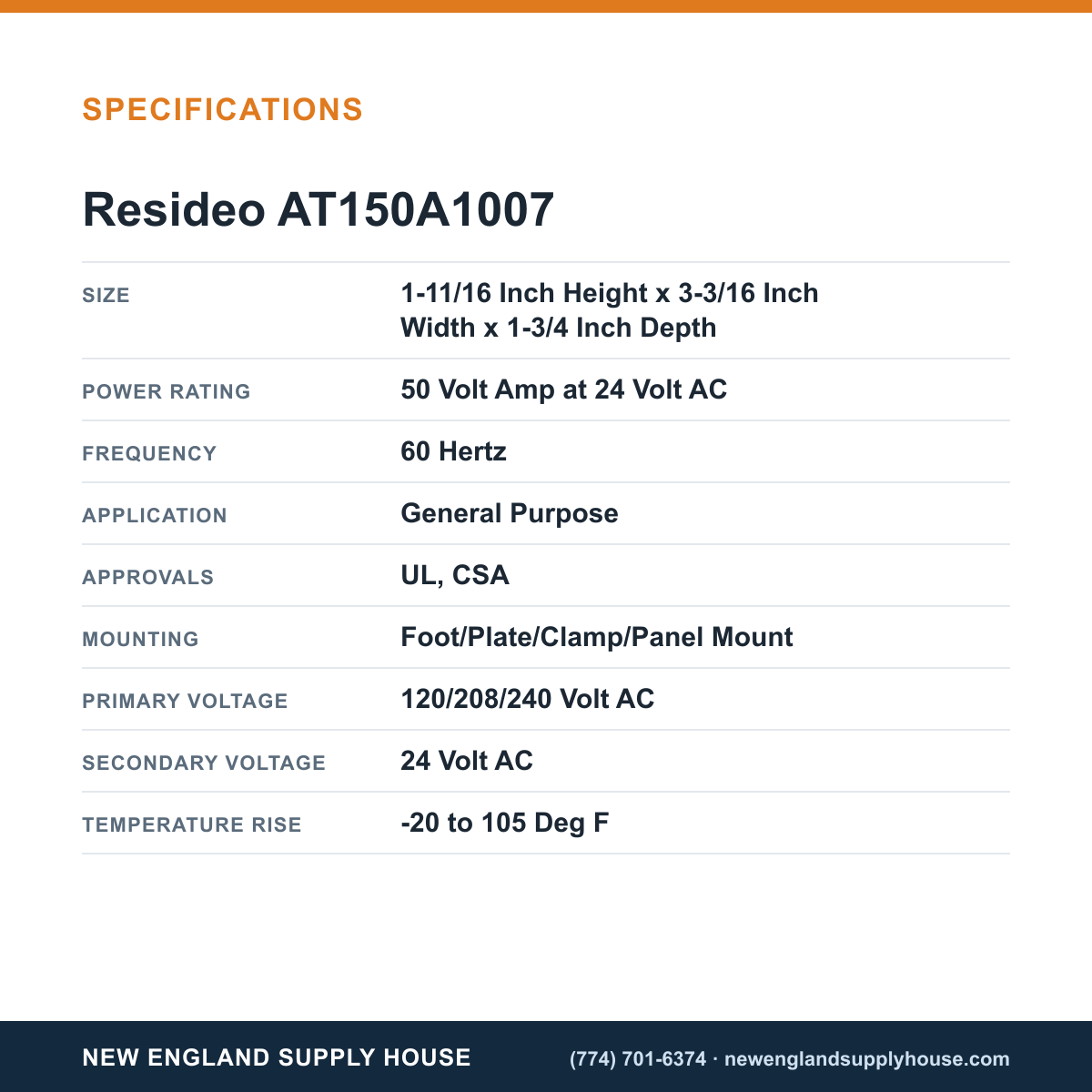

• Primary voltage: 120/208/240 VAC; Secondary: 24 VAC; Frequency: 60 Hz
• Power rating: 50 VA
• Temperature rise: -20 to 105°F
• Compact size: 1-11/16" H x 3-3/16" W x 1-3/4" D
• Mounting: Foot/Plate/Clamp/Pan el Mount
• Approvals: UL, CSA
• Includes metal end bell, fixed 1/4" male quick connect leads, color-coded leadwires

Whether you’re replacing an existing unit or integrating into a new control panel, the AT150A1007 provides dependable, safe power for your low-voltage needs.
