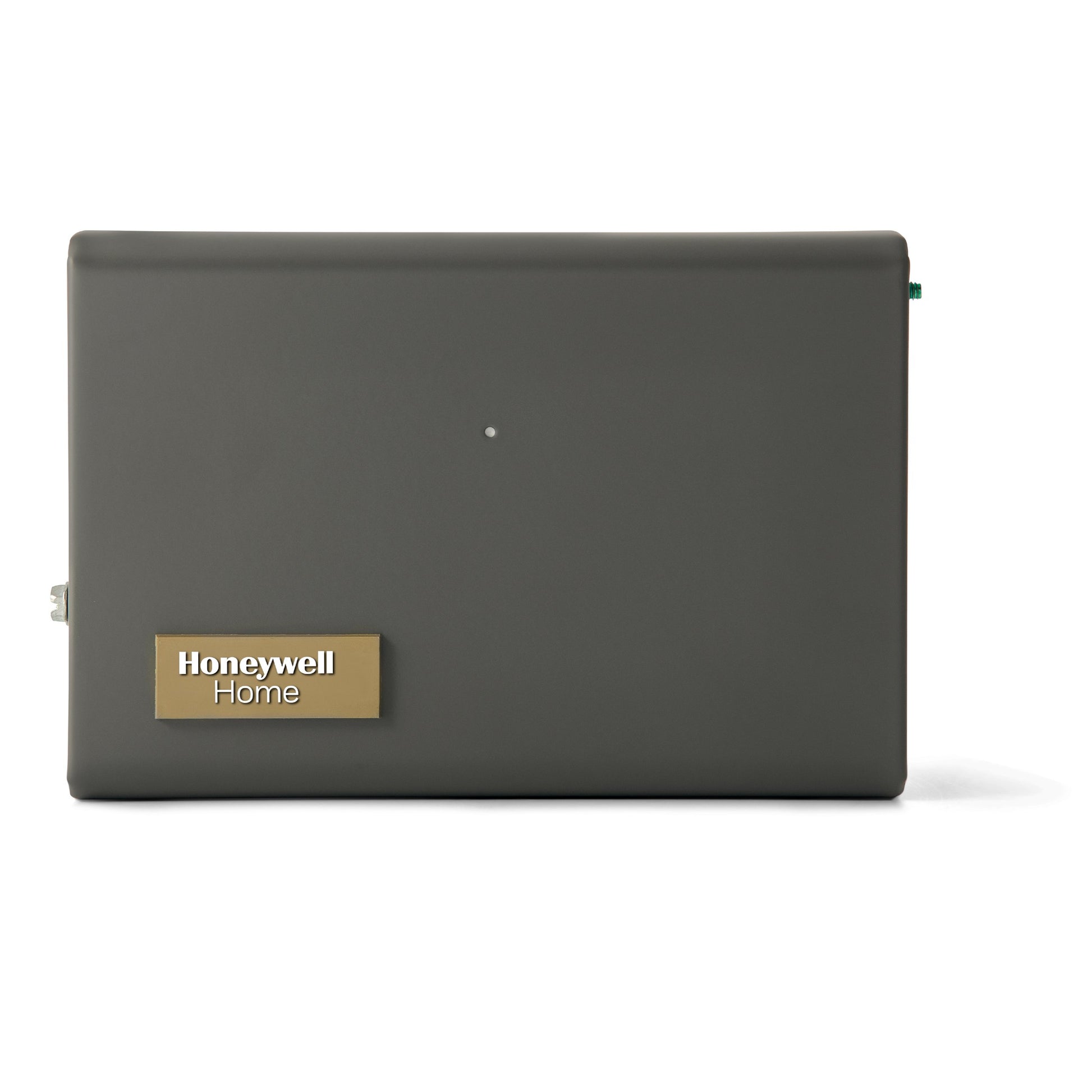

Resideo - Honeywell Home L8148A1017 Aquastat Relay
Resideo - Honeywell Home L8148A1017 Aquastat Relay
Regular price
$295.23 USD
Regular price
Sale price
$295.23 USD
Shipping calculated at checkout.
35 in stock
Quantity
Couldn't load pickup availability
SKU:2252
View full details
![Resideo - Honeywell Home L8148A1017 Aquastat Relay — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032897822942.png?v=1782845963&width=1445)
Aquastat Relay 140-240F Line Volt. Burner Circuit Cold Start Control

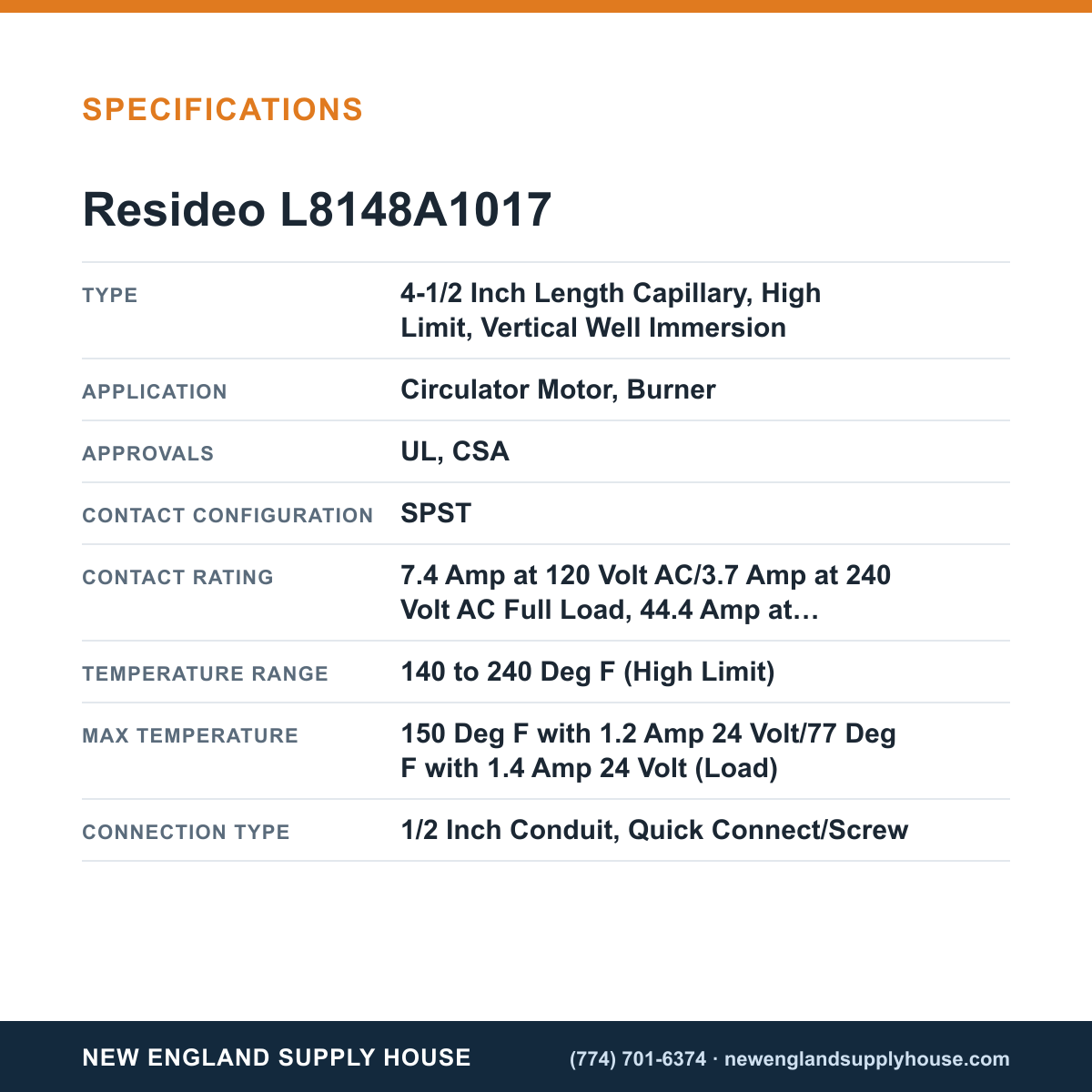

Specifications
| Type | 4-1/2 Inch Length Capillary, High Limit, Vertical Well Immersion |
|---|---|
| Application | Circulator Motor, Burner |
| Approvals | UL, CSA |
| Contact Configuration | SPST |
| Contact Rating | 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor (Burner/Circulator), 0.8 Amp at 24 Volt AC (Low Voltage), 0.25 Amp at 1/4 to 12 Volt DC (Millivoltage), 0.2 Amp (Anticipator Setting) |
| Temperature Range | 140 to 240 Deg F (High Limit) |
| Max Temperature | 150 Deg F with 1.2 Amp 24 Volt/77 Deg F with 1.4 Amp 24 Volt (Load) |
| Connection Type | 1/2 Inch Conduit, Quick Connect/Screw |
