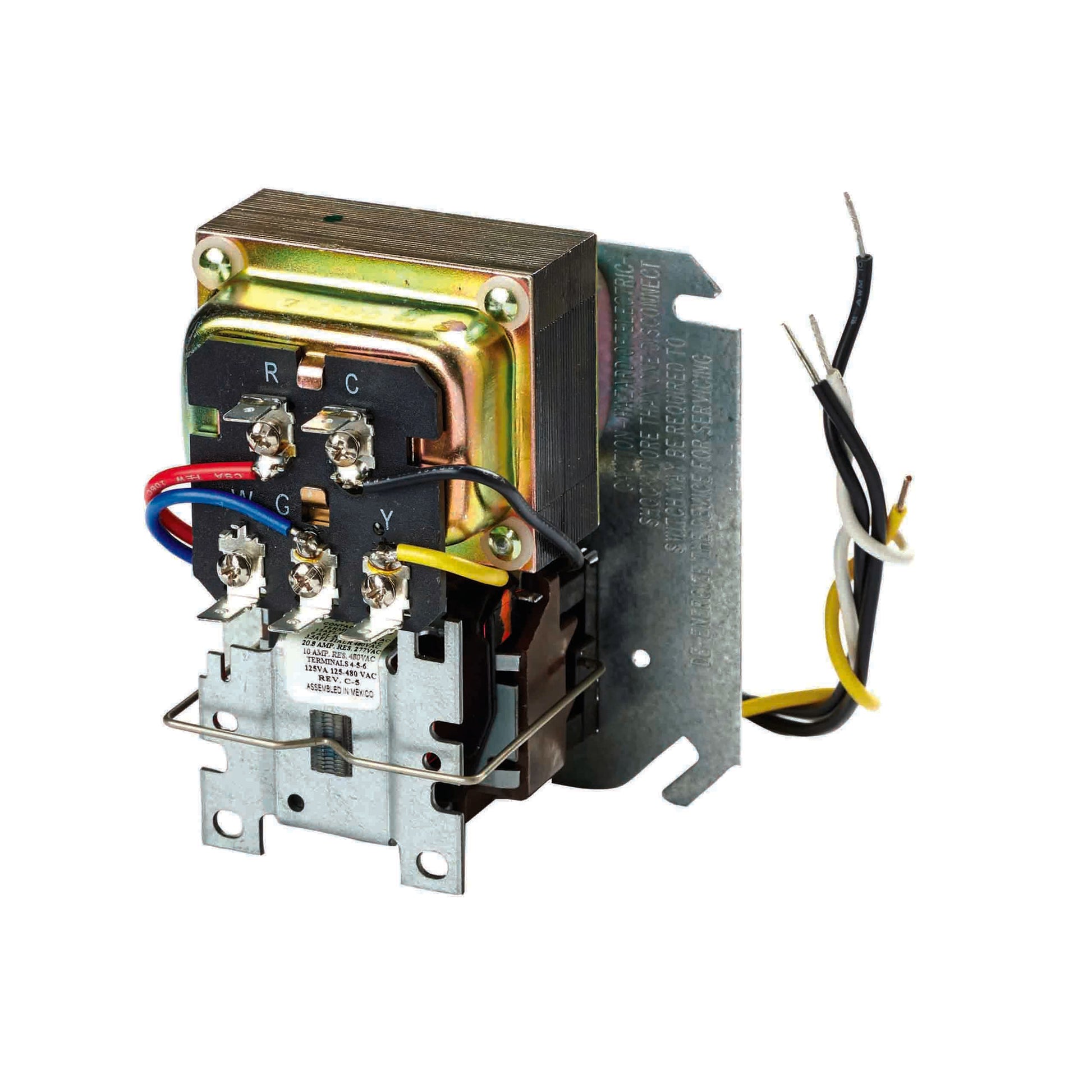

Resideo - Honeywell Home R8285D5001 Fan Control Center

The Resideo - Honeywell Home R8285D5001 Fan Control Center is a robust, AC-operated control module designed to manage furnace and air conditioning fan circuits with reliability. This Fan Control Center operates on 120 Volt AC at 50/60 Hz and uses a DPST contact configuration for independent, safe operation.

Designed for compact installations, it mounts in a 4x4 inch junction box and measures 4-1/2 W x 2-13/16 D x 4-3/16 H. With UL and CSA approvals, this unit delivers dependable, compliant performance for residential or light commercial HVAC applications.

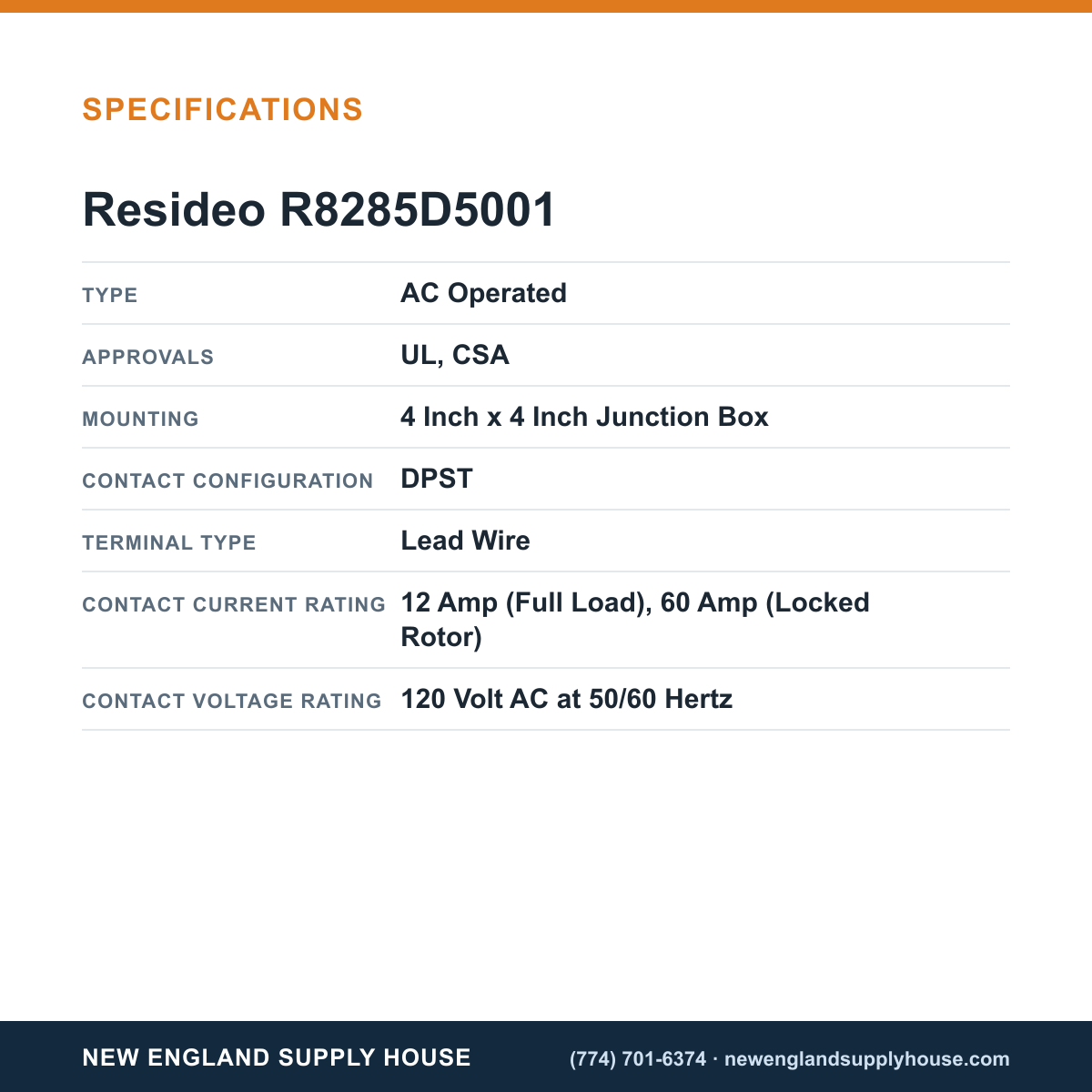

• DPST contact configuration for independent dual-circuit control
• 120V AC input at 50/60 Hz for reliable operation
• 12 A full-load current; 60 A locked rotor capacity
• Lead wire terminal type for straightforward wiring
• Mounting footprint: 4-inch x 4-inch junction box; compact dimensions
• UL and CSA approved for safety and compliance
• Power rating: 11 Watts; 3/4 HP; coil rating 20 VA max inrush, 9 VA sealed
• Supply rating: 50 VA, 26.5 V secondary
