Resideo - Honeywell Home RC840T-120 Electric Heating Relay

RC840T-120 Electric Heating Relay from Resideo - Honeywell Home delivers reliable ON/OFF control for residential heating systems. This AC-operated relay uses a 24V AC coil to switch 120V AC loads with a 16 A full-load rating and a 42 A locked-rotor surge capacity, making it a robust choice for HVAC applications. The device supports a 22 A resistive load and includes a transformer for 22 A at 120V AC operation. UL-approved for both US and Canada, it is built to perform in challenging environments from -4 to 140 degrees F and 0–95% relative humidity.

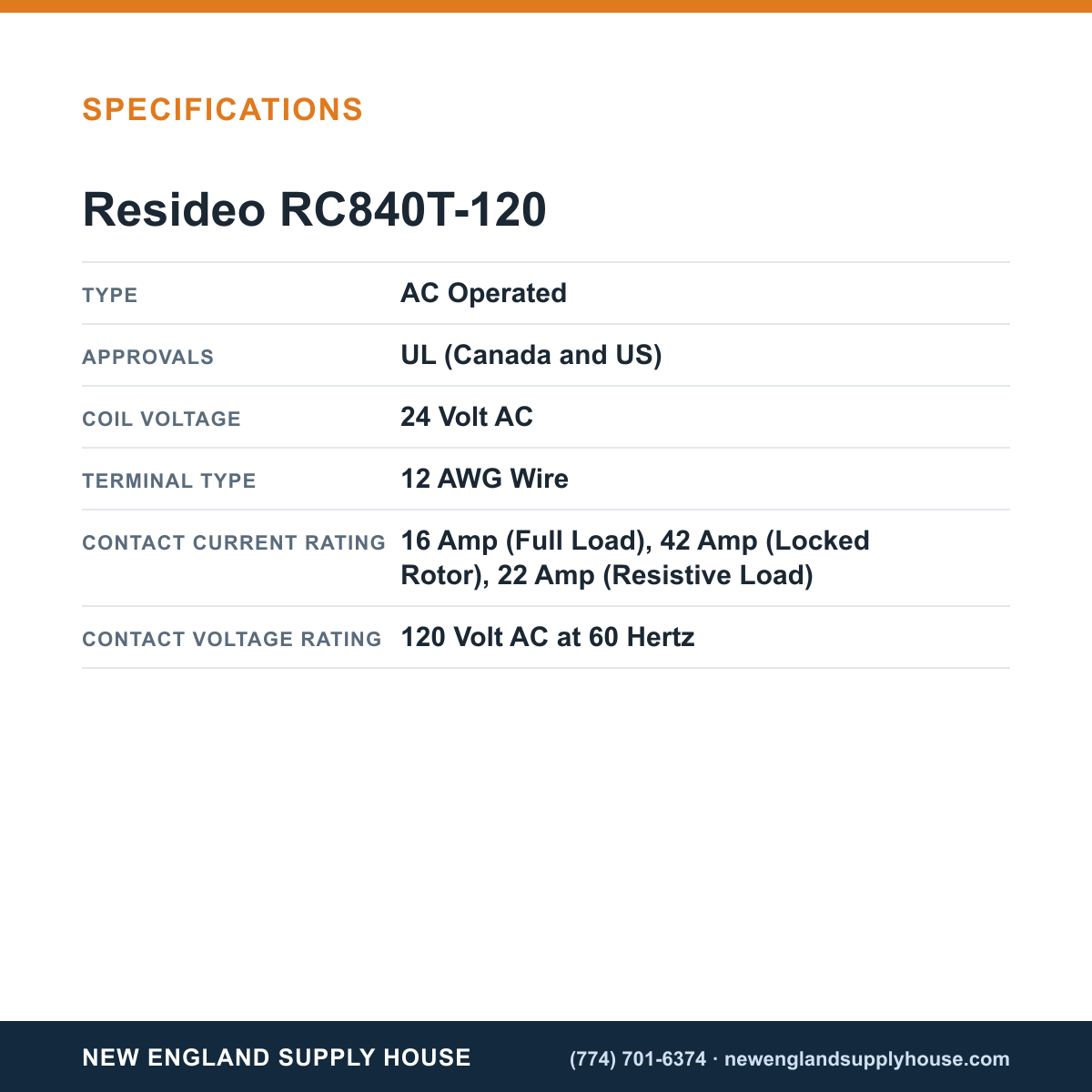

• Coil & load: 24V AC coil, switches 120V AC at 60 Hz with 16 A full-load, 42 A locked-rotor, and 22 A resistive load
• Control type: ON/OFF switching for simple, dependable operation
• Terminals: 12 AWG wiring for secure connections
• Environment & rating: -4 to 140°F; 0–95% RH; UL-approved (Canada and US)
• Transformer: Includes 22 A at 120V AC transformer for easy integration
