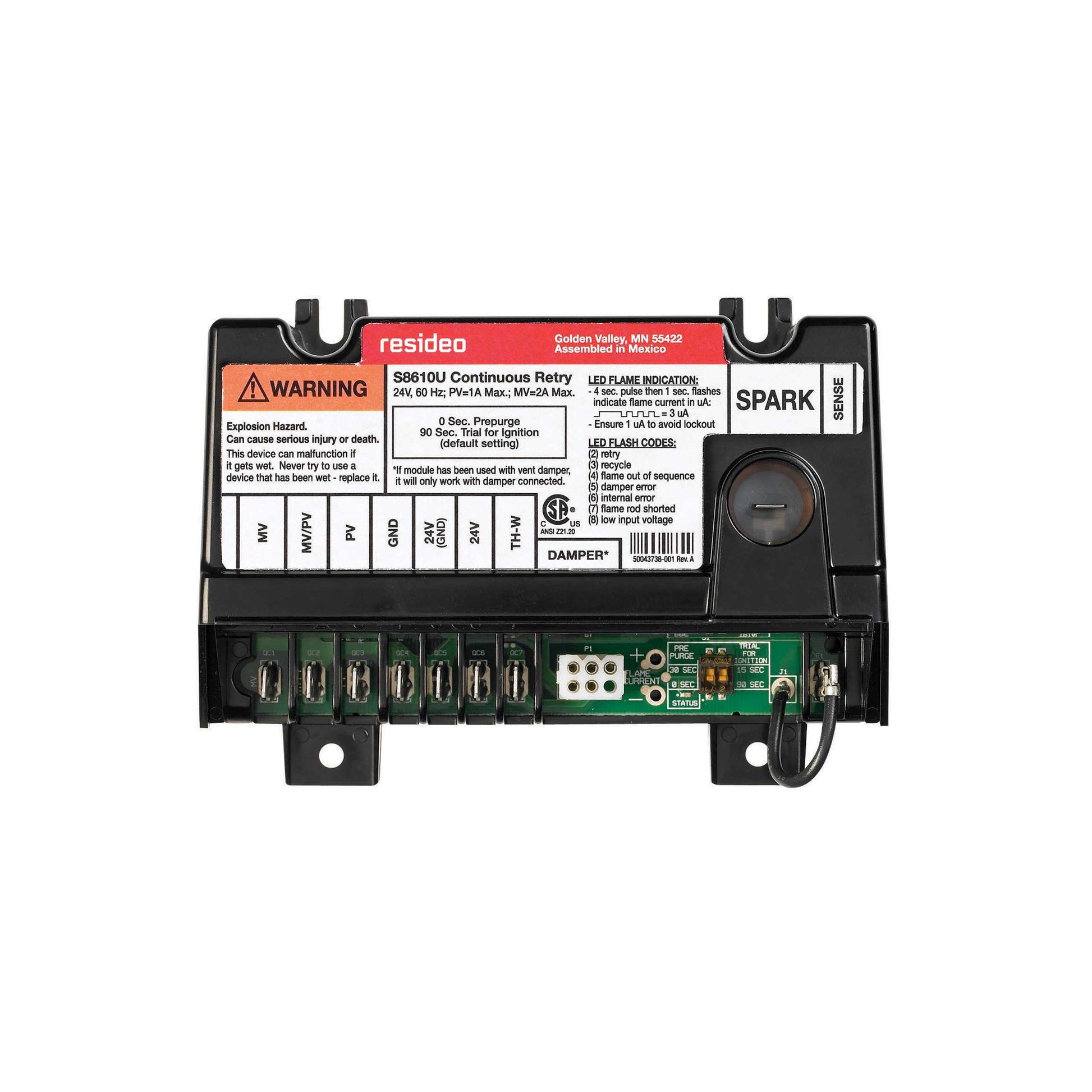

Resideo - Honeywell Home S8610U3009 Ignition Control Module

The Ignition Control Module (S8610U3009) by Resideo—Honeywell Home delivers reliable ignition control for warm air furnaces. This universal ignition control with intermittent pilot support is designed for natural gas or propane gas systems, offering robust performance and easy integration.

The module features an internal high voltage spark generator for dependable ignition, a continuous retry ignition sequence, and configurable prepurge timing to suit your setup. Its flame sense can work with single or dual rod configurations, delivering precise safety shutoffs and fast flame detection.

Key capabilities combine to keep heating systems safe and efficient, including CSA approval for reliability and compatibility with damper connections and automatic vent dampers.

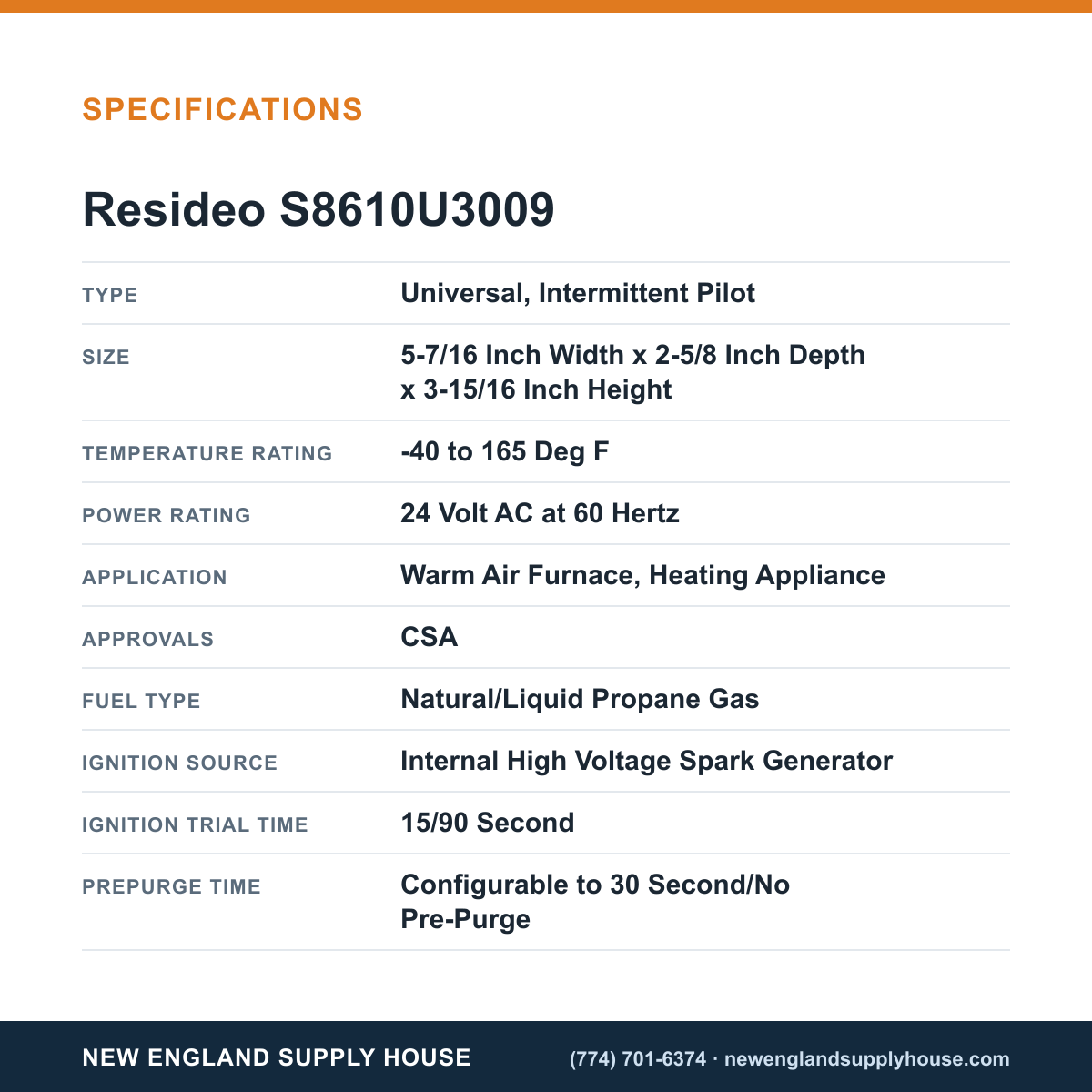

• Type: Universal, Intermittent Pilot
• Fuel Type: Natural Gas / Propane Gas
• Flame Sense: Single or Dual Rod
• Ignition Source: Internal High Voltage Spark Generator
• Ignition Sequence: Continuous Retry
• Trial Time: 15/90 seconds
• Prepurge: Configurable to 30 seconds or No Pre-Purge
• Flame Failure Response Time: 2 seconds
• Valve Rating: 1 A Pilot/2 A Main at 165°F; 1 A Pilot/Main at 175°F
• Power: 24V AC, 60 Hz
• Size: 5-7/16" W x 2-5/8" D x 3-15/16" H
• Temperature Range: -40 to 165°F
• Application: Warm Air Furnace, Heating Appliance
• Approval: CSA
• Includes: Damper Connection, Automatic Vent Damper Plug
