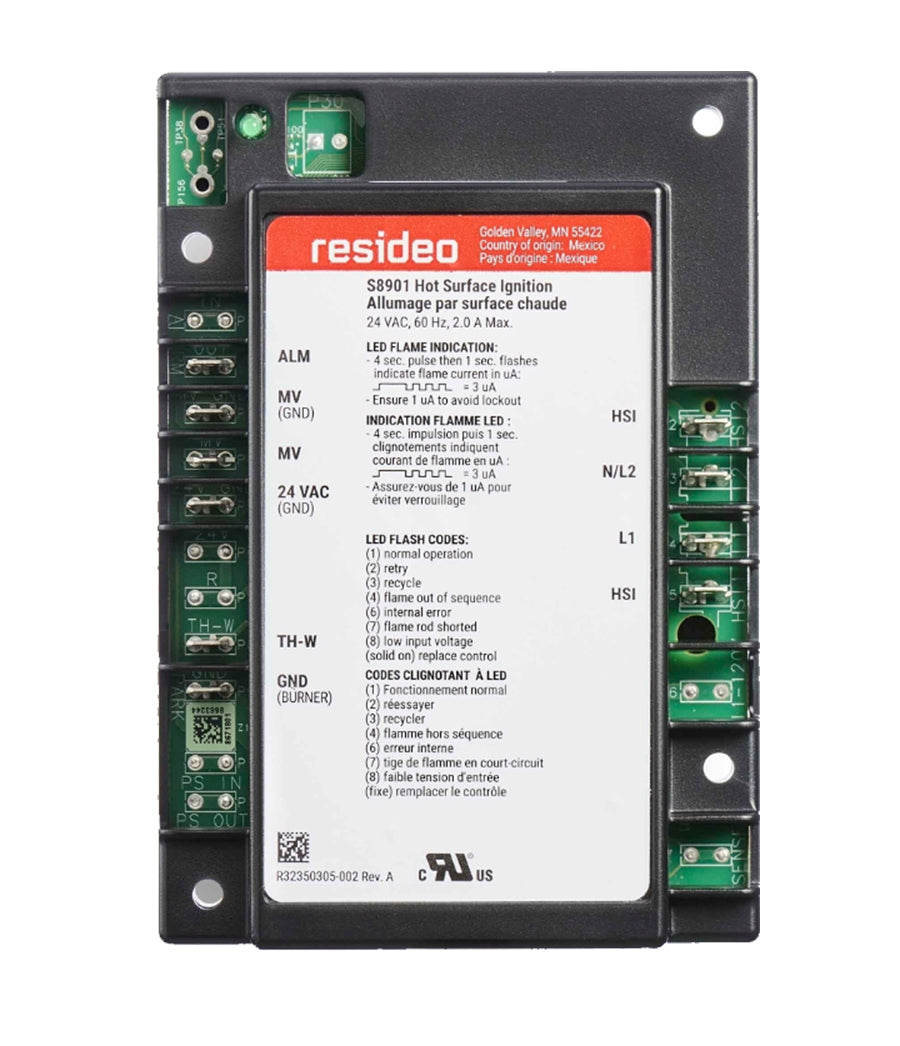

Resideo - Honeywell Home S8901A1020 Hot Surface Ignition Control
Resideo - Honeywell Home S8901A1020 Hot Surface Ignition Control
Regular price
$348.39 USD
Regular price
Sale price
$348.39 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability
- Purchase Orders & Tax-Exempt Welcome Contractors, municipalities, schools and businesses: email a PO, or send your exemption certificate once and tax comes off every order.
SKU:392423
View full details
The Honeywell Home S8901A1020 from Resideo is a hot surface ignition (HSI) control module for gas-fired furnaces, boilers and heating appliances. The low-voltage control energizes a line-voltage hot surface igniter to light the burner and uses a single-rod configuration with one trial for ignition and a 15-second trial time. Flame failure response time is 0.8 second minimum to 1.3 seconds maximum at 5 uA, 60 Hz, and the control is listed to UL 60730-1 and UL 60730-2-5.
The S8901A1020 replaces the S89C1095. Confirm the part number of the control being replaced before ordering. Backed by a one-year manufacturer warranty.
Specifications
| Part Number | S8901A1020 |
|---|---|
| Application | Low voltage, hot surface ignition control module for gas-fired furnaces, boilers and heating appliances |
| Ignition Source | Line Voltage Hot Surface Igniter |
| Flame Failure Response Time | 0.8 sec min 1.3 sec maximum at 5uA/ 60Hz |
| Standards | UL 60730-1, UL 60730-2-5 |
| Configuration | 1 rod, 1 trial for ignition, 15 sec trial time |
| Replaces | S89C1095 |
| Warranty | 1 Year |
