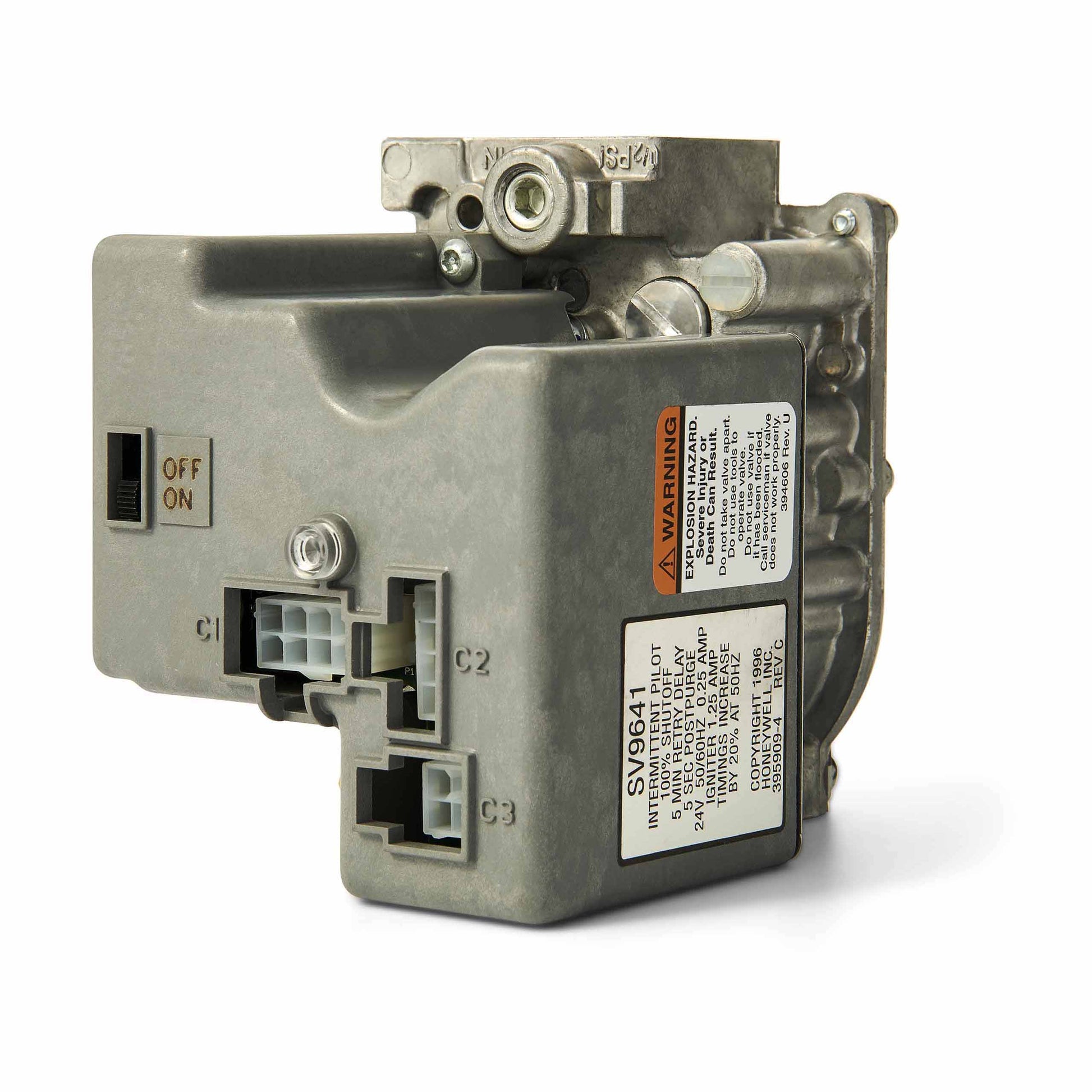

Resideo - Honeywell Home SV9641M4510 Gas Control Valve

Resideo - Honeywell Home SV9641M4510 Gas Control Valve delivers reliable control for gas-fired appliances, from rooftop furnaces to water heaters. This standard-opening, straight-through valve supports 3/4 inch nominal size connections and 24V AC input, ensuring safe, efficient operation across residential and commercial systems.

Designed for versatile deployments, the valve includes essential components and options: natural to liquid propane conversion kit, pilot gas outlet, and reducer bushings for easy installation. It features an intermittent hot surface pilot ignition and a compact body suitable for tight spaces, with CSA compliance for safety and performance.

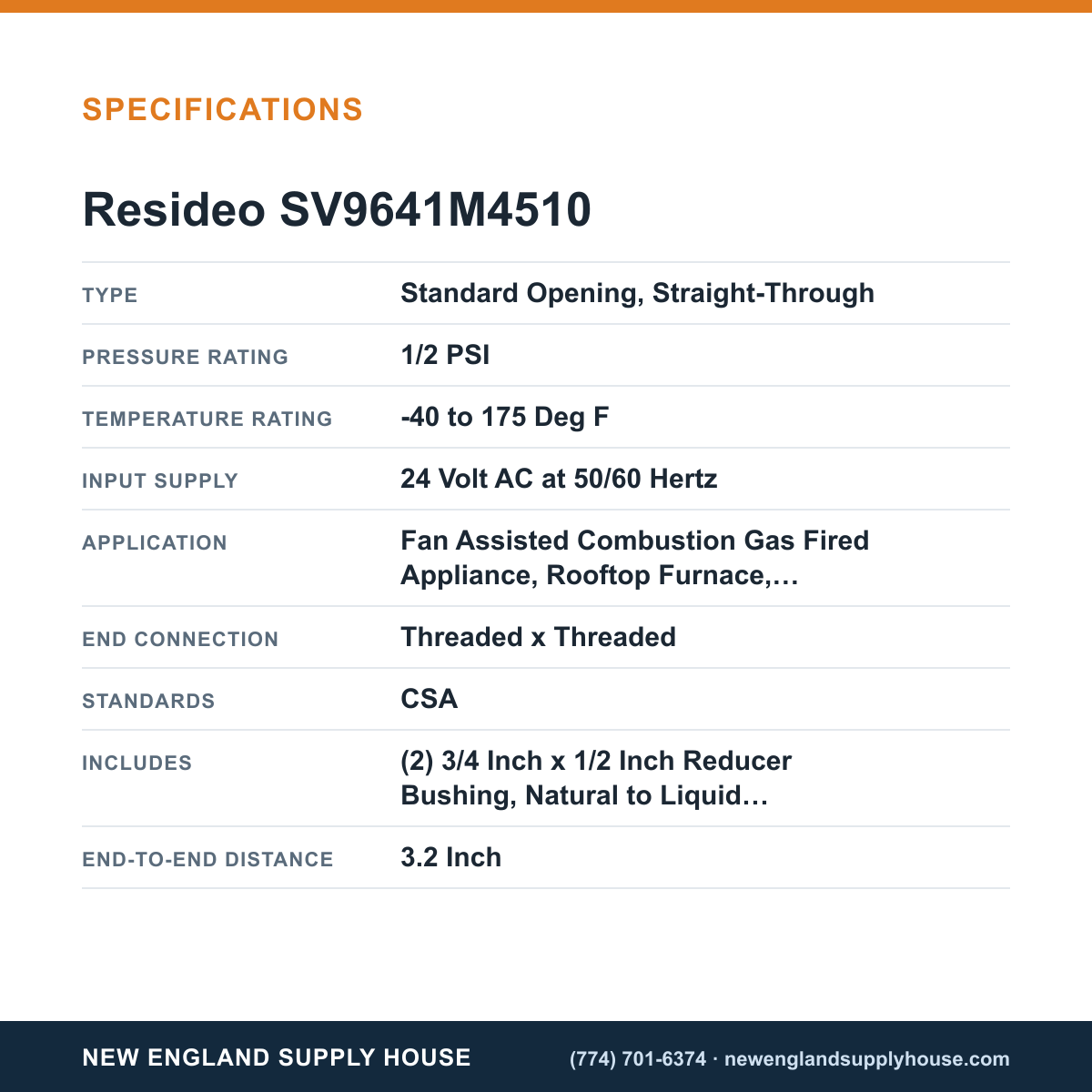

• Nominal size: 3/4 Inch; End connections: Threaded x Threaded
• Input rating: 24V AC @ 50/60 Hz; Operating range: -40 to 175 °F
• Flow capacity: 30,000–415,000 BTU/hr; Pressure: 1/2 PSI
• Ignition: Intermittent Hot Surface Pilot; Pressure tapping: 1/8" Threaded
• Inclusions: Reducer Bushings (3/4" x 1/2"), Propane Conversion Kit, Pilot Gas Outlet
• Applications: Fan-assisted combustion appliances, rooftop furnaces, boilers, unit heaters, infrared heaters, and commercial cooking units

With a compact 4.1" L x 4.9" H footprint and CSA safety standard, the SV9641M4510 is built to deliver consistent performance across a range of heating configurations and fuels.
