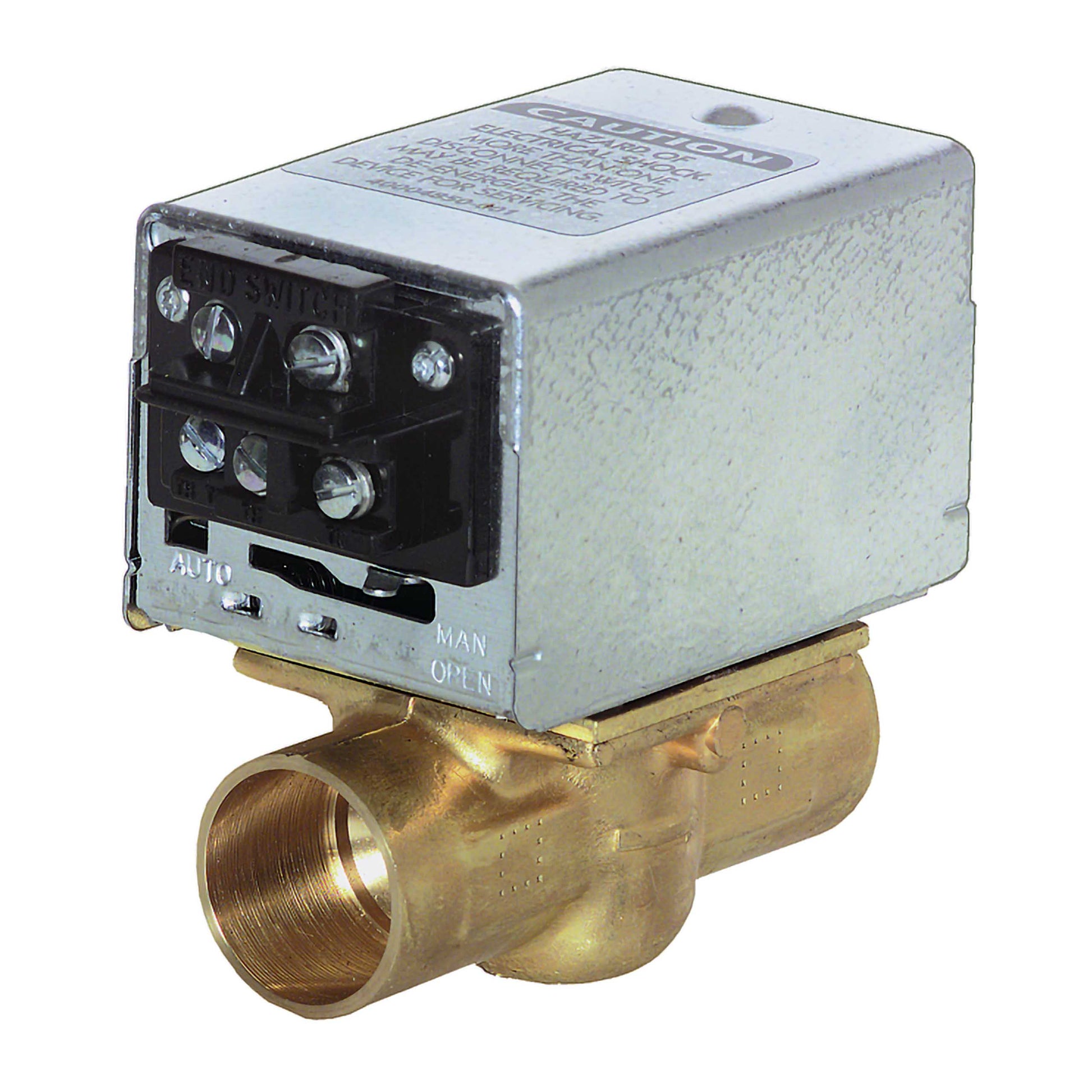

Resideo - Honeywell Home V8043F1036 Motorized Zone Valve

The V8043F1036 Motorized Zone Valve, from Resideo - Honeywell Home, delivers reliable, precise hydronic control for hot-water systems. This 2-way, straight-through valve features a 3/4 inch nominal size with soldered end connections, a 15-second opening time, and a normally closed position for safe zone control. Designed for hot water media, it uses a brass body, stainless steel stem, EPDM packing, and Buna-N plug to ensure durable sealing. The unit operates on low voltage (24 VAC), includes a manual opener and a SPST end switch, and is UL/CSA listed for confident installation in home or light commercial setups.

• 2-Position, Spring Return to Close
• Nominal size 3/4 inch with soldered end connections
• Brass body, stainless steel stem, EPDM packing, Buna-N plug
• Open time 15 seconds; normally closed
• Low-voltage operation: 24 VAC, 7.7 VA, 0.32 A; 18-inch lead; SPST end switch; manual opener
• Ideal for hydronic control and hot water systems; UL/CSA listed

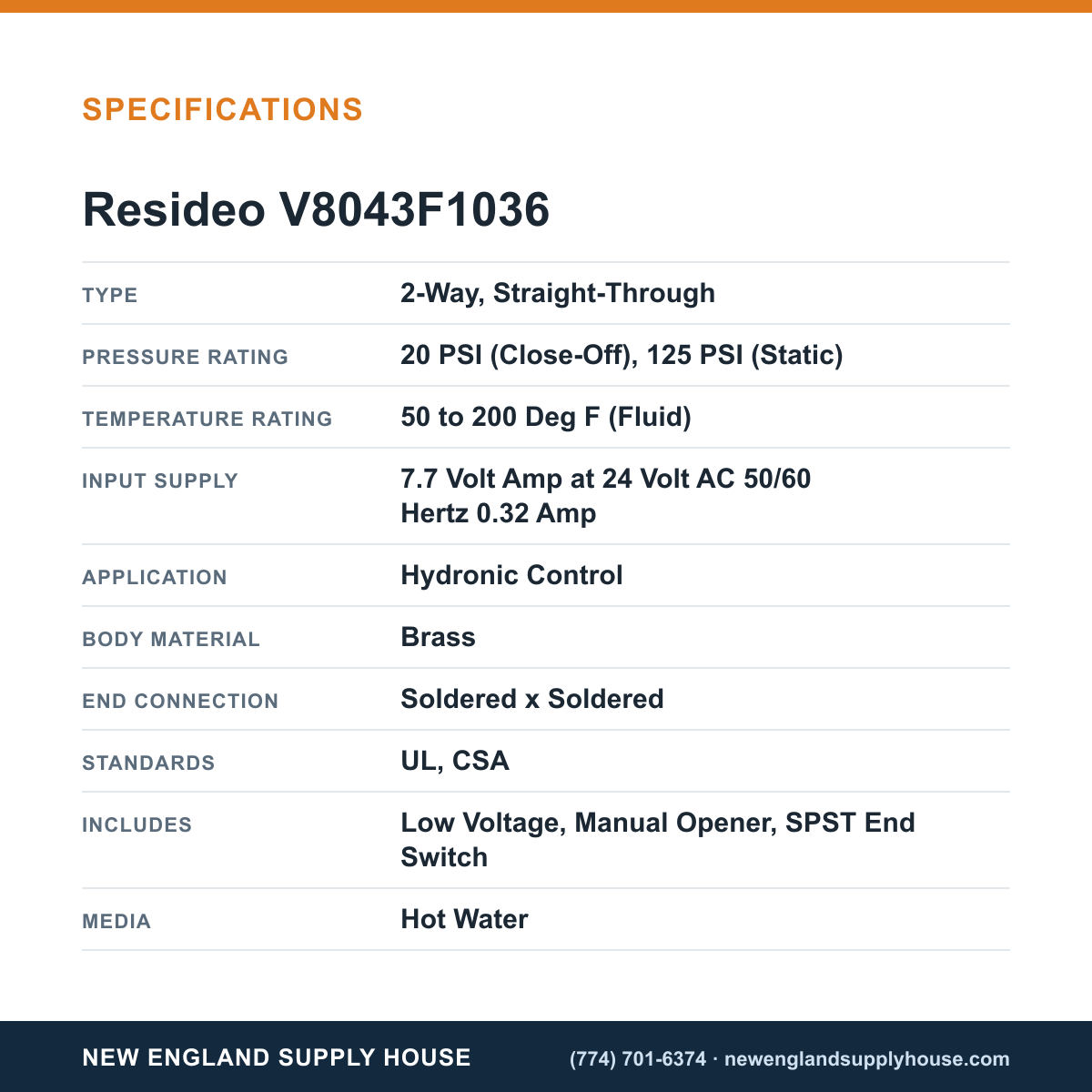

• Flow capacity 3.5 Cv; close-off 20 psi; static 125 psi
• Operating temperature 50–200°F; ambient up to 125°F; humidity 5–95% non-condensing

With robust brass and stainless construction and proven electrical specs, the V8043F1036 is a dependable choice for efficient zoning and energy savings.
