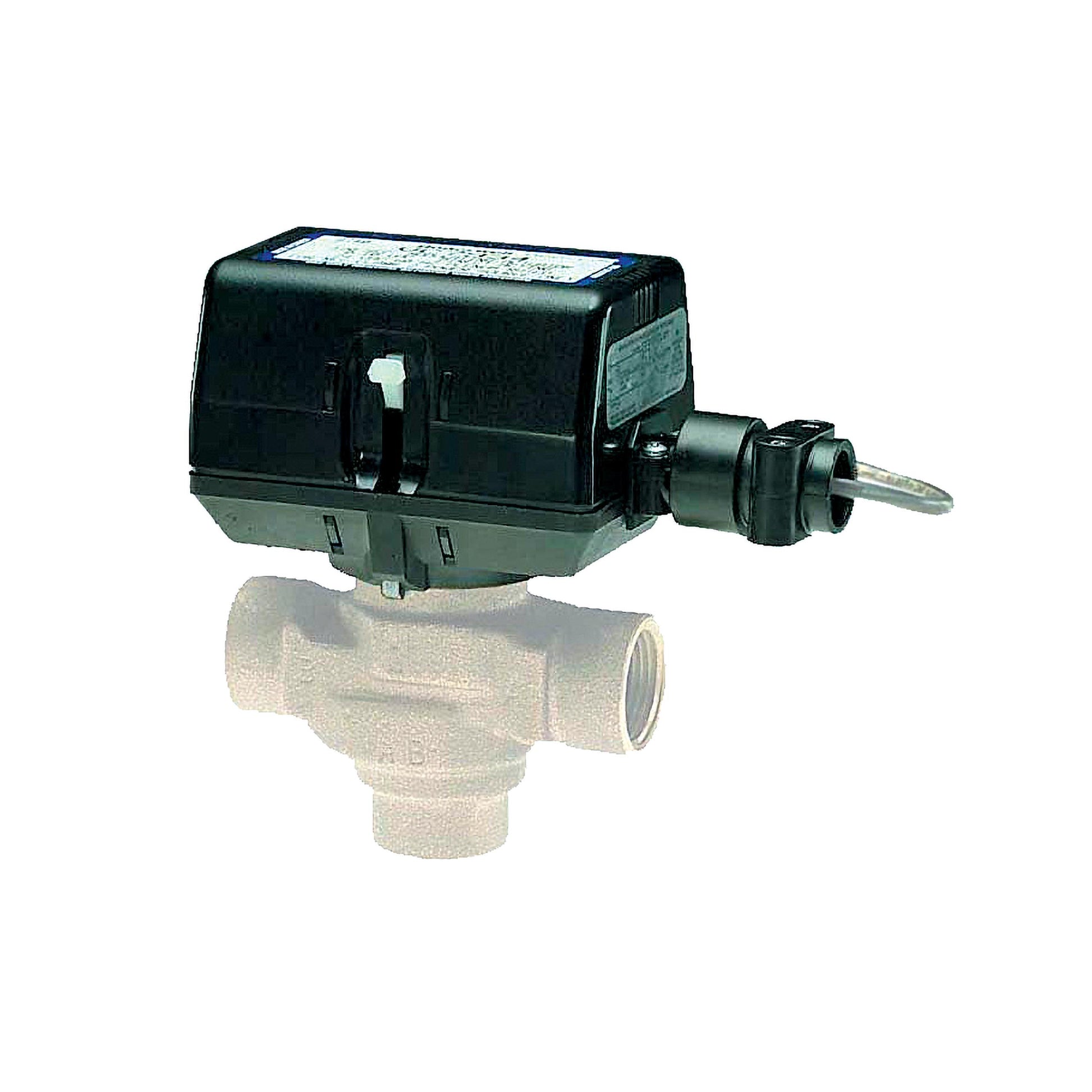

Resideo - Honeywell Home VC8114ZZ11 Cartridge Cage Valve Actuator

VC8114ZZ11 Cartridge Cage Valve Actuator from Resideo - Honeywell Home delivers precise control for HVAC systems with a compact, direct-coupled SPST design.

This low-voltage valve actuator operates on 24V AC, 60 Hz, with a 6 VA driving power, making it ideal for modern HVAC applications requiring reliable SPST performance and direct-coupled control.

The IP40 enclosure protects the mechanism in typical indoor environments. Built to last, the actuator measures 3.7 inches wide by 2.7 inches deep by 2.8 inches high and includes a 5-foot plenum cable plus a flexible conduit adapter for versatile installation.

Designed for 2-position control with lever operation, the VC8114ZZ11 is perfect for cartridge cage valve actuation in HVAC systems, delivering consistent timing and response.

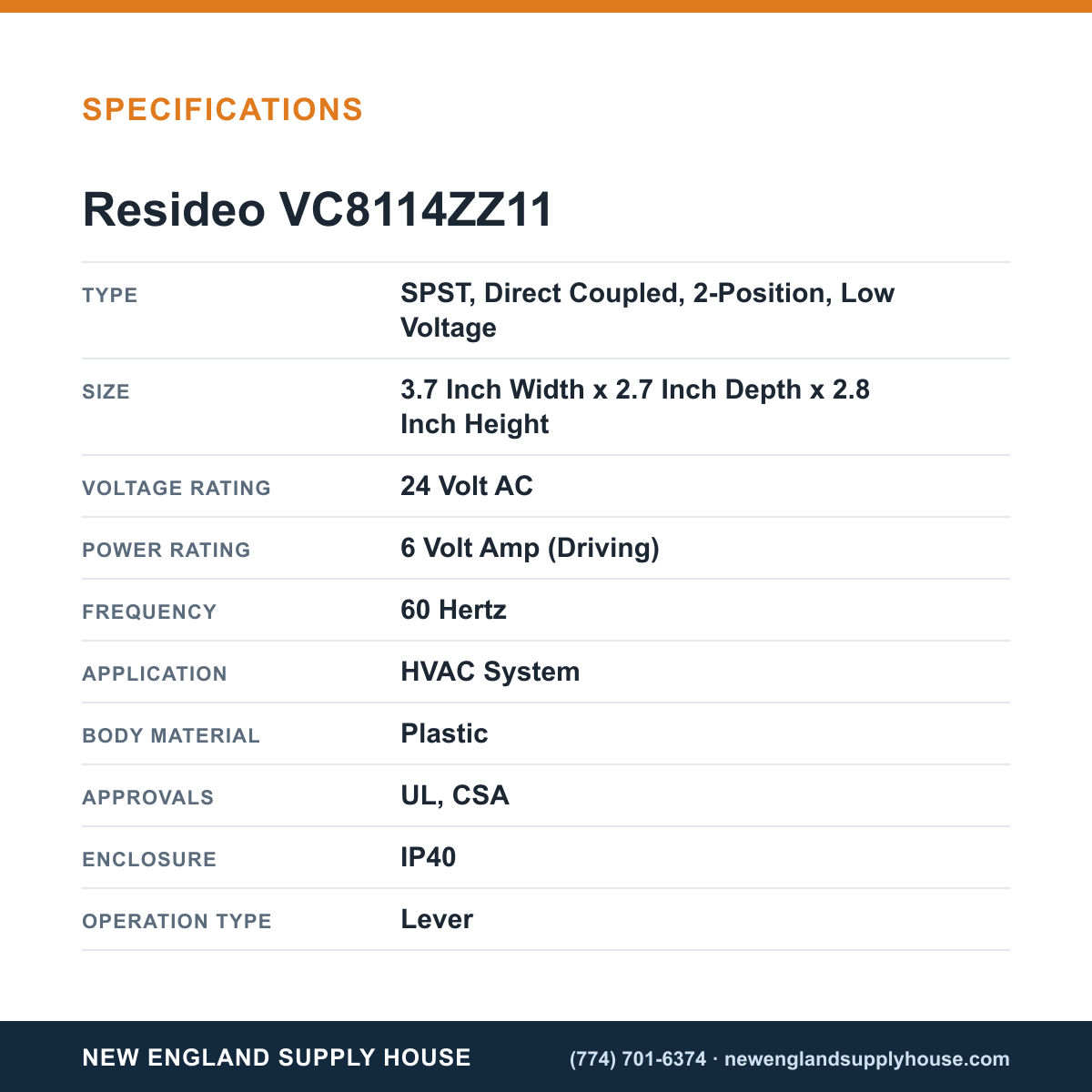

• Type: SPST, Direct Coupled, 2-Position
• Voltage & Power: 24V AC, 60 Hz, 6 VA driving power
• Enclosure: IP40
• Temperature range: 32–150°F
• Connections: 5 ft plenum cable; flexible conduit adapter
• Size: 3.7"W × 2.7"D × 2.8"H
• Compliance: UL, CSA approved
• Performance: 6-second timing; 60 PSID differential pressure rating
