Resideo - Honeywell Home VNTBAL2000 Touchscreen Balancing Control
Resideo - Honeywell Home VNTBAL2000 Touchscreen Balancing Control
Low stock: 1 left
Couldn't load pickup availability
- Purchase Orders & Tax-Exempt Welcome Contractors, municipalities, schools and businesses: email a PO, or send your exemption certificate once and tax comes off every order.
SKU:384089
View full details

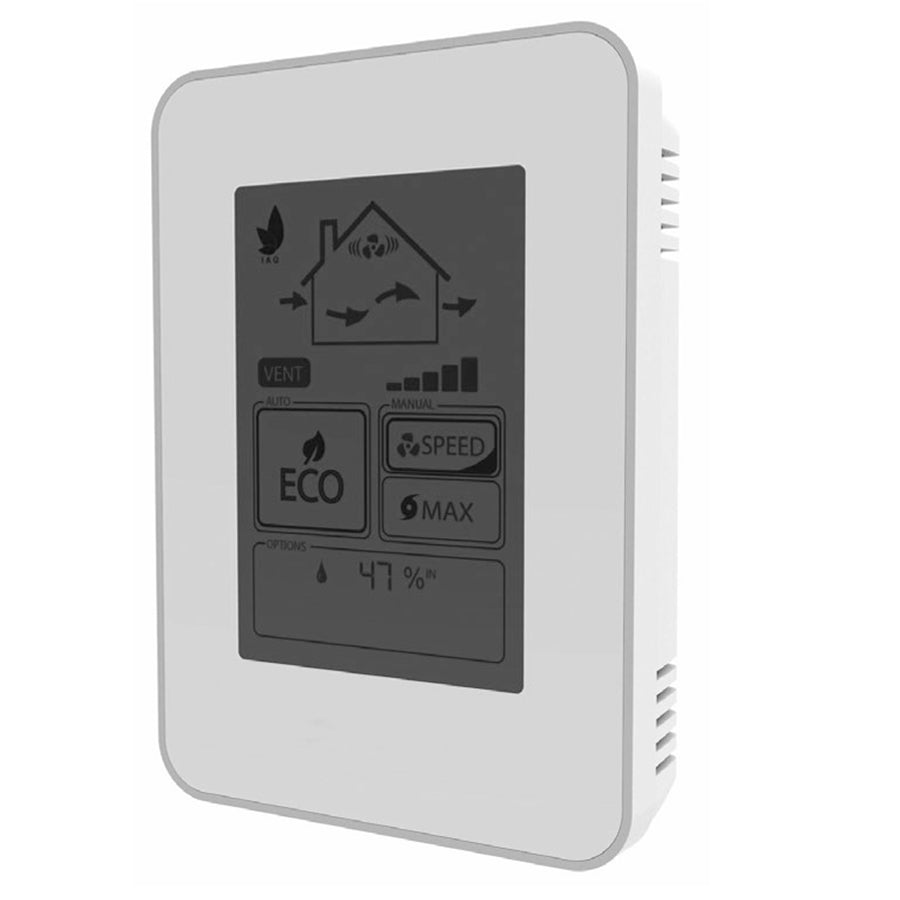

The Honeywell Home VNTBAL2000 from Resideo is a touchscreen balancing control for Honeywell Home heat and energy recovery ventilators. It is compatible with the VNT5150E2000, VNT5150H2000, VNT5200E2000 and VNT5200H2000 ventilators and gives the homeowner a higher level of control over indoor air quality. The ventilator can be run in manual mode or in the automatic ECO mode. The control has a 2 in. x 3 in. touchscreen with a blue backlight, communicates with the ventilator over RS-485 Modbus, is powered by 24 VDC and connects through a 4-wire screw terminal that accepts up to 18 AWG wire.
Package dimensions are 4.5 x 3.5 x 1 in. and shipping weight is 2 lbs. Covered by a 2-year manufacturer warranty.
Specifications
| Part Number | VNTBAL2000 |
|---|---|
| Type | Touchscreen Balancing Control |
| Compatible With | VNT5150E2000, VNT5150H2000, VNT5200E2000, VNT5200H2000 |
| Touch Screen Dimensions | 2 in. x 3 in. (5 cm x 7.5 cm) |
| Communication | RS-485 Modbus |
| Power | 24 VDC |
| Connector | 4-wire screw terminal, up to 18 AWG |
| Warranty | 2 Years |
