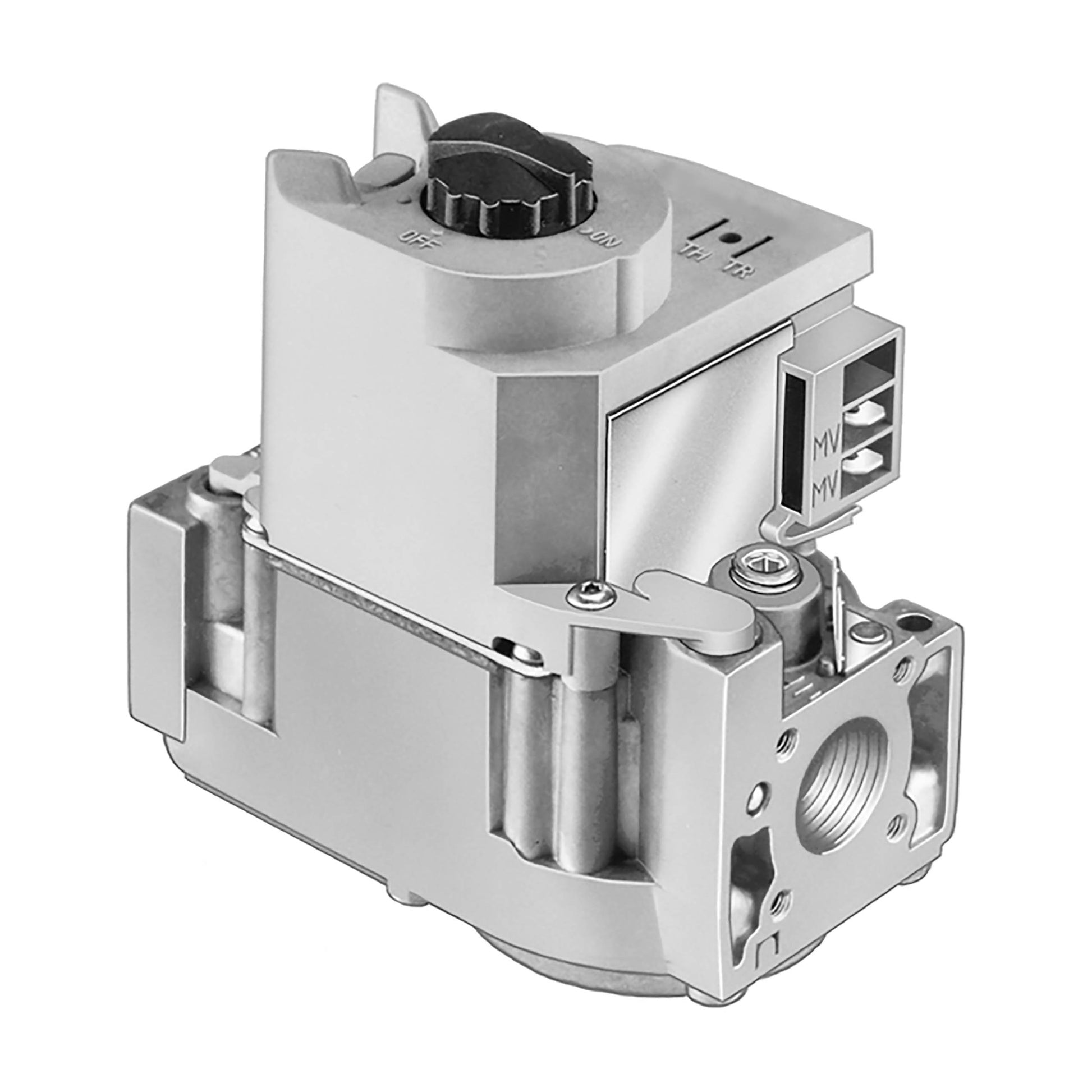

Resideo - Honeywell Home VR8205A2024 Solenoid Gas Valve

Solenoid Gas Valve VR8205A2024 from Resideo Honeywell Home is a direct-acting, 1-Stage, diaphragm-based valve designed for residential gas-fired appliances. This 24V AC (60 Hz) valve delivers reliable automatic control with a compact form factor and flexible mounting options. Engineered to meet UL, CSA, and AGA standards, it provides dependable safety and compatibility with a wide range of home gas systems.

The 1/2 inch port connections, 1/2 psi pressure rating, and a temperature range of 0 to 175°F ensure safe, steady operation across typical home environments.

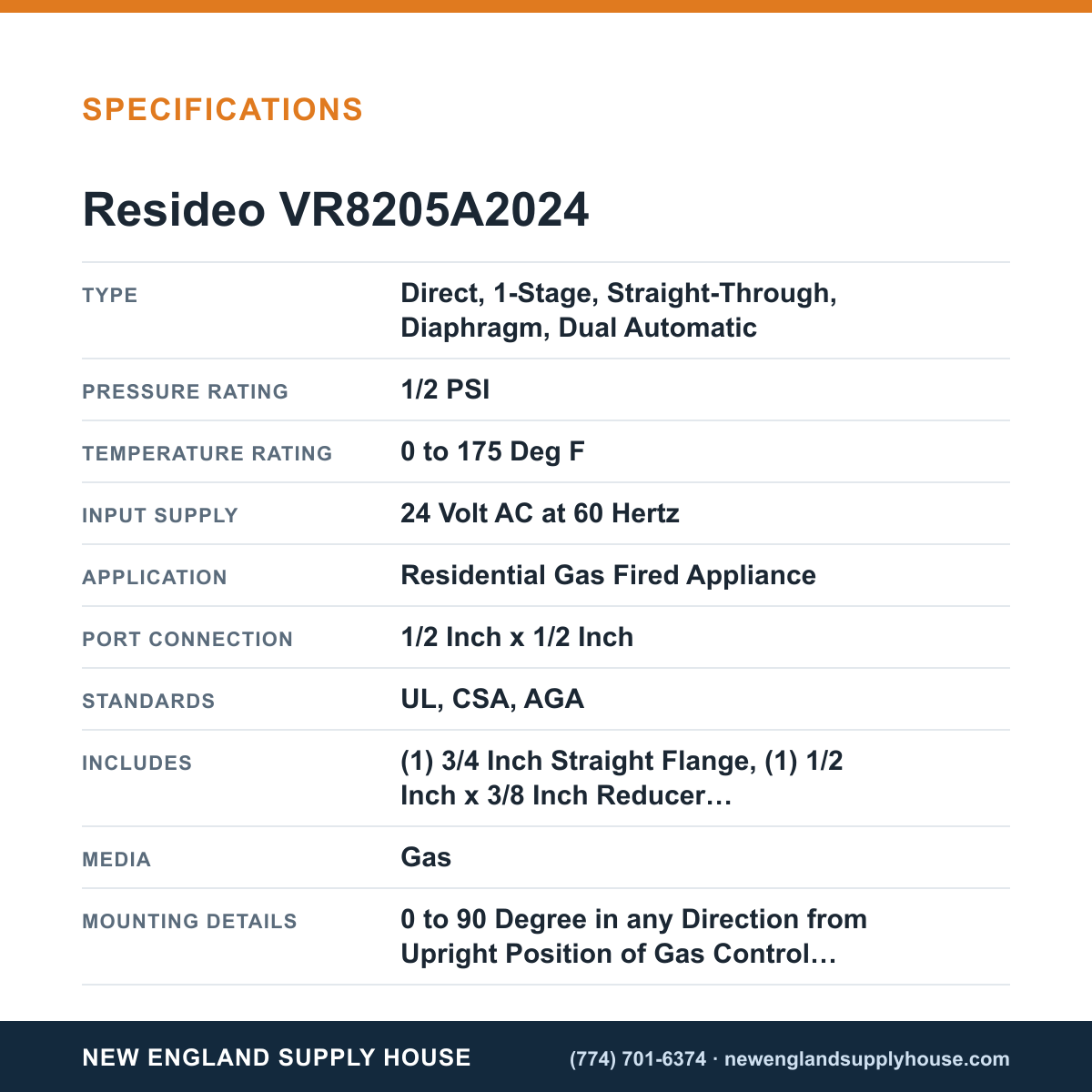

• Type: Direct-acting, 1-Stage, Straight-Through, Diaphragm, Dual Automatic for reliable control.
• Port Connection: 1/2" x 1/2" inlet/outlet for standard piping.
• Electrical: 24V AC, 60 Hz power; combines screws and 1/4" male quick connect.
• Mounting: 0–90° rotation from upright knob (including vertical) for flexible installation.
• Media: Gas; designed for residential gas-fired appliances.
• Inclusions: 3/4" straight flange, 1/2" x 3/8" reducer bushing, natural to LP conversion kit, manual valve, two automatic operators, pressure regulator, standard opening.
• Standards: UL, CSA, AGA compliance for safety and compatibility.
• Dimensions: 4-1/8" W x 2-11/16" D x 4-15/16" H.
• Pressure & taps: Regulator setting 3.5" WC; 1/8" threaded pressure tapping with plug.
