Resideo - Honeywell Home VR8304M3509 Solenoid Gas Valve

Solenoid Gas Valve for residential gas-fired appliances, the Resideo Honeywell Home VR8304M3509 delivers precise control with reliability. This Intermittent Pilot Operated, 1-Stage, Straight-Through diaphragm valve is designed for safe, efficient operation in furnaces, water heaters, and other gas appliances.

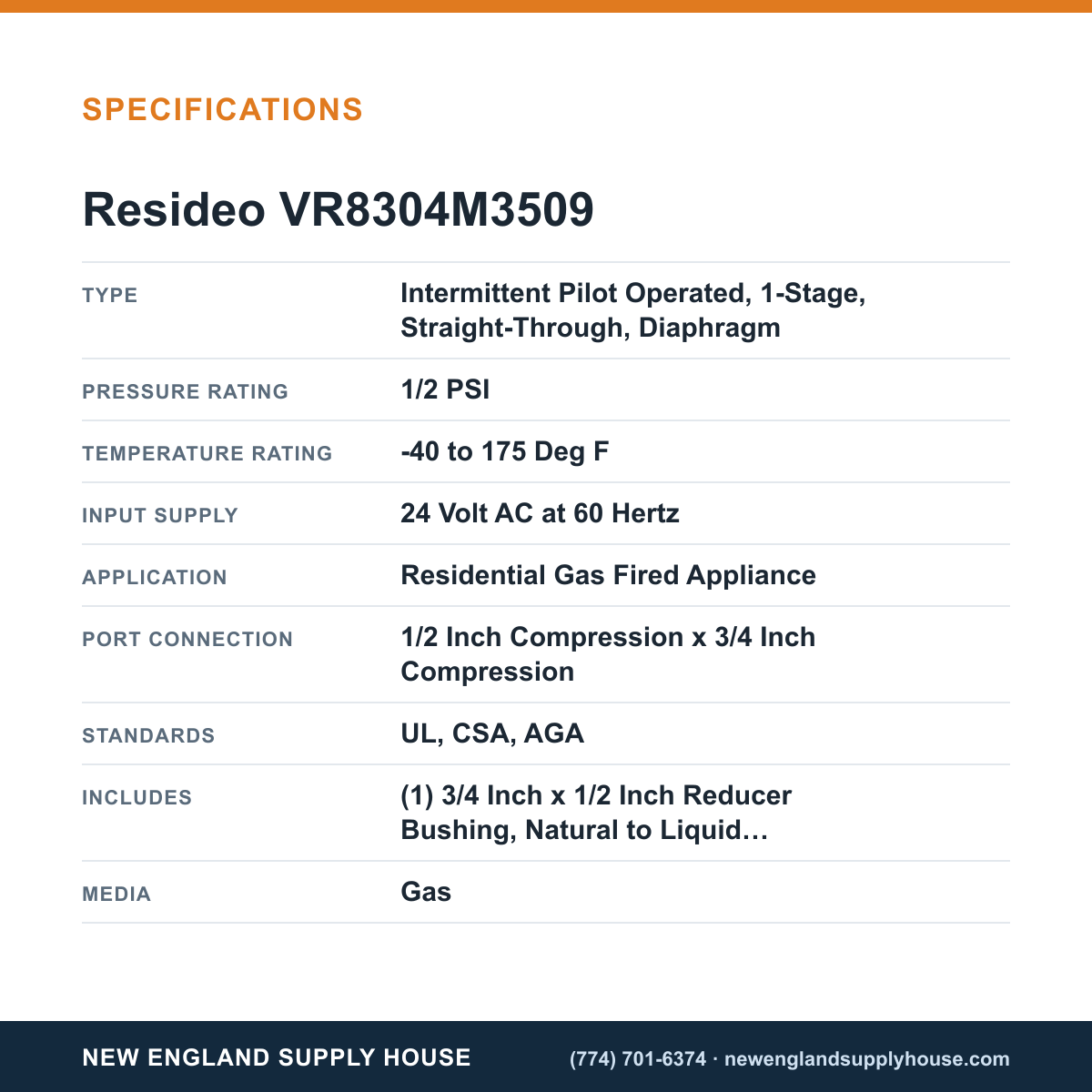

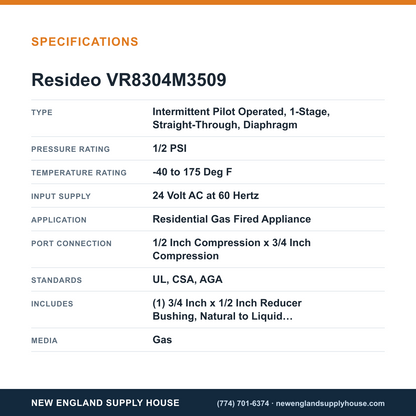

Key specs include a 24 Volt AC, 60 Hz input, port connections of 1/2 inch compression x 3/4 inch compression, a wide operating temperature range from -40 to 175°F, and a 1/2 psi pressure rating. It supports mounting 0 to 90 degrees from the upright gas control knob, providing flexible installation in tight spaces.

• Intermittent Pilot Operated, 1-Stage diaphragm design for reliable gas control
• Port connections: 1/2" x 3/4" compression
• Low-voltage operation with 24V AC, 60 Hz input
• Includes safety shut-off, manual valve, automatic operator, and pressure regulator
• UL, CSA, AGA listed for residential gas-fired appliances

Designed for residential gas-fired appliances and approved to UL, CSA, and AGA standards, this compact valve measures about 4-1/16 in W x 2-11/16 in D x 5-3/8 in H and supports a flow capacity of 30–415 CFH. The pressure tapping size is 1/8" threaded with plug, and electrical connections use a combination screw and 1/4" male quick-connect for straightforward wiring.
