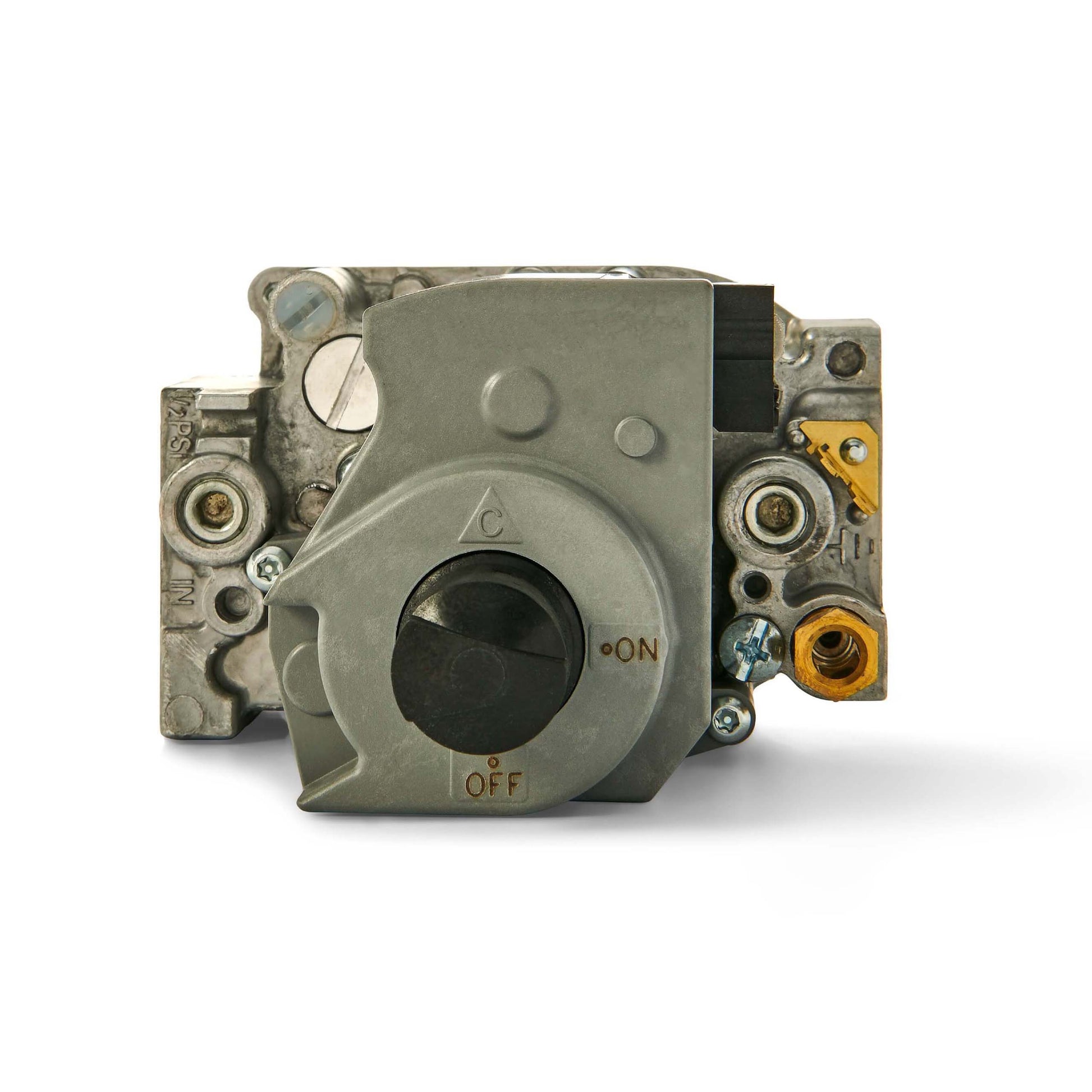

Resideo - Honeywell Home VR8304P4504 Solenoid Gas Valve

< p>Solenoid Gas Valve VR8304P4504 by Resideo Honeywell Home delivers reliable, intermittent-pilot operation for residential gas-fired appliances. The 1-stage, diaphragm-type valve features straight-through flow and is designed for safe, precise control of liquid propane gas.

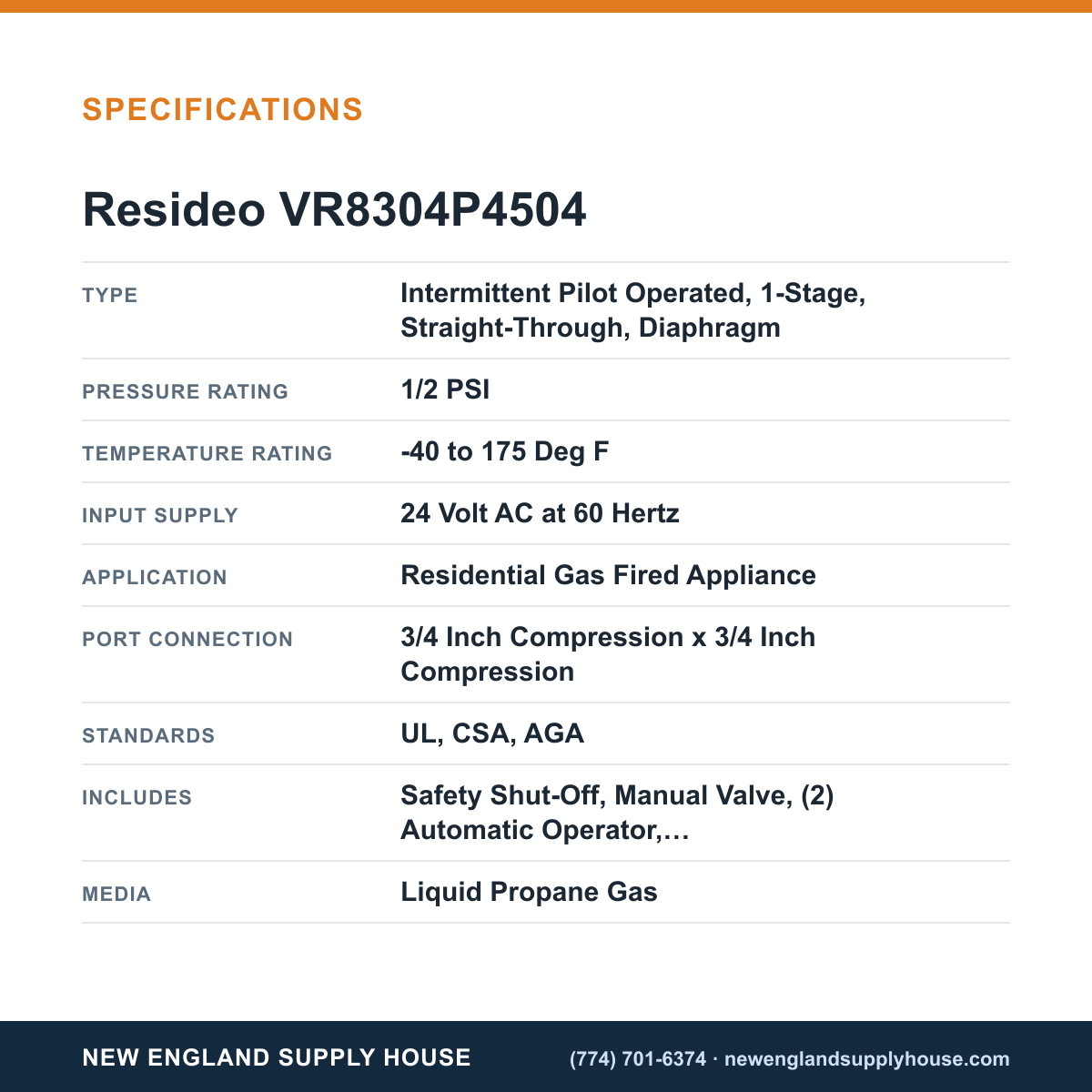

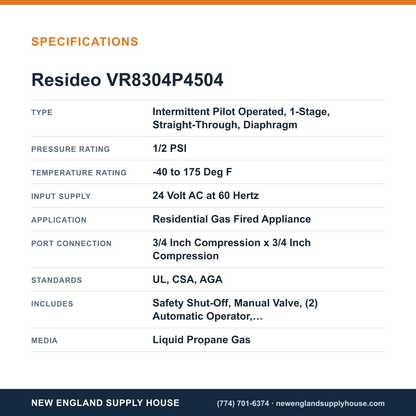

Key specifications include 3/4 inch compression x 3/4 inch compression port connections, 24 VAC at 60 Hz input, a wide operating temperature of -40 to 175°F, and a 1/2 psi pressure rating. The valve mounts 0 to 90 degrees from the upright gas control knob, including vertical installations, and is compatible with residential propane systems.

Inclusions/Features include safety shut-off, manual valve, two automatic operators, a pressure regulator, pilot adjustment, standard opening, and low voltage operation. It is designed for residential gas-fired appliances and is UL, CSA, and AGA listed. Overall dimensions are 4-1/16 inches wide by 2-11/16 inches deep by 5-3/8 inches tall, with a pressure regulator setting of 10 Inch WC and a 1/8 inch threaded pressure tapping (with plug). Flow capacity ranges from 30 to 415 CFH, and the electrical connection uses a combination screw and 1/4 inch male quick connect.

• Intermittent pilot operated design for efficient ignition
• 1-stage, diaphragm valve with reliable straight-through flow
• 3/4" compression inlet/outlet connections
• 24 VAC at 60 Hz power supply
• Suitable for liquid propane gas in residential setups
