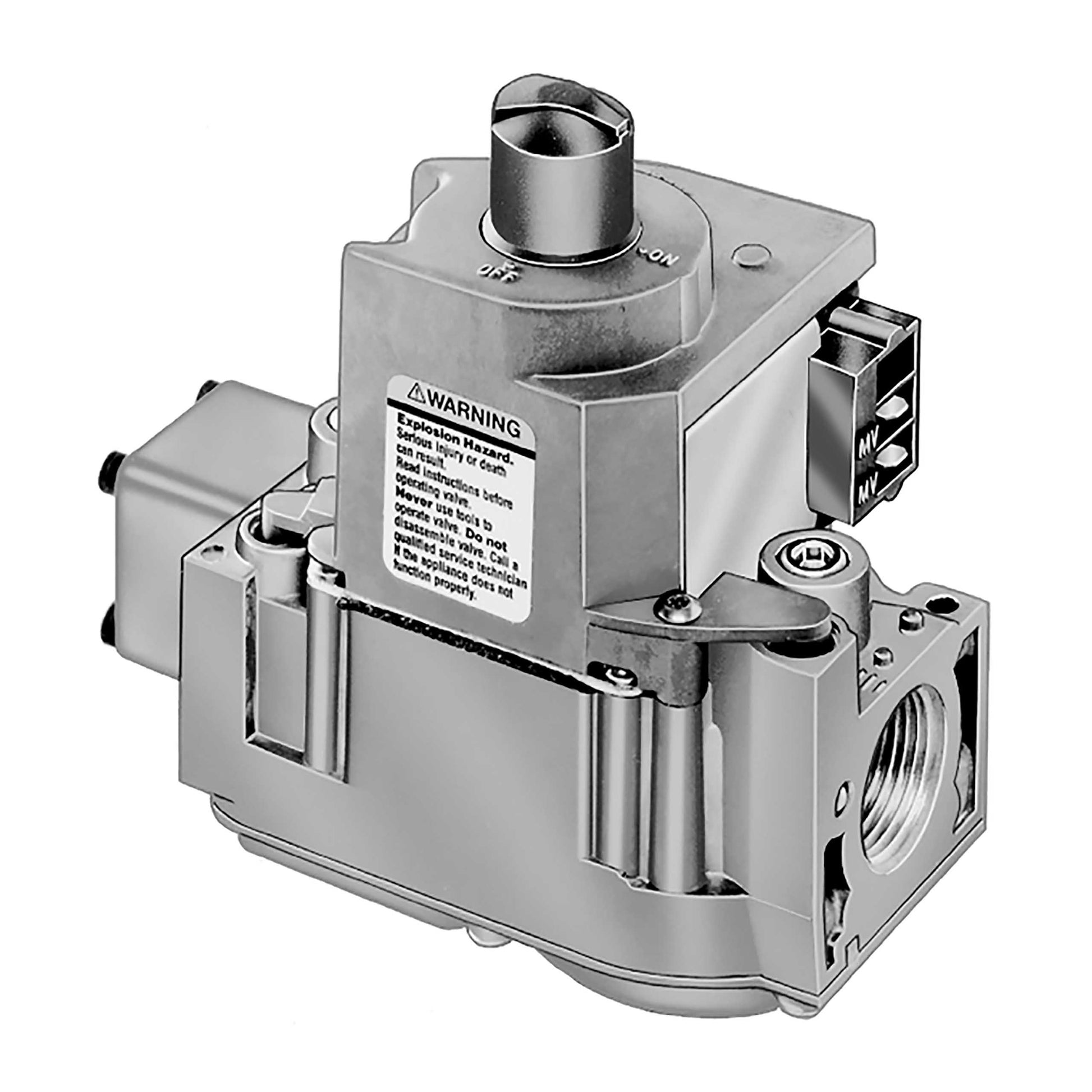

Resideo - Honeywell Home VR8305P2224 Combination Gas Control Valve

Resideo - Honeywell Home VR8305P2224 Combination Gas Control Valve is a robust gas control valve designed for residential gas-fired appliances. This Type 1-Stage, Step Opening, Dual valve uses a 1/2 inch nominal size with threaded end connections for straightforward installation. Equipped with a 24 Volt AC, 60 Hz solenoid and diaphragm actuator, it delivers precise control from -40 to 175°F and supports heating equipment up to 500,000 BTU/hour with a 1/2 psi operating rating.

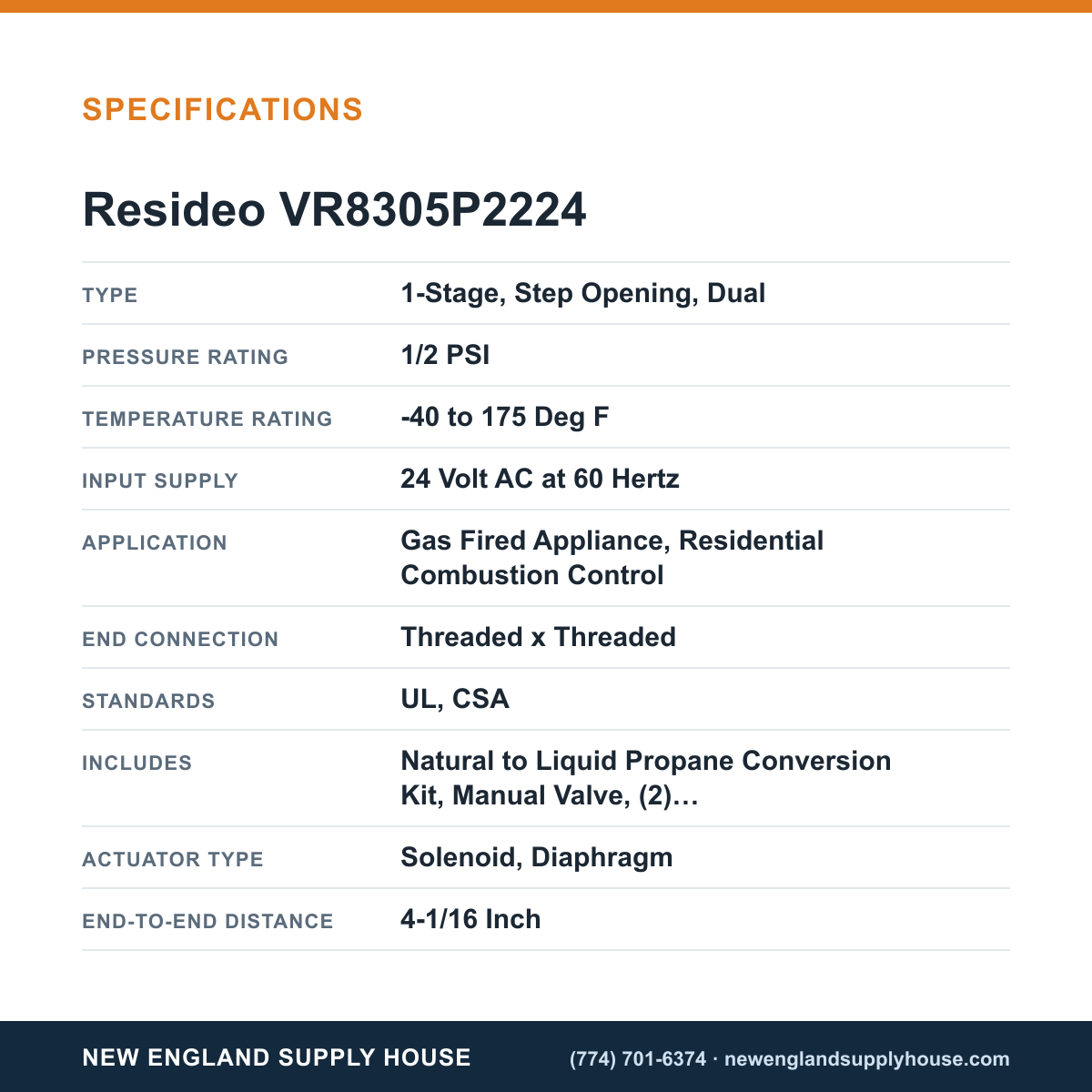

• Type: Type 1-Stage, Step Opening, Dual
• Size & Connections: Nominal Size 1/2 Inch; End Connection Threaded x Threaded
• Electrical & Ignition: Input Supply 24V AC @ 60 Hz; Actuator: Solenoid, Diaphragm; Ignition: Direct Ignition
• Inclusions: Propane Conversion Kit; Manual Valve; (2) Automatic Operators; Pressure Regulator
• Application & Certification: For Gas Fired Appliances; Residential Combustion Control; UL, CSA Certified
• Capacity & Environment: 240,000–500,000 BTU/hr; Temperature -40°F to 175°F
• Pressure & Mounting: Pressure Regulator Set Point 10 Inch WC; Pressure Tapping 1/8 Inch Threaded; Mounting 0–90° Vertical Installation
• Physical: End-to-End Distance 4-1/16"; Depth 2-11/16" x Height 5-3/8"
