Resideo - Honeywell Home ZD8X20TZ Zone Control Damper

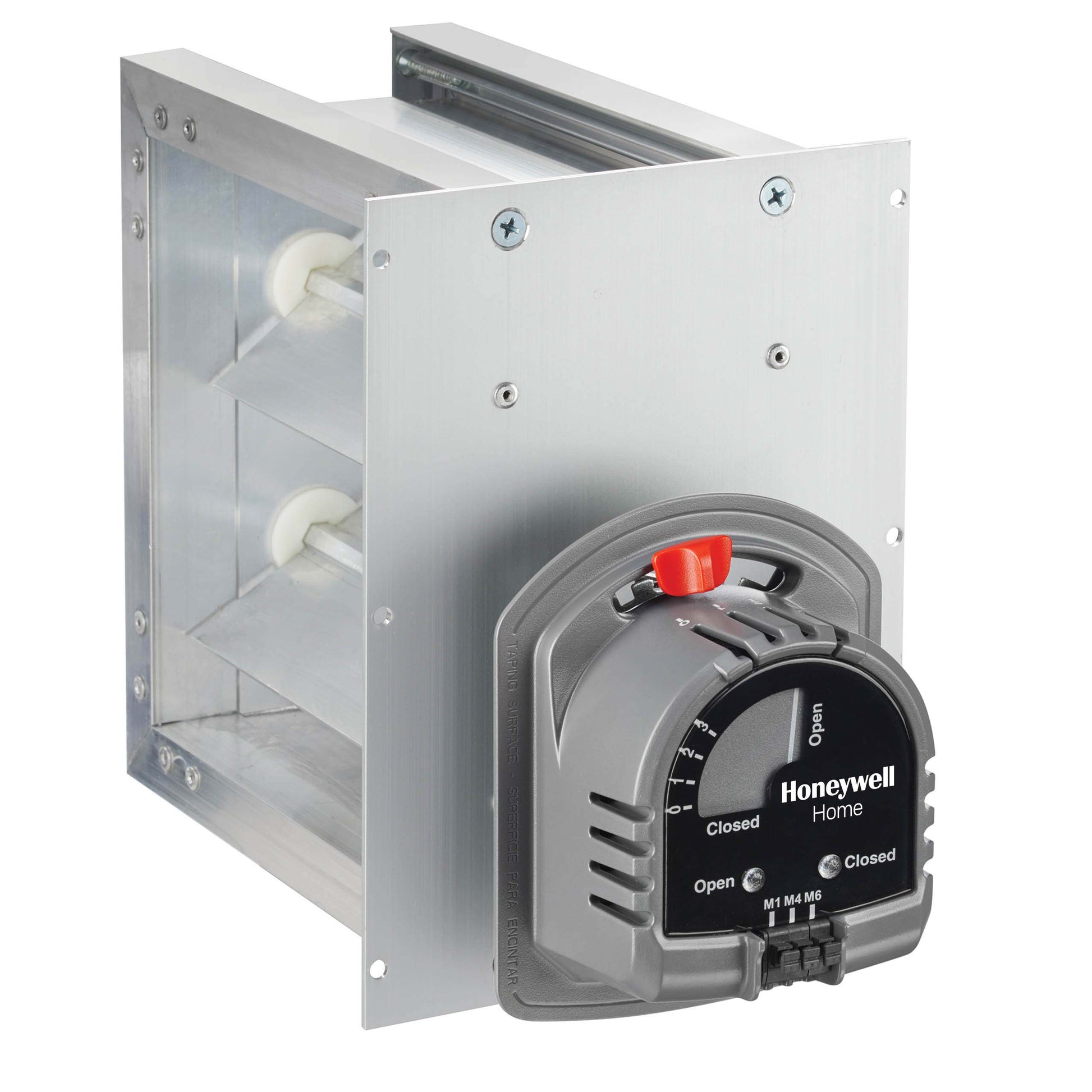

The Zone Control Damper ZD8X20TZ by Resideo – Honeywell Home delivers precise airflow control for your HVAC system. This Rectangular, Parallel Blade damper is designed for 8 x 20 ductwork and built with extruded aluminum blades for lasting durability. Featuring fail-safe operation with spring return and a mechanical visual position indicator, it offers reliable performance and quick status checks in tight ceiling or mechanical spaces.

Powered by a 24V AC motor at 60 Hz with 71 in-oz torque, it provides smooth, dependable actuation and a 90-degree rotation for full openness. With a temperature range of 40 to 140°F and a maximum static pressure rating of 1 in WC, this damper maintains performance in variable building conditions. Its low pressure drop (<0.0329 in WC at 800 fpm) helps keep energy use minimal, while the bottom-mounted motor and power-closed, spring-open design ensure simple integration.

Wiring to motor terminals M1-Power, M6-Common, with optional M4 LED indication.

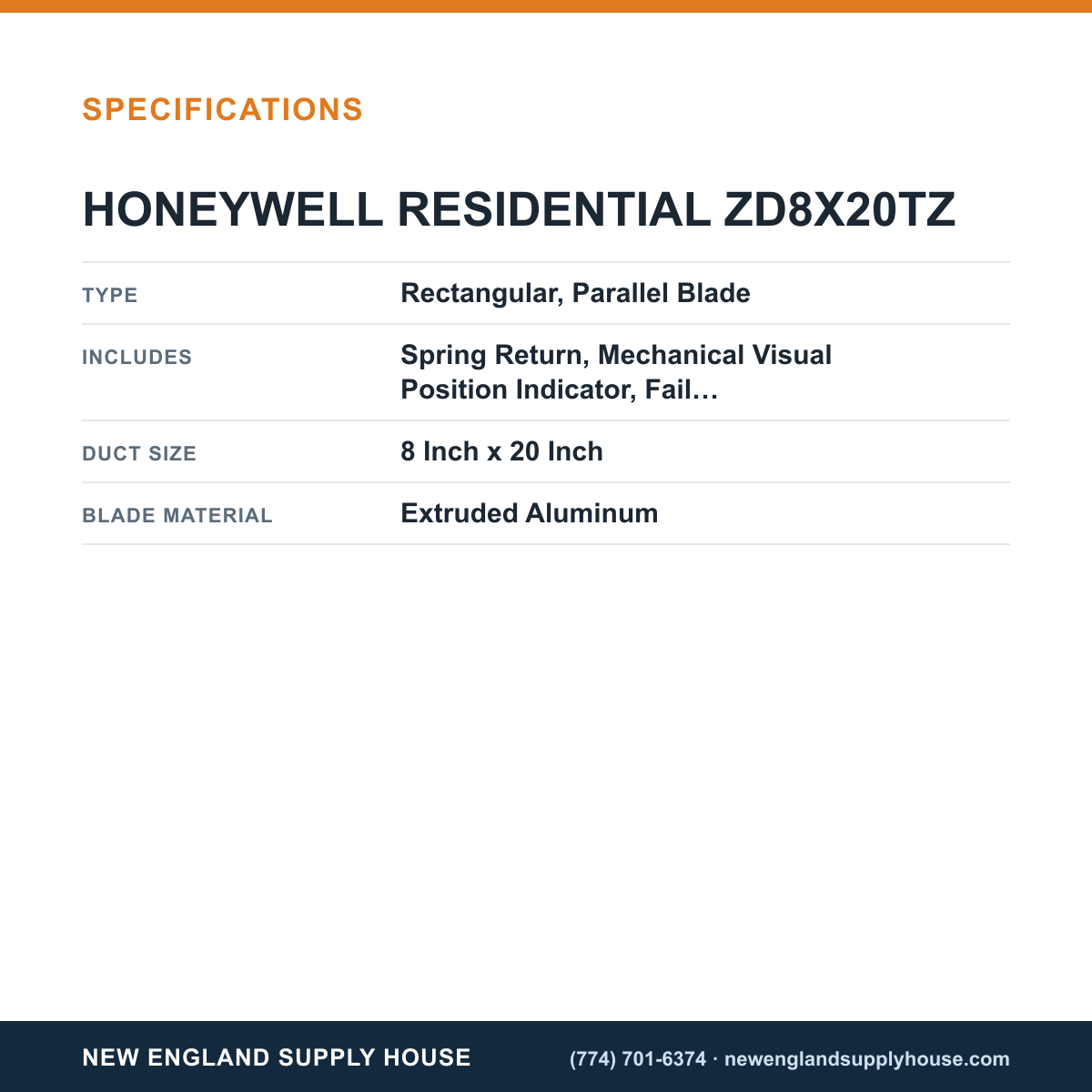

• Application: Parallel blade damper for HVAC zoning in rectangular 8x20 ductwork.
• Construction: Extruded aluminum blades for durability and corrosion resistance.
• Actuation: 24V AC motor, 90° rotation; power closed, spring open.
• Inclusions: Spring return, fail-safe operation, mechanical visual position indicator, normally open.
• Performance: Temperature 40–140°F; max static pressure 1 in WC; pressure drop <0.0329 in WC at 800 fpm.
• Installation: Bottom motor mounting; LED indication wiring via M1/M6; optional M4.
