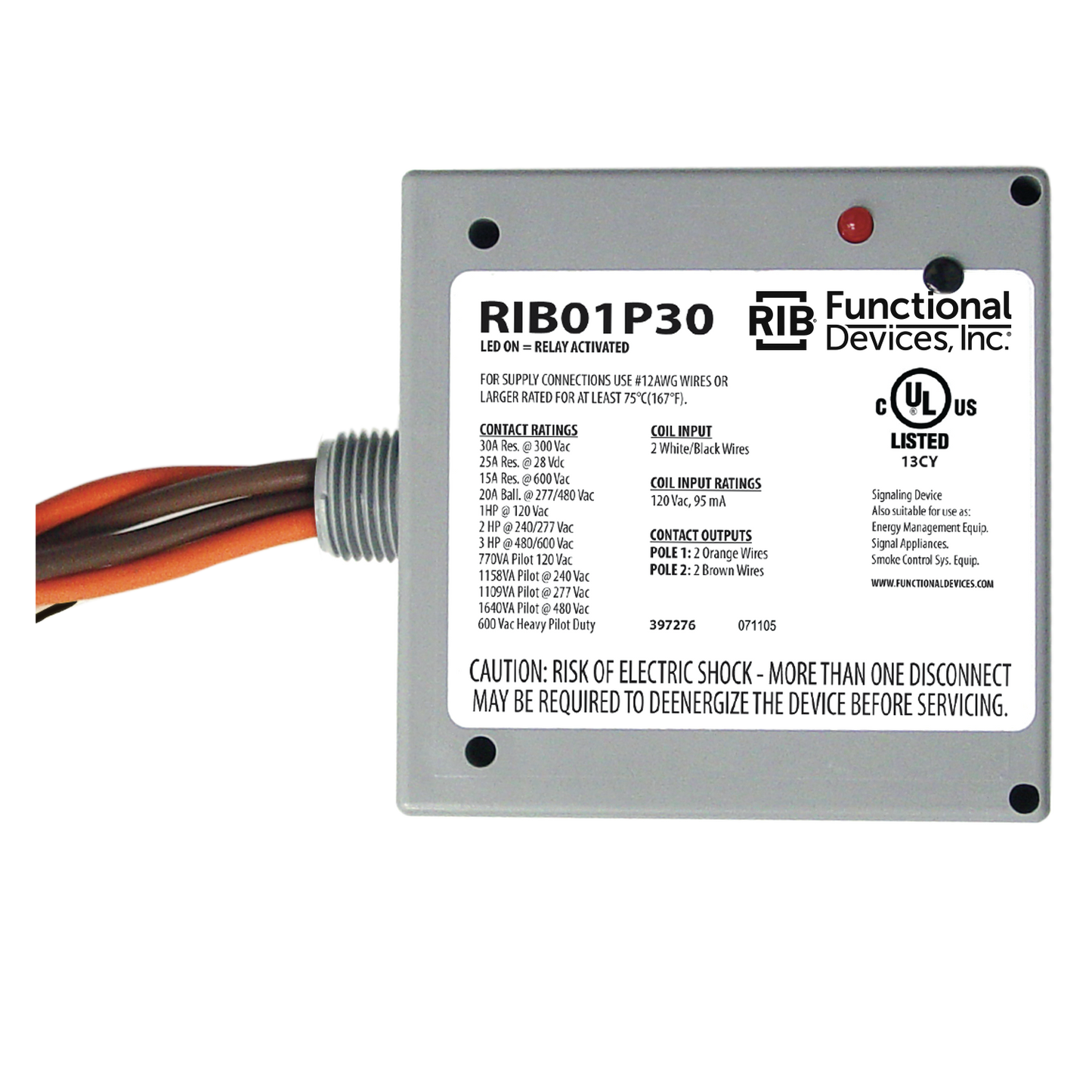

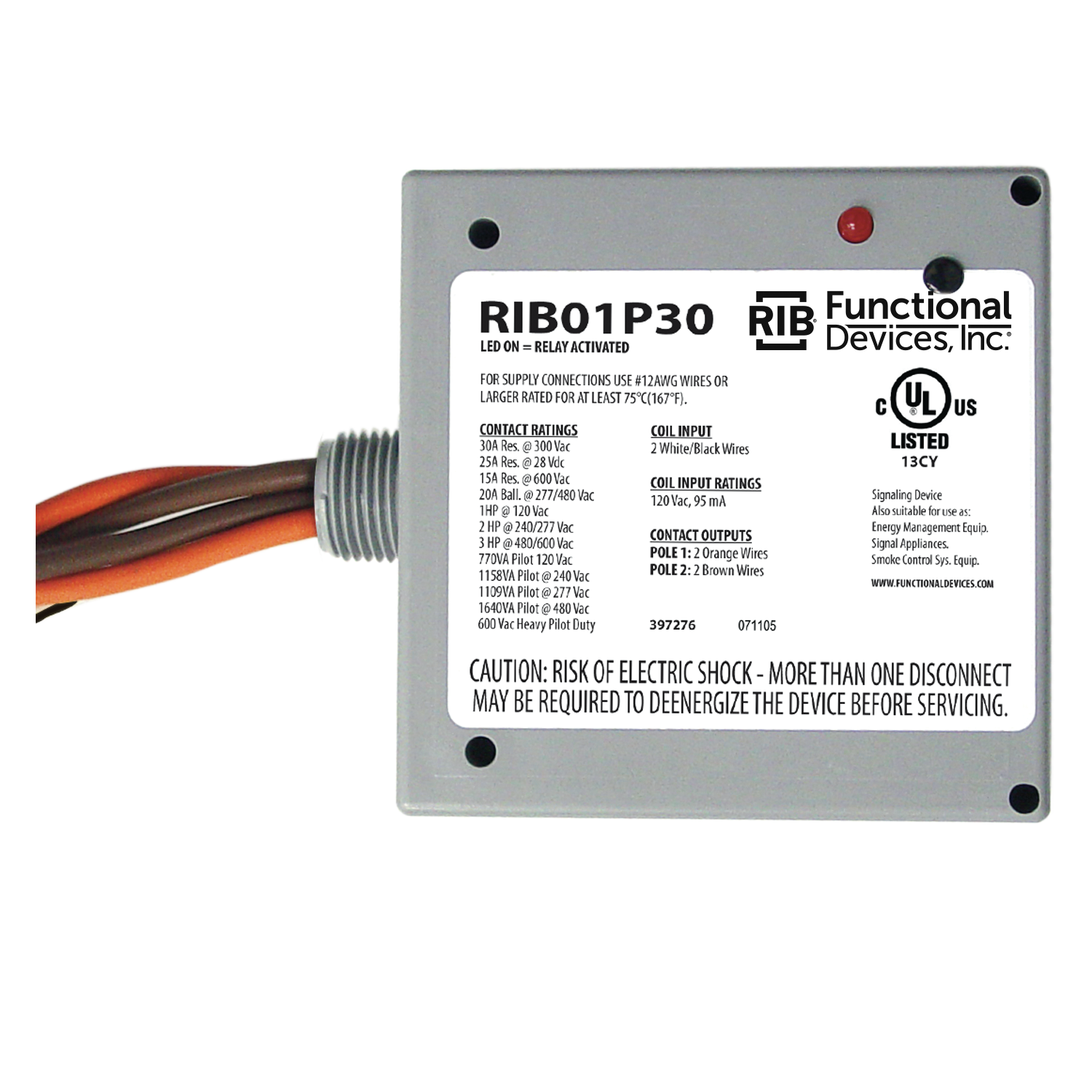

RIB Relays RIB01P30 Enclosed Power Control Relay

The RIB01P30 Enclosed Power Control Relay delivers robust, UL-listed control for industrial circuits in a compact NEMA 1 enclosure. This AC-operated relay uses a 120 Volt AC coil (50/60 Hz) and a DPDT contact configuration, ideal for switching motors, ballast, and pilot-duty loads.

Built for rugged industrial environments, the RIB01P30 offers broad voltage and load versatility with resistive contacts up to 15/25/30 A and 28 VDC, ballast up to 480 VAC, and pilot duty up to 600 VAC. With a 1/2–3 HP rating and an 18 ms operate time, it ensures fast, dependable control. An integrated LED provides immediate status, and the unit ships with 16 inches of 600-volt-rated wire and a 0.5 inch threaded nipple for straightforward mounting. It tolerates wide operating temperatures (-30 to 140°F) and humidity (5–95%).

• Coil voltage: 120 VAC at 50/60 Hz (105 mA)
• Contact configuration: DPDT with resistive ratings 15/25/30 A and 28 VDC
• Load versatility: ballast 277–480 VAC; pilot duty 120–600 VAC
• Enclosure and approvals: NEMA 1; UL/CUL/UL Canada & US, CE; RoHS compliant
• Performance: 1/2–3 HP; 18 ms operate time
• Physical specs and extras: 4" W x 1.8" D x 4" H; LED indicator; 16" 600V-rated wire; 0.5" threaded nipple
• Environment: operating temp -30 to 140°F; 5–95% humidity
