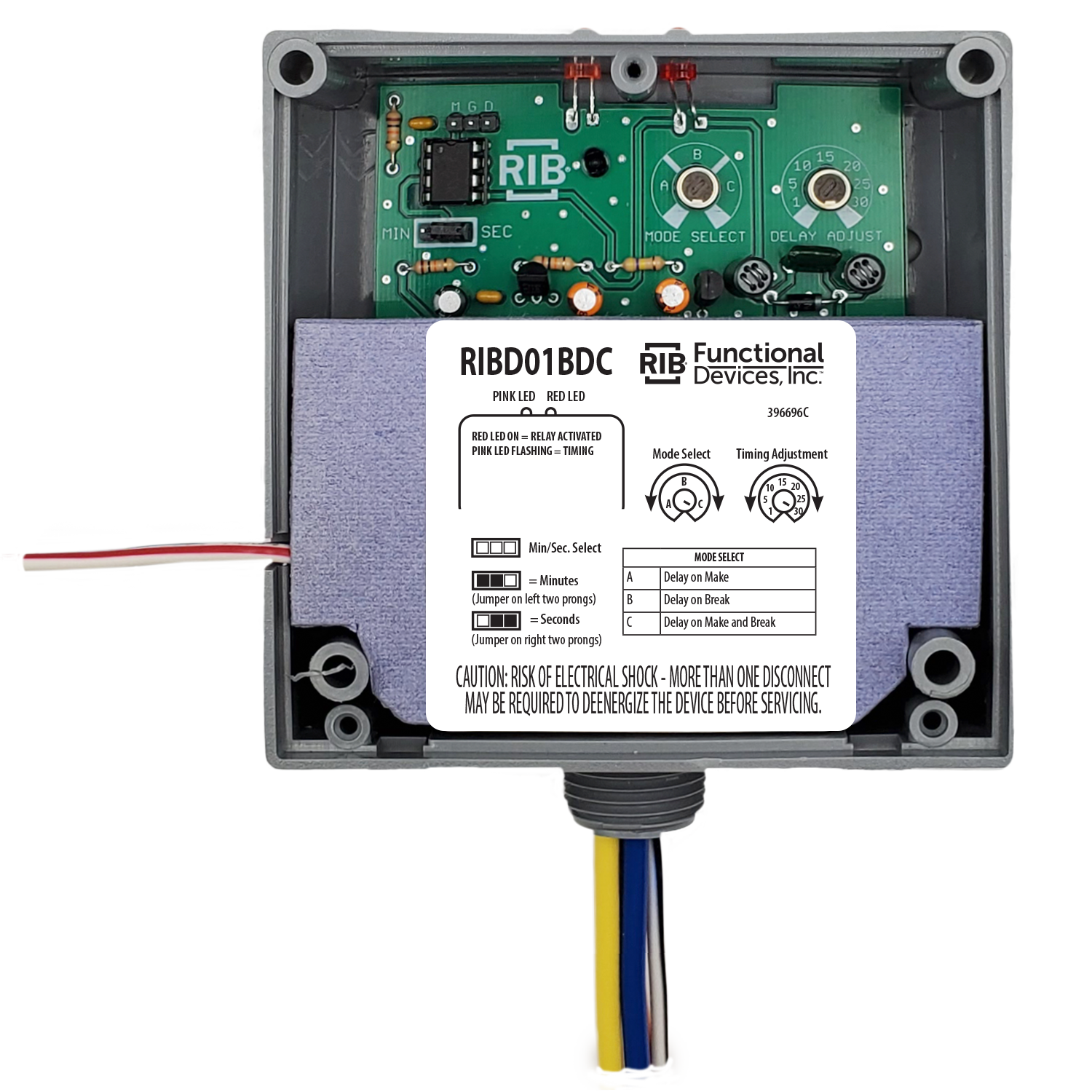

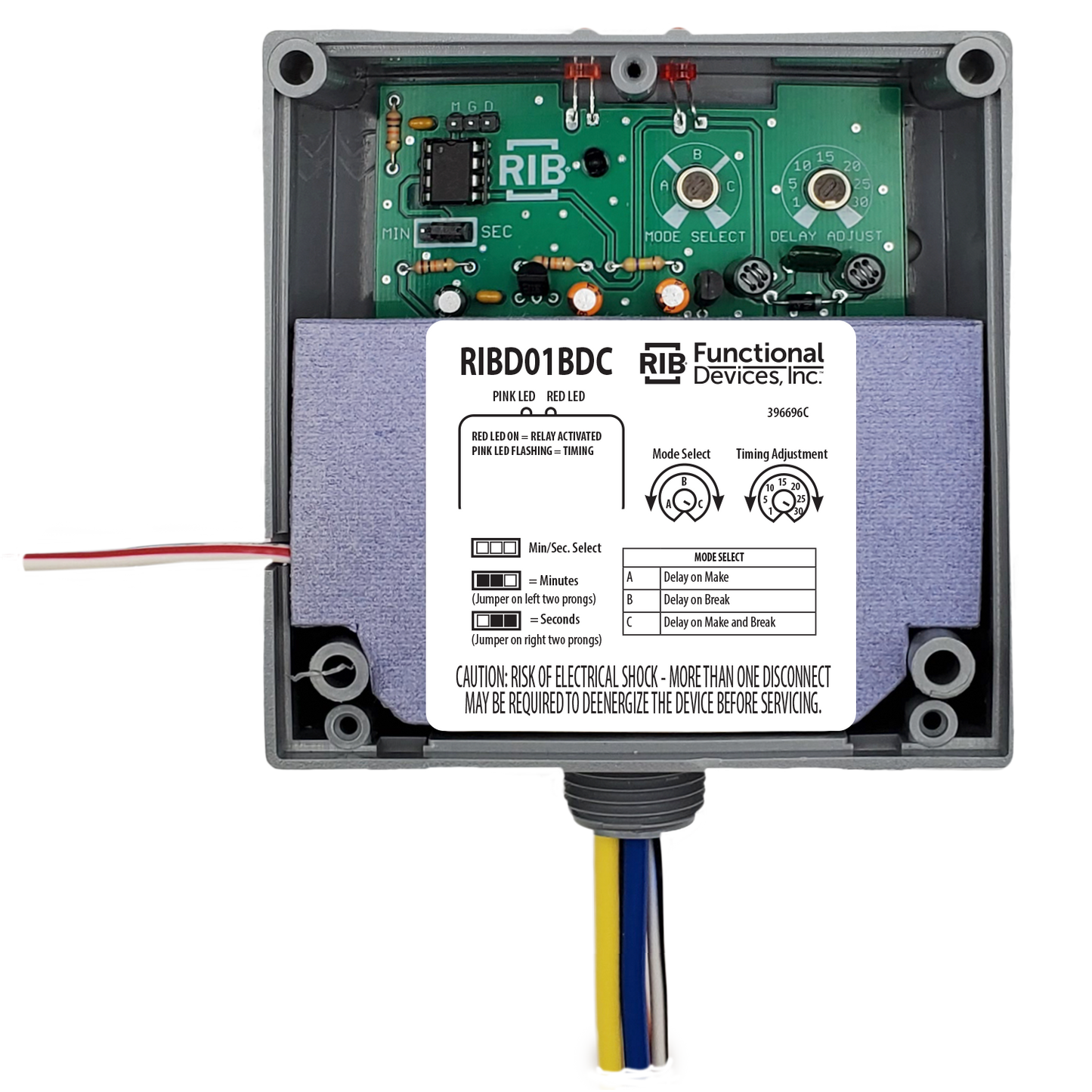

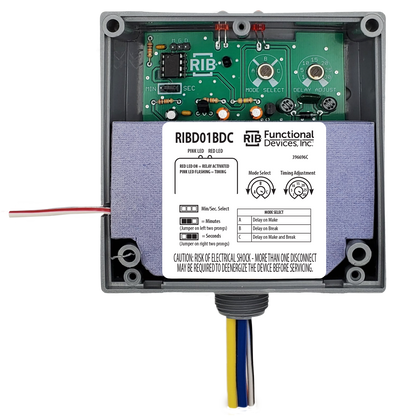

RIB Relays RIBD01BDC Enclosed Time Delay Relay

Enclosed Time Delay Relay—the RIBD01BDC from RIB Relays provides precise timing and dependable control in a compact, UL-listed enclosure.

Enclosed Time Delay Relay operates on 120 VAC coil voltage with SPDT contacts and robust ratings for 277 VAC and 120/277 VAC service, making it ideal for panel integration.

Designed for control panels, this unit includes an LED indicator to show status and ships with 16 inches of 600V-rated wire and a 0.5-inch threaded nipple for easy mounting.

• Coil Voltage: 120 VAC; Coil current 42 mA
• Contact Configuration: SPDT
• Contact Ratings: 20 A (Resistive); 16/20 A (Ballast); 10 A (Tungsten)
• Voltage Handling: 277 VAC (Resistive); 277 VAC (Ballast); 120/277 VAC (Pilot Duty); 120 VAC (Tungsten)
• Enclosure: NEMA 1
• Approvals: UL 916/864, CUL; UL (Canada & US), CE; RoHS compliant
• Power & Timing: 770–1110 VA (Pilot Duty); 1/2 HP; Operate Time 18 ms
• Environmental: -30 to 140°F; 5–95% humidity
• Physical: 4" W x 1.8" D x 4" H
• Inclusions: LED, 16" wire, 0.5" threaded nipple
