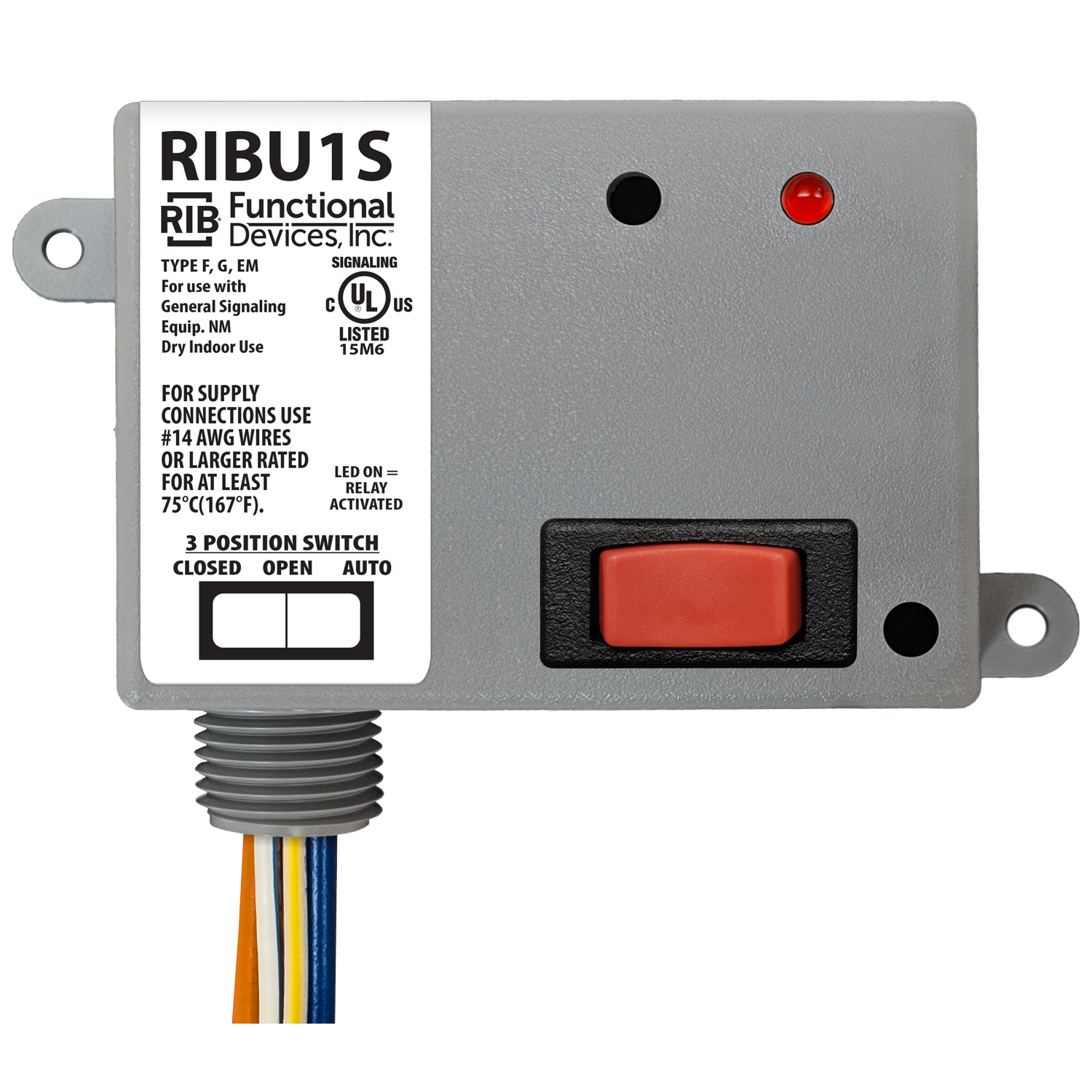

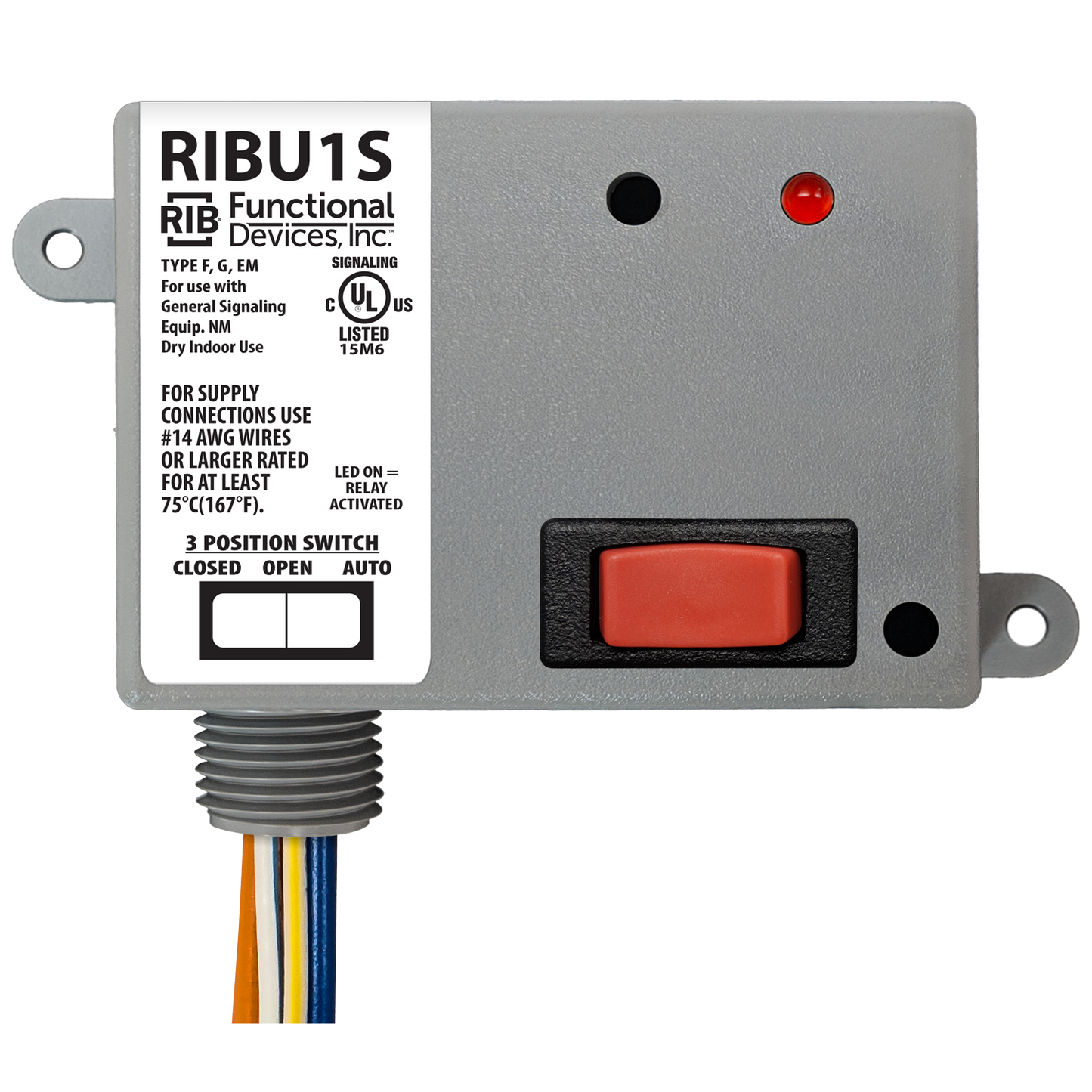

RIB Relays RIBU1S Enclosed Pilot Control Relay

The RIBU1S Enclosed Pilot Control Relay is a compact, reliable solution for pilot control in industrial automation. This AC/DC operated relay offers flexible coil voltages—10–30 VAC (50–60 Hz), 120 VAC, or 10–30 VDC—to adapt to your control system. Housed in a NEMA 1 enclosure and backed by UL 916/864, CUL, UL (Canada/US), and CE approvals, it protects wiring while delivering safe, dependable operation in demanding environments.

• Configuration and rating: SPST, NO; 10 A resistive; supports 120–240 VAC NO/NC and 277 VAC variants (including ballast, pilot, tungsten loads).
• Coil and efficiency: AC/DC operated with coil current of 28 mA at 120 VAC; versatile coil voltages (10–30 VAC, 120 VAC, 10–30 VDC).
• Enclosure and wiring: NEMA 1 enclosure; LED indicator; includes 16" 600 V-rated wire and a 0.5" threaded nipple.
• Performance: Operate time 20 ms; power rating 240/600 W (tungsten); 1/3 to 1/8 HP; operates from -30 to 140 F and 5–95% humidity.
• Compliance: RoHS compliant; approvals UL 916/864, CUL, UL (Canada/US), CE.
