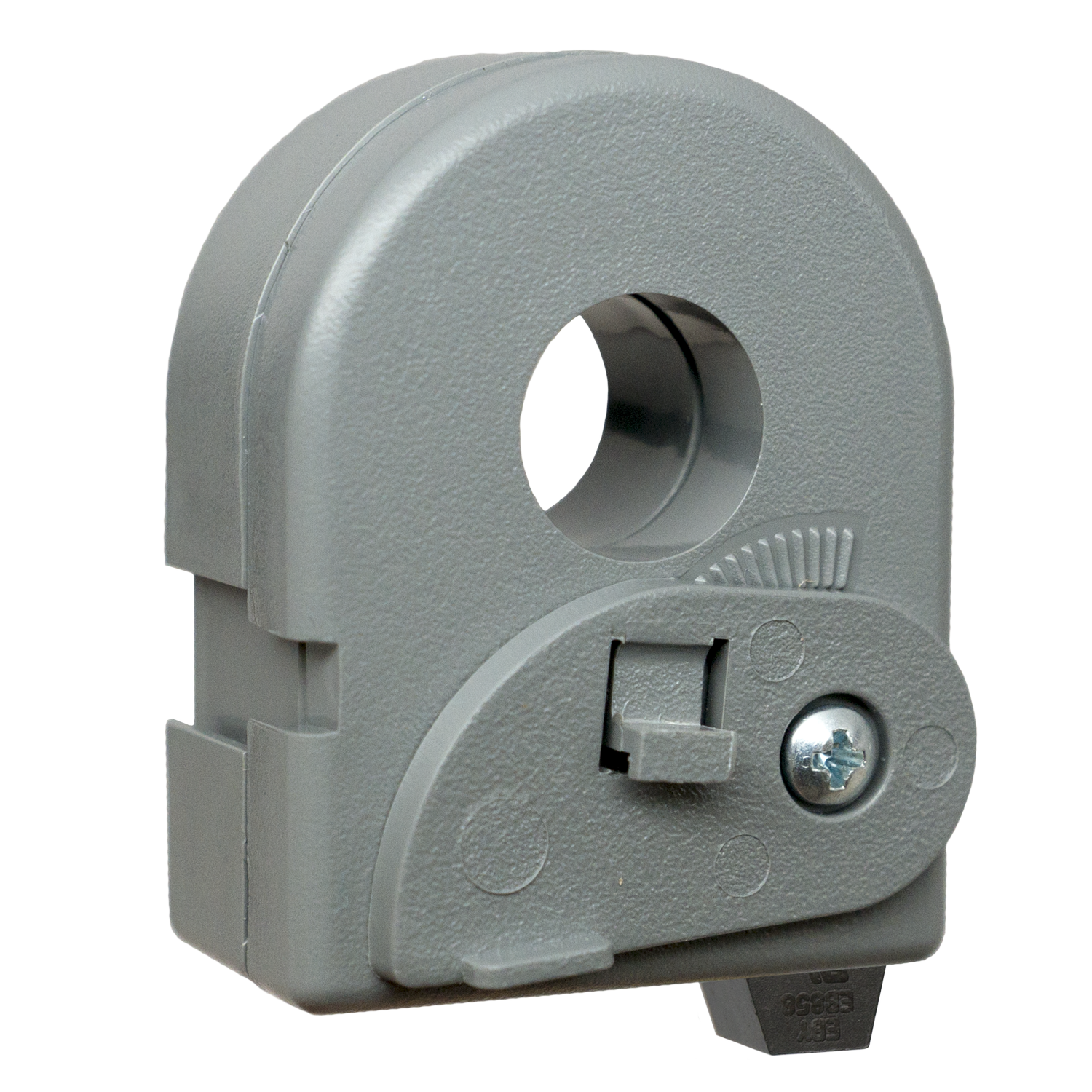

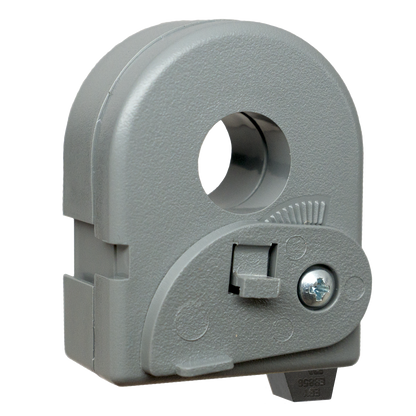

RIB Relays RIBXKTA Current Sensor

RIBXKTA Current Sensor from RIB Relays delivers precise, enclosed self-powered current sensing for building automation. Designed for both open-loop and closed-loop applications, this adjustable current switch covers a sensing range from 0.5 to 150 A to match a wide variety of loads.

With a 600 V AC rating and operating temperature from -30 to 140 °F, it delivers reliable performance in challenging environments. The unit provides a solid-state SPST output rated for switching up to 30 V AC/DC, and its compact footprint (1.46" W x 1.5" D x 2.05" H) fits tight panel spaces. Wiring accepts 22–14 AWG conductors.

Key specifications and approvals ensure dependable integration into modern control systems:

• Enclosed, self-powered solid core current sensor for durable installations
• Adjustable current switch for fine-tuned open/closed loop control
• Sensing range 0.5–150 A
• Voltage rating 600 V AC
• Output SPST solid-state switch, 30 V AC/DC switching
• Dimensions 1.46"W x 1.5"D x 2.05"H
• Wiring terminals for 22–14 AWG
• Environment -30 to 140 °F and non-condensing humidity
• Certifications UL (Canada/US), UL 916/864, CUL, CE; RoHS compliant
