Robertshaw 5600-311 Electric Thermostat
Robertshaw 5600-311 Electric Thermostat
Low stock: 2 left
Couldn't load pickup availability
SKU:20069
View full details
![Robertshaw 5600-311 Electric Thermostat — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032995438814.png?v=1782847791&width=1445)
Robertshaw 5600-311 Electric Thermostat delivers precise temperature control for domestic and commercial water heating. This high-limit thermostat is designed for reliable safety and efficiency, featuring SPST/DPST snap-acting switching and a temperature range of 120 to 160°F.
The unit supports versatile voltage and current requirements, with 120–250/277/480 VAC ratings for thermostat control and 277/480/120 to 480 VAC for ACHi-Limit control. It handles 30 A at 120–250 VAC, 22 A at 277 VAC, 12.5 A at 480 VAC (thermostat control) and 40 A at 277 VAC, 25 A at 480 VAC (ACHi-Limit control). Power is suitable for pilot duty up to 125 VA, delivering 3600 W at 120 VAC and 7200 W at 240 VAC.
- Type: High Limit / Thermostat Control with SPST/DPST, Snap Acting
- Voltage & Current: 120–250 VAC, 277 VAC, 480 VAC; 30 A (thermostat) / 40 A (ACHi-Limit)
- Temperature Range: 120–160°F
- Power Rating: 125 VA pilot duty; 3600 W at 120 V; 7200 W at 240 V
- Approvals: UL, CSA
- Applications: Domestic and commercial water heaters

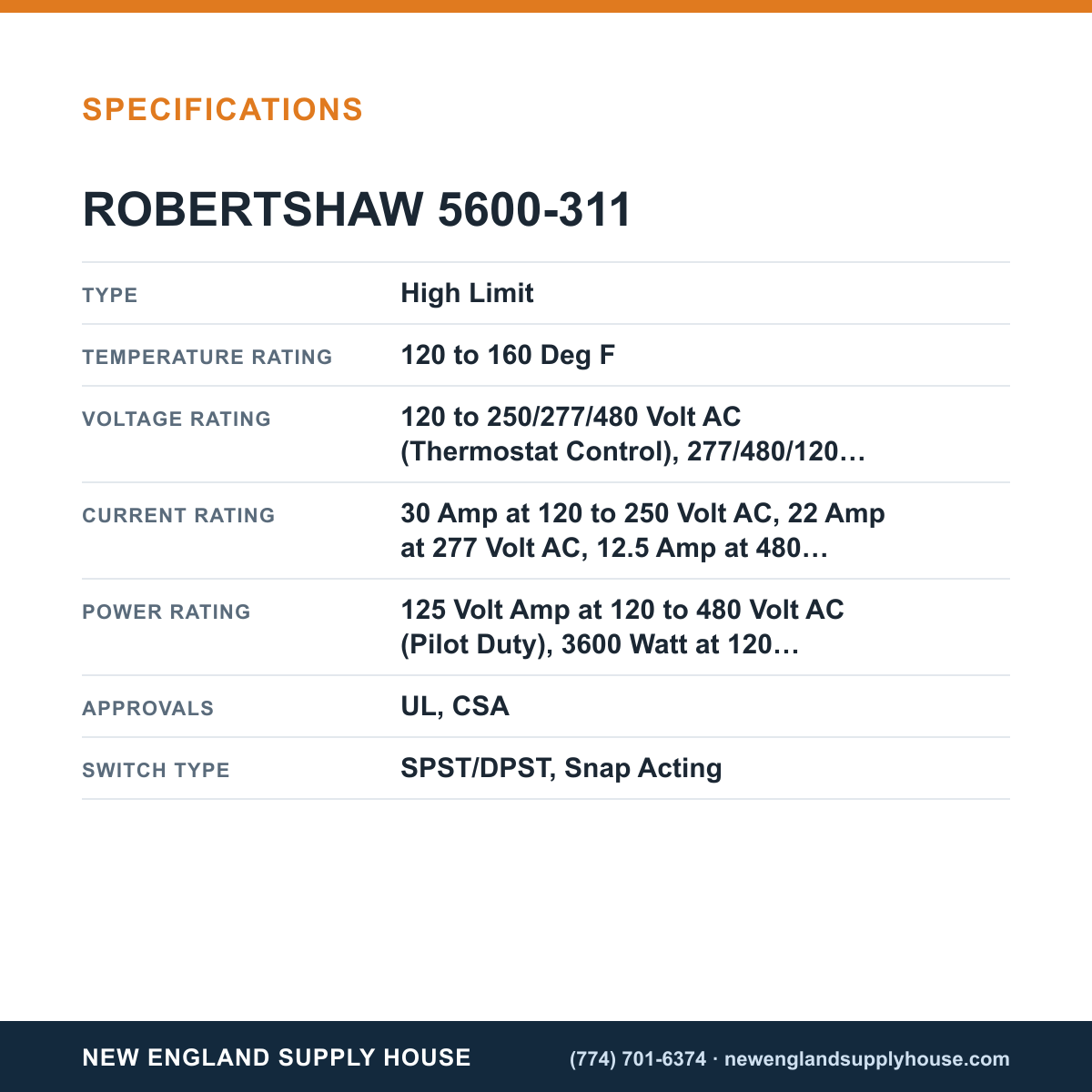

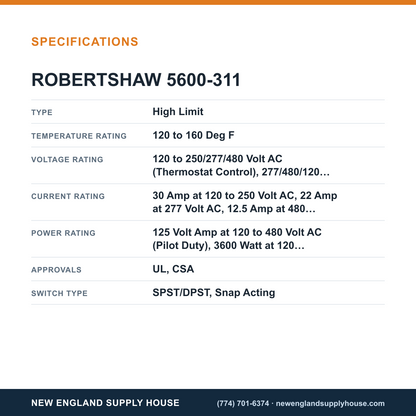

Specifications
| Type | High Limit |
|---|---|
| Temperature Rating | 120 to 160 Deg F |
| Voltage Rating | 120 to 250/277/480 Volt AC (Thermostat Control), 277/480/120 to 480 Volt AC (ACHi-Limit Control) |
| Current Rating | 30 Amp at 120 to 250 Volt AC, 22 Amp at 277 Volt AC, 12.5 Amp at 480 Volt AC (Thermostat Control), 40 Amp at 277 Volt AC, 25 Amp at 480 Volt AC (ACHi-Limit Control) |
| Power Rating | 125 Volt Amp at 120 to 480 Volt AC (Pilot Duty), 3600 Watt at 120 Volt AC, 7200 Watt at 240 Volt AC |
| Approvals | UL, CSA |
| Switch Type | SPST/DPST, Snap Acting |
