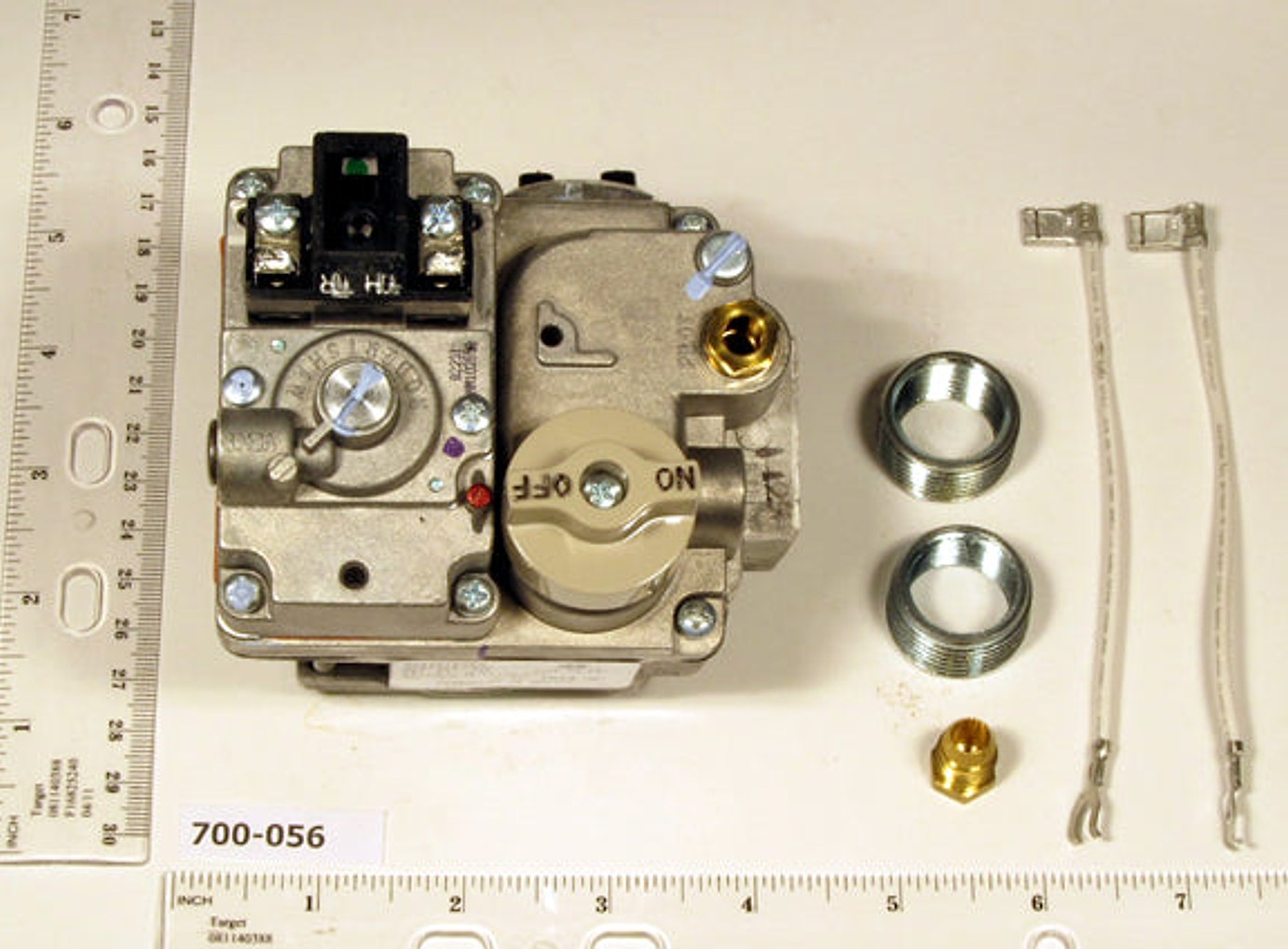

Robertshaw 700-056 Gas Valve

The Robertshaw 700-056 gas valve is a versatile control solution for hot surface and direct spark ignition systems. This 3/4 Inch nominal size valve supports intermittent pilot operation and is ideal for residential and commercial heating setups.

It runs on 24 Volt AC at 60 Hz, with a 1/2 psi gas pressure rating and a natural gas pressure regulating setting of 3.5 inches of water column, ensuring reliable performance across heating appliances. The inlet includes a filtered screen to protect internal components and extend valve life, pairing well with central heating units, wall heaters, boilers, and mobile home furnaces.

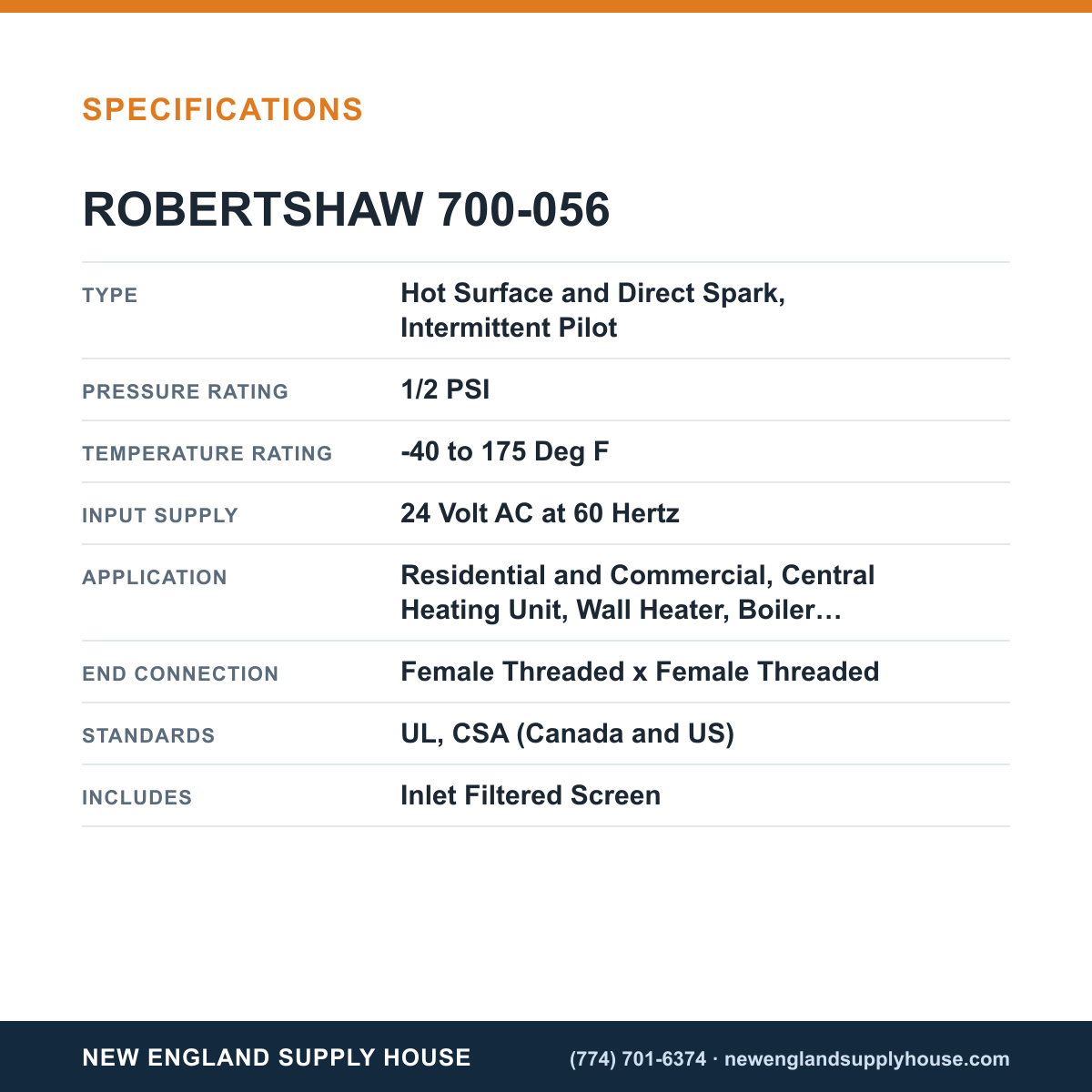

• Nominal size: 3/4 Inch; End Connection: Female Threaded x Female Threaded
• Ignition options: Hot Surface ignition and Direct Spark with Intermittent Pilot
• Electrical: Input Supply 24 Volt AC at 60 Hz
• Temperature range: -40 to 175 Deg F
• Gas pressure: 1/2 psi; Pressure Regulating Setting 3.5 Inch WC (Natural Gas)
• Inlet filtration: Filtered screen
• Compliance: UL, CSA; RoHS compliant
• Capacity: Up to 350,000 BTU/Hour
